Exhaust Manifold RH: Installation

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. Position the RH exhaust manifold onto the engine and finger-tighten the nuts.
2. Tighten the nuts in the sequence shown.

   Torque: Stage 1: 18 lb.ft (24 Nm) | Stage 2: 24 lb.ft (32 Nm)

Fig 1: RH Exhaust Manifold Tightening Sequence

Courtesy of FORD MOTOR COMPANY

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

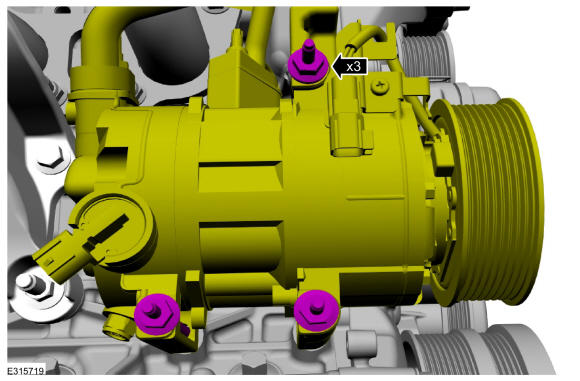

Torque: Bolts: 41 lb.ft (55 Nm) Stud bolts: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

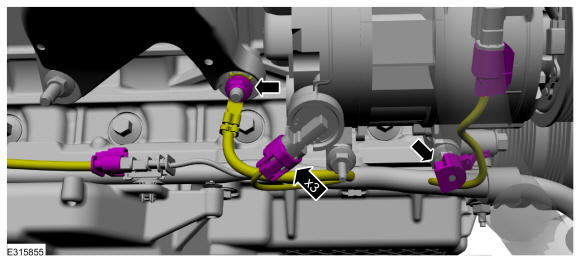

1. Attach the wiring harness retainers.
2. Connect the wiring harness electrical connectors.
3. Install the ground cable and the nut.

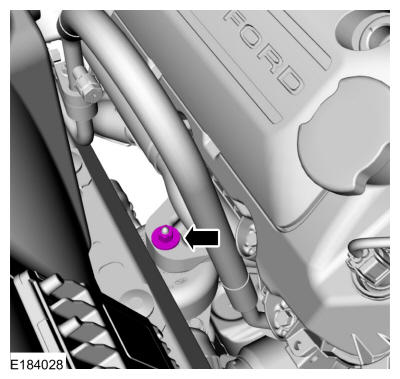

   Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

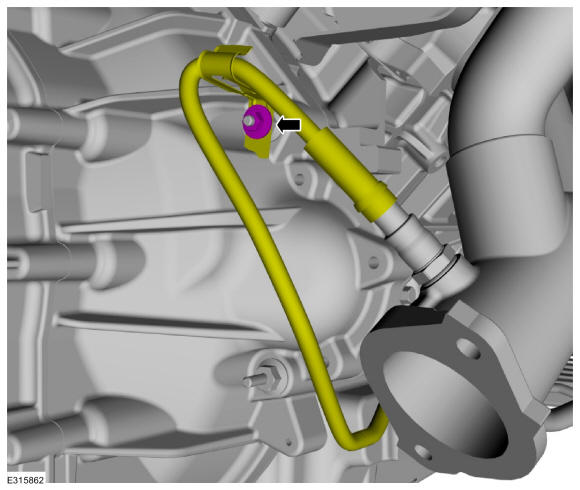

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

1. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .
2. RH catalytic converter. Refer to: Catalytic Converter RH .
3. Engine front undershield. Refer to: Engine Front Undershield - GT500 .

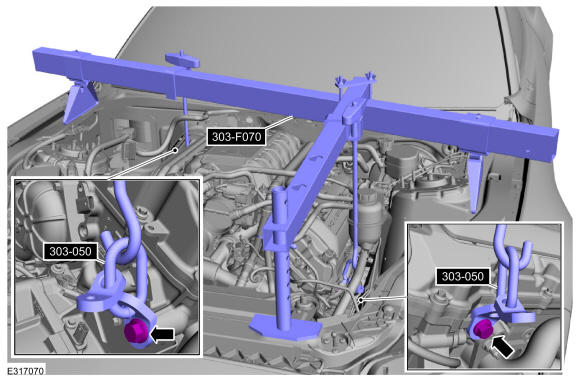

Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

• Install the CMP sensor and the bolt.

  Torque: 89 lb.in (10 Nm)

• Attach the wiring harness retainer.

• Connect the exhaust CMP sensor electrical connector and slide the insulator down.

Courtesy of FORD MOTOR COMPANY

Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. Battery tray. Refer to: Battery Tray .
2. Supercharger belt. Refer to: Supercharger Belt .
3. Air cleaner. Refer to: Air Cleaner .
4. Air cleaner outlet pipe.
5. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
6. Hood. Refer to: Hood .
