Engine Mount RH: Installation

WARNING: This page is about a different variant/trim than selected.

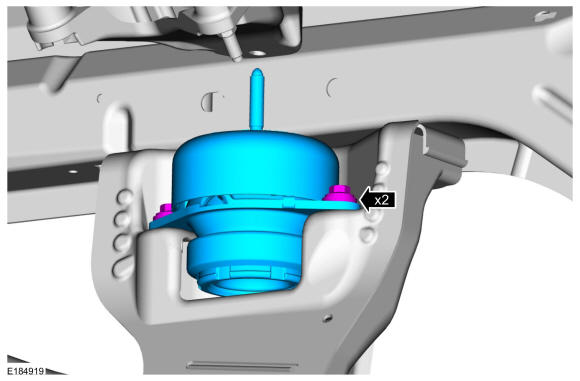

Install the engine mount and bolts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH engine mount bracket and the fasteners.
Torque: Bolts: 41 lb.ft (55 Nm) Stud bolts: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

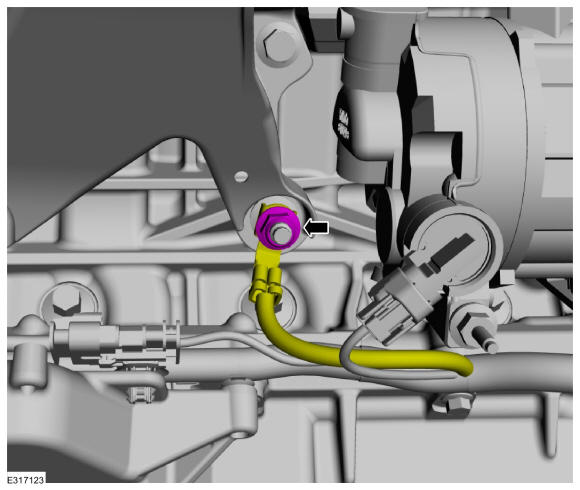

Install the ground cable and the nut.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .
2. Engine front undershield. Refer to: Engine Front Undershield - GT500 .

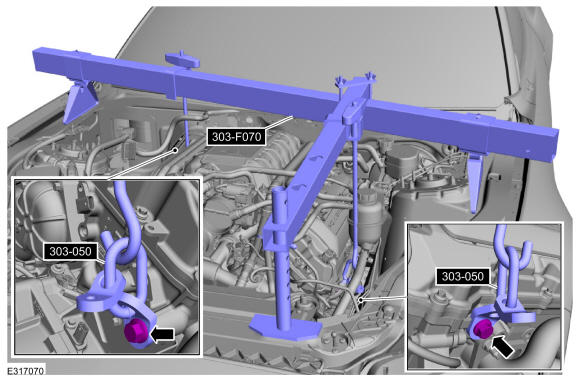

Lower the engine onto the engine mounts and remove the special tools Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Install the RH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

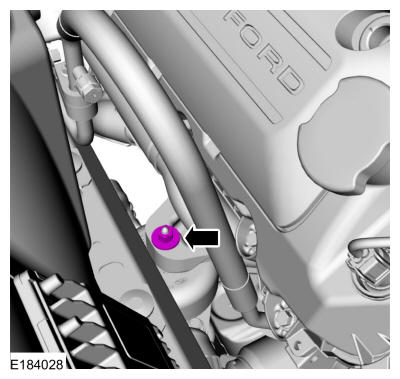

- Install the CMP sensor and the bolt.
  Torque: 89 lb.in (10 Nm)
- Attach the wiring harness retainer.
- Connect the exhaust CMP sensor electrical connector and slide the insulator down.
Courtesy of FORD MOTOR COMPANY
Install the battery heat shield and fasteners.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Battery tray. Refer to: Battery Tray .
2. Air cleaner. Refer to: Air Cleaner .
3. Air cleaner outlet pipe.
4. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
5. Hood. Refer to: Hood .
Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
