Engine Mount LH: Installation

WARNING: This page is about a different variant/trim than selected.

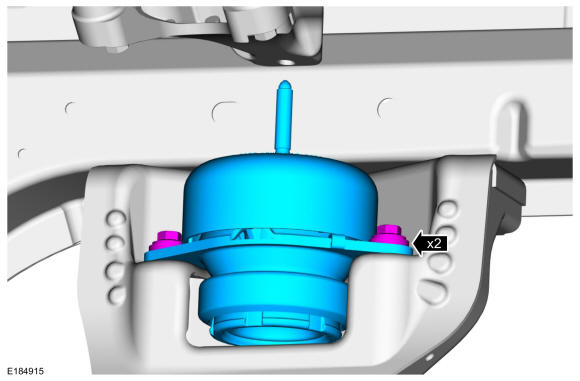

Install the engine mount and the bolts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

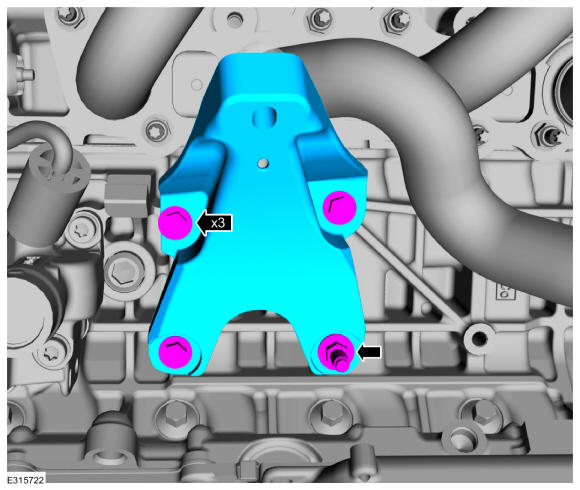

Install the LH engine mount bracket and the fasteners.
Torque: Bolts: 41 lb.ft (55 Nm) Stud bolt: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
1. Connect the steering column shaft to the steering gear universal joint.
2. Install the new steering column shaft bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .
Install the engine front undershield. Refer to: Engine Front Undershield - GT500 .

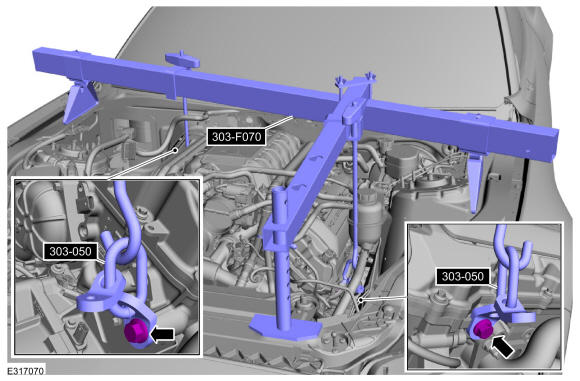

Lower the engine onto the engine mounts and remove the special tools Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

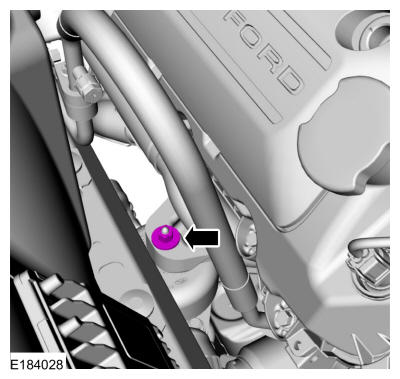

Install the RH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

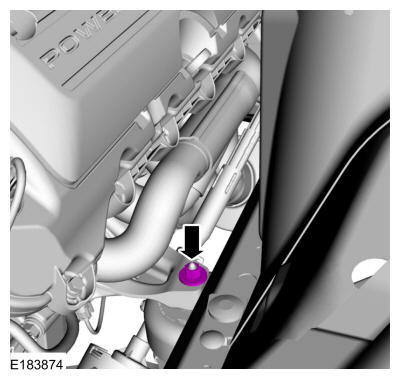

Install the LH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

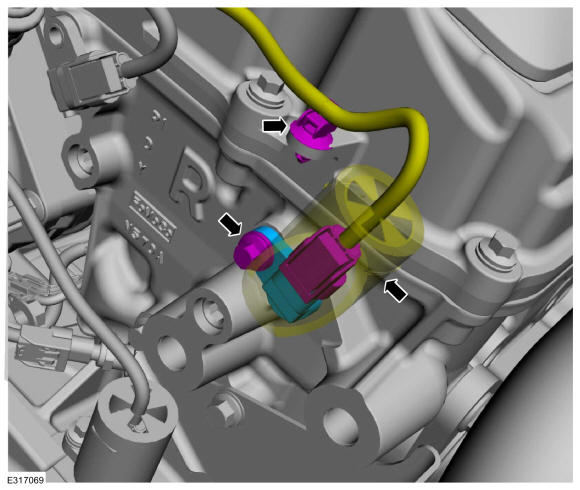

- Install the CMP sensor and the bolt.
  Torque: 89 lb.in (10 Nm)
- Attach the wiring harness retainer.
- Connect the exhaust CMP sensor electrical connector and slide the insulator down.
Courtesy of FORD MOTOR COMPANY

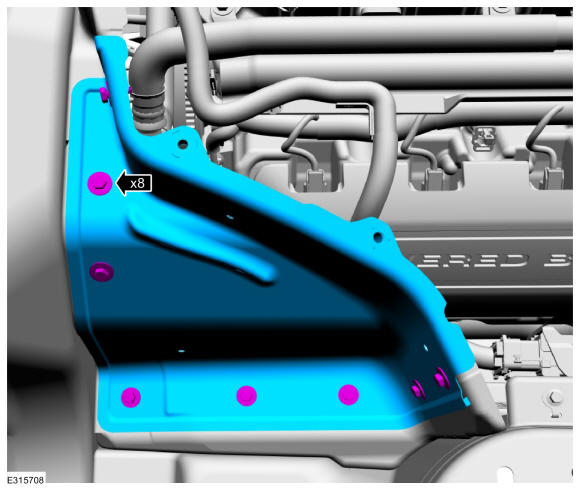

Install the battery heat shield and fasteners.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Battery tray. Refer to: Battery Tray .
2. Air cleaner. Refer to: Air Cleaner .
3. Air cleaner outlet pipe.
4. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
5. Hood. Refer to: Hood .
Remove the holding device.

Courtesy of FORD MOTOR COMPANY
1. Position the steering column dash seal.
2. Tighten the steering column dash seal nuts.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
