Crankshaft Pulley: Installation
WARNING: This page is about a different variant/trim than selected.

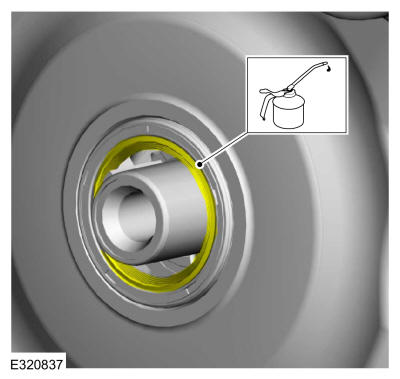

- Lubricate the crankshaft front oil seal inner lip with clean engine oil.
-
NOTE: If not secured within 5 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.
Apply silicone sealant to the Woodruff key slot in the crankshaft pulley.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.
- Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1508 Installer, Front Crank Seal.
- Install the bolts.
Torque: 24 lb.ft (32 Nm)
- With the aid of an assistant, use a Strap Wrench to install a new crankshaft pulley bolt and the original washer. Use the General Equipment: Strap Wrench
Torque: Stage 1: 66 lb.ft (90 Nm) | Stage 2: Loosen: 360° | Stage 3: 129 lb.ft (175 Nm) | Stage 4: Tighten an additional : 90°
- Install the following items:
- Supercharger belt. Refer to: Supercharger Belt .
- Cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
- Engine front undershield. Refer to: Engine Front Undershield - GT500 .
- Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
