Crankshaft Front Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the crankshaft pulley. Refer to: Crankshaft Pulley .
-
-
NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

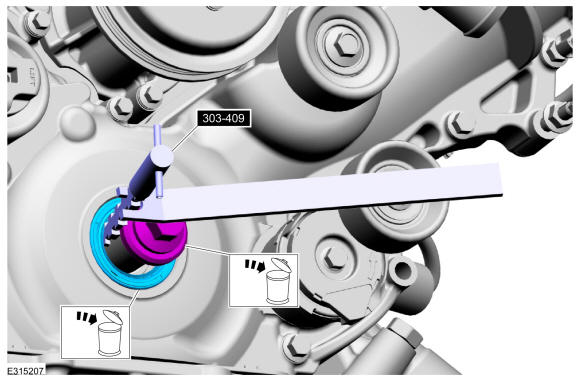

Using the special tool and the original crankshaft bolt, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
- Discard the crankshaft pulley bolt.
-
