Camshaft LH: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the components are to be reinstalled, they must be installed in their original locations.
1. Assemble the hydraulic lash adjusters onto the spring clips on the camshaft roller followers.
2. Lubricate the camshaft roller followers and hydraulic lash adjusters with clean engine oil.
3. Install the camshaft roller followers and hydraulic lash adjusters.
Courtesy of FORD MOTOR COMPANY

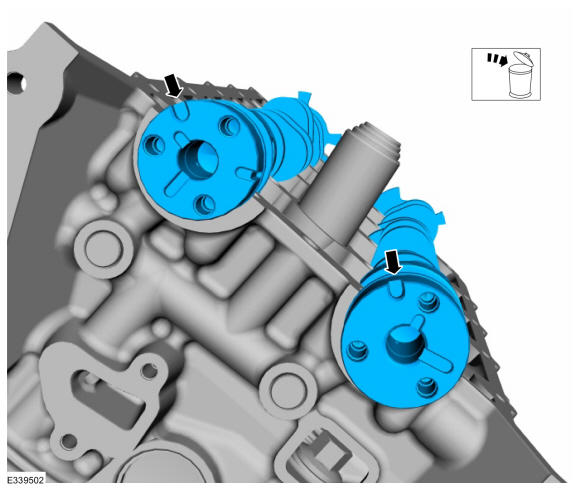

- Lubricate the camshaft journals and lobes with clean engine oil.
- Install the intake and exhaust camshafts and align the D-slots as shown in the illustration.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten at this time.

Install the camshaft bearing caps and the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten at this time.

Install the front camshaft bearing mega cap and the bolts.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: Stage 1: 53 lb.in (6 Nm) | Stage 2: 53 lb. in (6 Nm) plus an additional : 45°

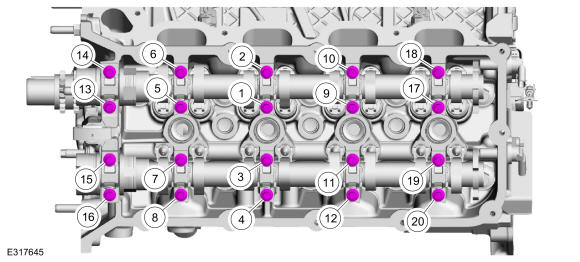

Fig 1: LH Camshaft Tightening Sequence
Courtesy of FORD MOTOR COMPANY

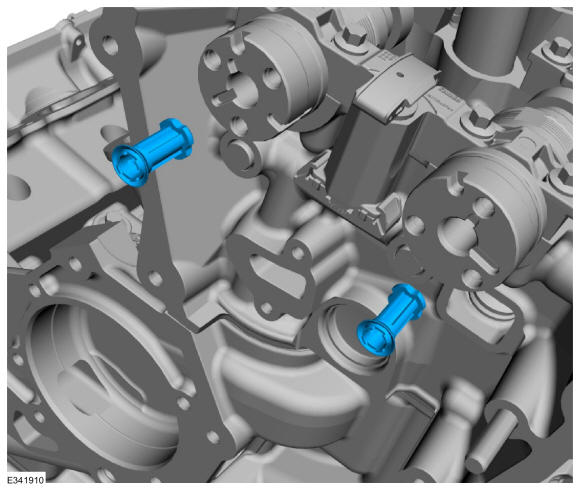

Install new VCT system oil filters into the camshafts.

Courtesy of FORD MOTOR COMPANY
Install the LHVCT units. Refer to: Variable Camshaft Timing (VCT) Unit .
