Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

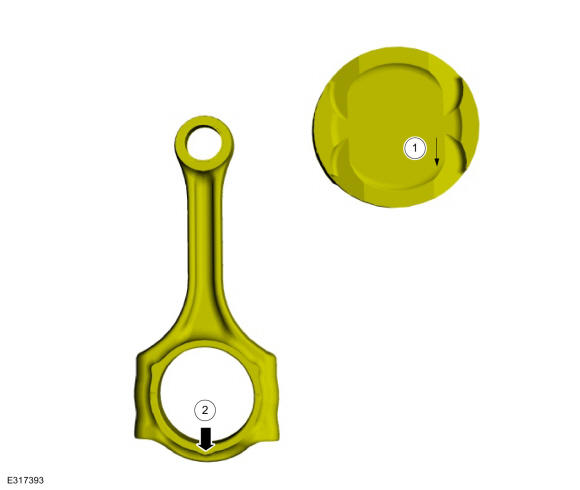

1. Arrow on the top of the dome of the piston should be facing toward the front of the engine block
2. Bump on connecting rod should be facing toward the front of the engine block
Courtesy of FORD MOTOR COMPANY

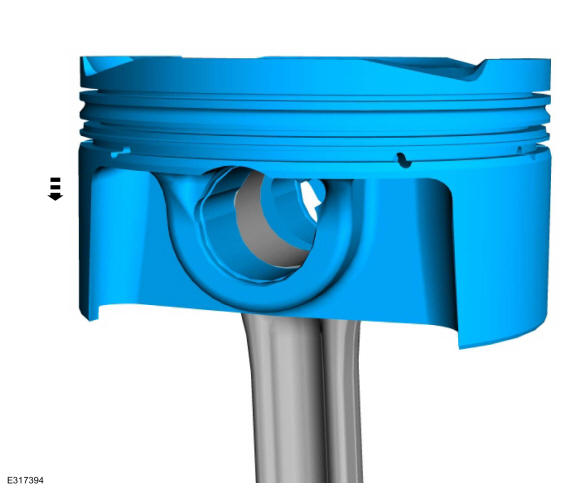

Position the piston on the connecting rod.

Courtesy of FORD MOTOR COMPANY

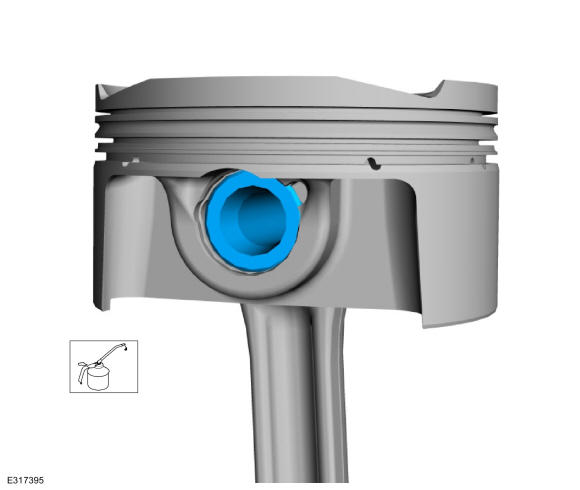

- Lubricate the piston pin with clean engine oil.
- Install the piston pin.
Courtesy of FORD MOTOR COMPANY

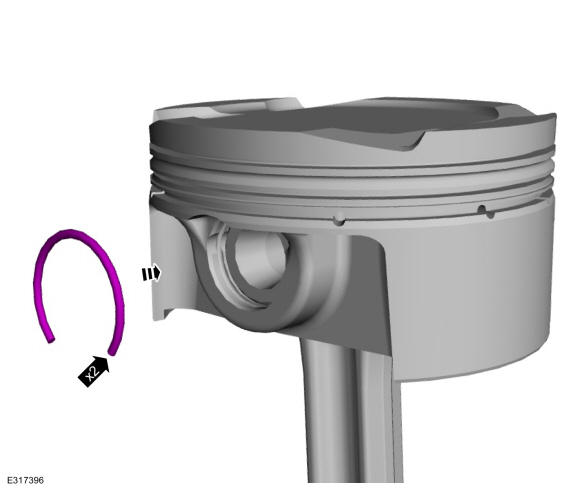

NOTE: The piston pin retainer gap orientation must be toward the bottom of the piston.

Install the piston pin retainers.

Courtesy of FORD MOTOR COMPANY

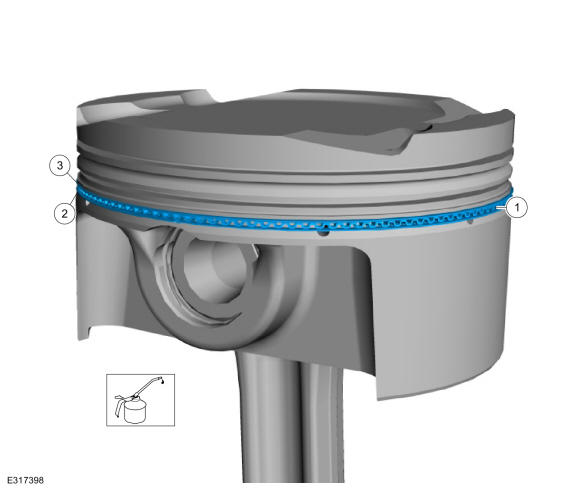

Lubricate the oil control rings.
1. Install the oil control expander ring.
2. Install the lower oil control ring.
3. Install the upper oil control ring.
Courtesy of FORD MOTOR COMPANY

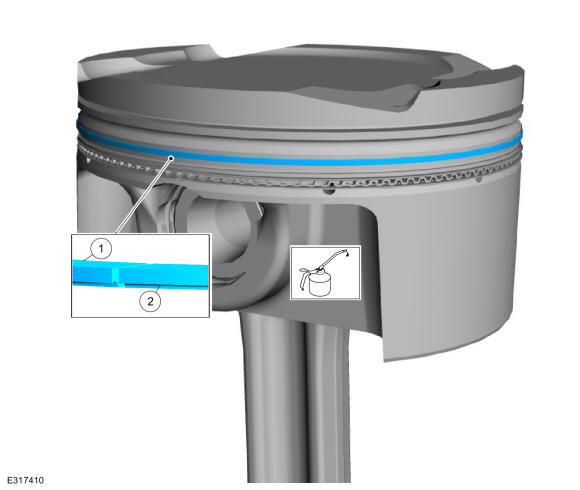

Lubricate the lower compression ring with clean engine oil and install the ring.
1. The identification mark on the ring should be pointing up toward the top of the piston.
2. Hook feature will point down toward the bottom of piston.
Courtesy of FORD MOTOR COMPANY

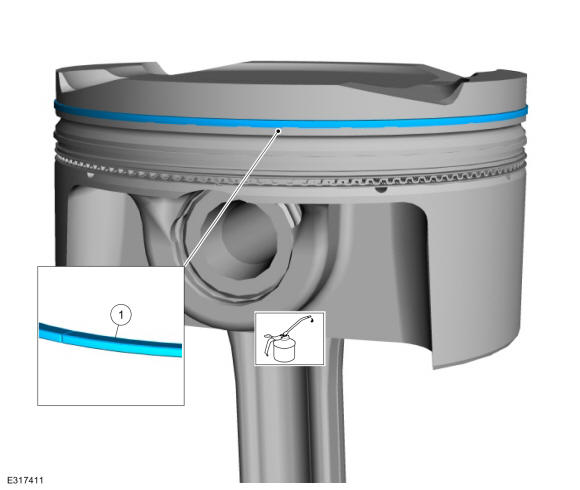

Lubricate the upper compression ring with clean engine oil and install the ring.
1. The identification mark on the ring should be pointing up toward the top of the piston.
Courtesy of FORD MOTOR COMPANY

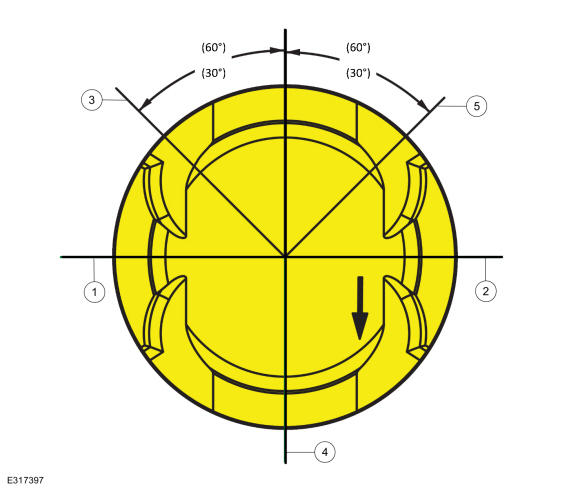

Position the piston ring gaps.
1. Upper compression ring gap.
2. Lower compression ring gap.
3. Upper oil control ring gap.
4. Oil control expander ring gap (Center line of the piston parallel to the wrist pin bore).
5. Lower oil control ring gap.

Courtesy of FORD MOTOR COMPANY
