Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the RH valve cover. Refer to: VALVE COVER RH .

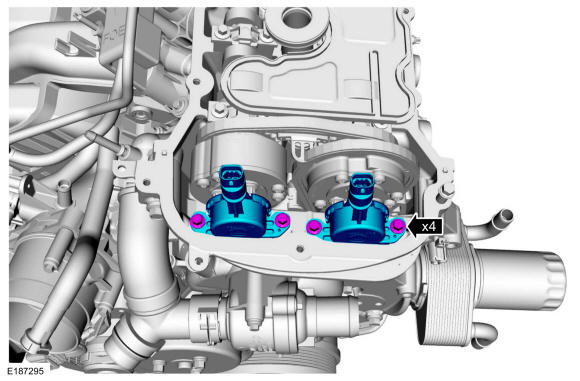

- Remove the bolts and the RHVCT oil control solenoids.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 30deg.
LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the LH valve cover. Refer to: Valve Cover LH .

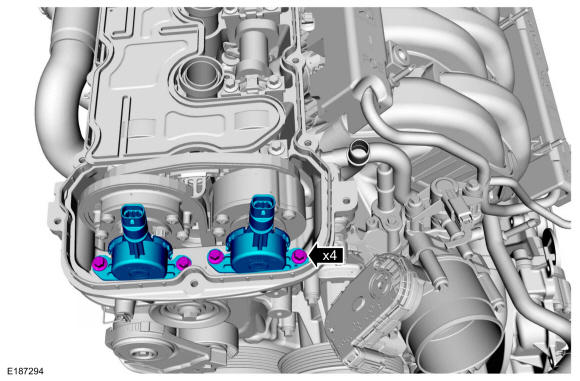

- Remove the bolts and the LHVCT oil control solenoids.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 30deg.
