Supercharger Inlet Pressure Sensor (SCIP): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

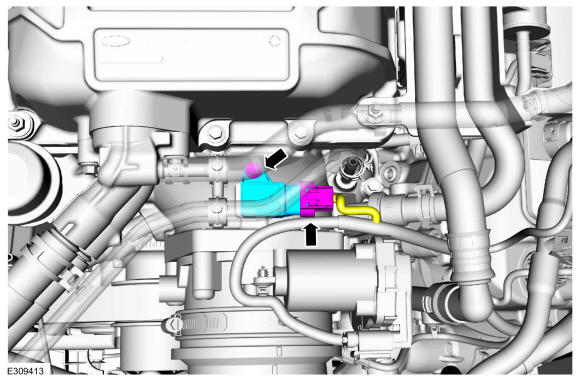

  1. Disconnect the electrical connector. Remove the supercharger inlet pressure (SCIP) sensor.

    Torque: 44 lb.in (5 Nm)

GFD718153Courtesy of FORD MOTOR COMPANY
