Knock Sensor (KS): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the intake manifold.

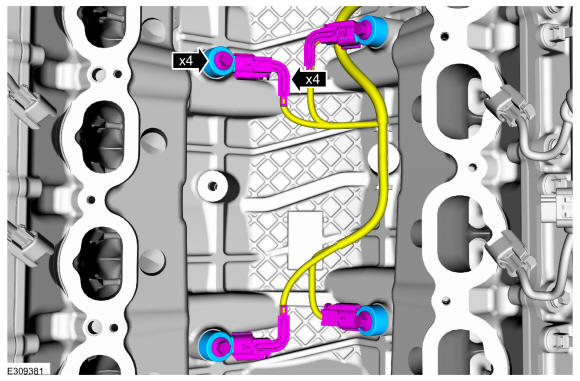

  2. NOTE: Note the position of the components before removal.

    1. Disconnect the KS electrical connectors.
    2. Remove the bolts and the KS.

      Torque: 177 lb.in (20 Nm)

GFD718151Courtesy of FORD MOTOR COMPANY
