Heated Oxygen Sensor (HO2S): Removal

WARNING: This page is about a different variant/trim than selected.

All sensors

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

    RH (right-hand) Heated Oxygen Sensor (HO2S)

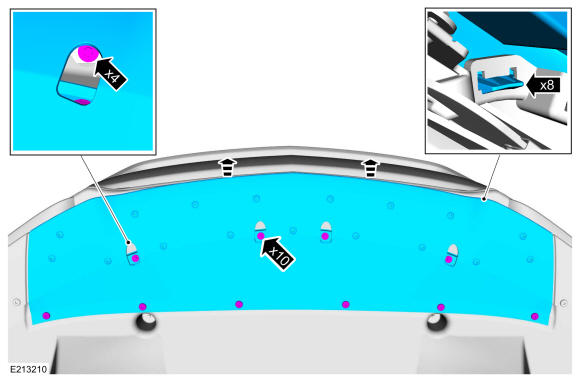

  2. Remove the bolts and the underbody shield.
    GFD718139Courtesy of FORD MOTOR COMPANY

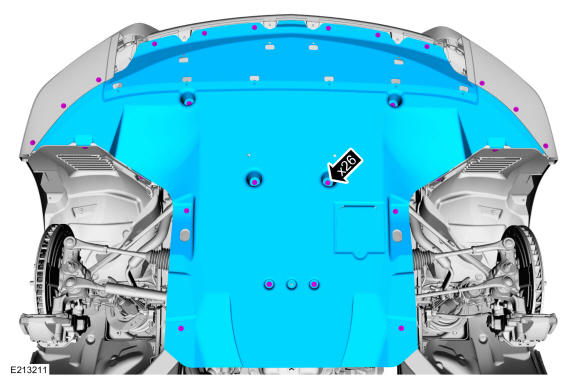

  3. Remove the bolts and the underbody shield.
    GFD718140Courtesy of FORD MOTOR COMPANY

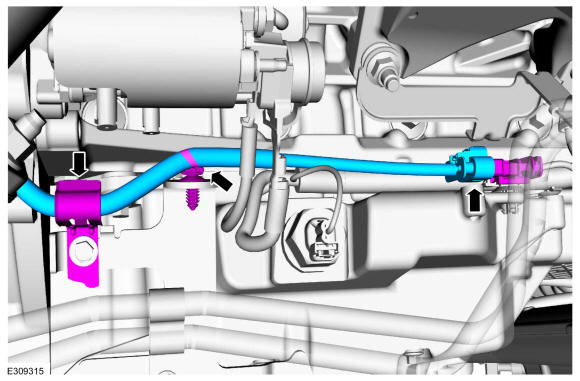

  4. Disconnect the electrical connector and the harness retainers.
    GFD718144Courtesy of FORD MOTOR COMPANY

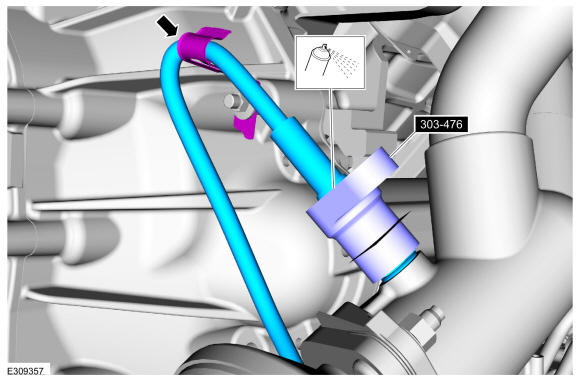

  5. Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

    GFD718145Courtesy of FORD MOTOR COMPANY

    LH (left-hand) Heated Oxygen Sensor (HO2S)

  6. Remove the bolts and the underbody shield.
    GFD718139Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and the underbody shield.
    GFD718140Courtesy of FORD MOTOR COMPANY

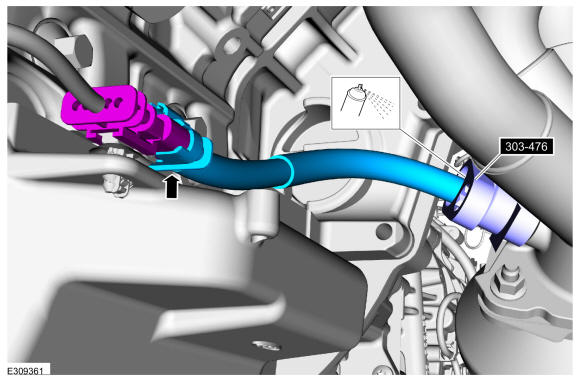

  8. Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

GFD718146Courtesy of FORD MOTOR COMPANY
