Heated Oxygen Sensor (HO2S): Installation

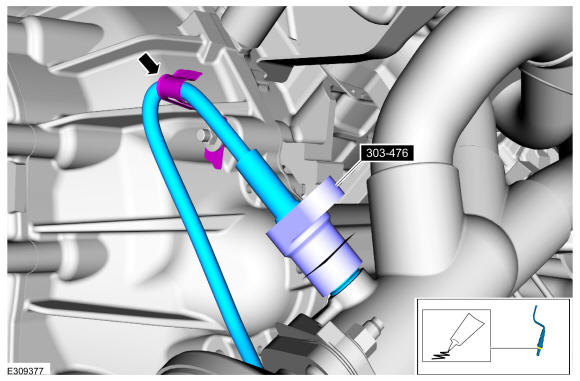

LH (left-hand) Heated Oxygen Sensor (HO2S)

1. NOTE: To install, reverse the removal procedure.

   Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the chart below. Apply anti-seize to thread of sensor, using special tool install the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

   Courtesy of FORD MOTOR CO.

   Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

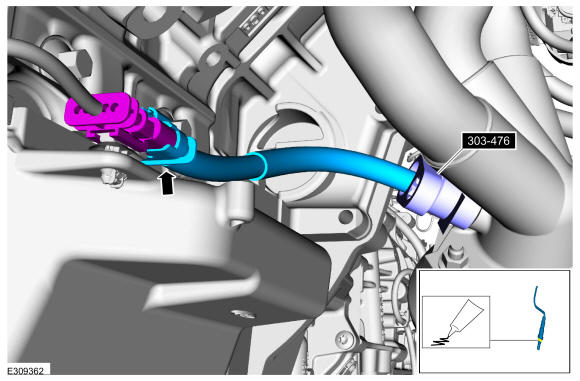

   RH (right-hand) Heated Oxygen Sensor (HO2S)

2. NOTE: To install, reverse the removal procedure.

   Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the chart below. Apply anti-seize to thread of sensor, using special tool install the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

   Courtesy of FORD MOTOR CO.

   Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

   Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
