Fuel Rail Pressure and Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Removal steps in this procedure may contain installation details.
Release the fuel system pressure. Refer to: Quick Release Coupling .
- Disconnect the battery. Refer to: Battery Disconnect and Connect .

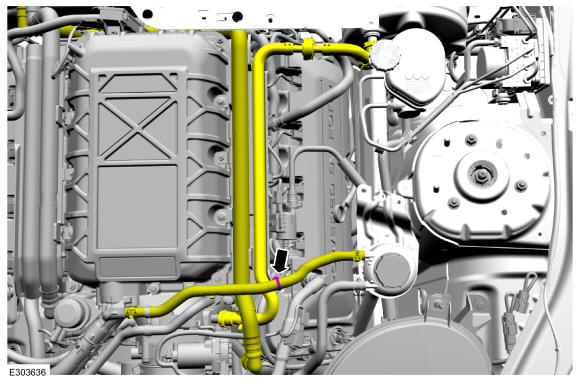

- Detach the coolant hose retainer, then move the hoses out of the way.

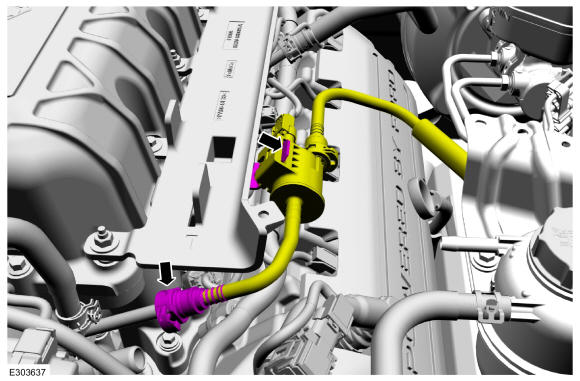

- Disconnect the quick release coupling, release the valve from its bracket, then move the valve out of the way. Refer to: Quick Release Coupling
.

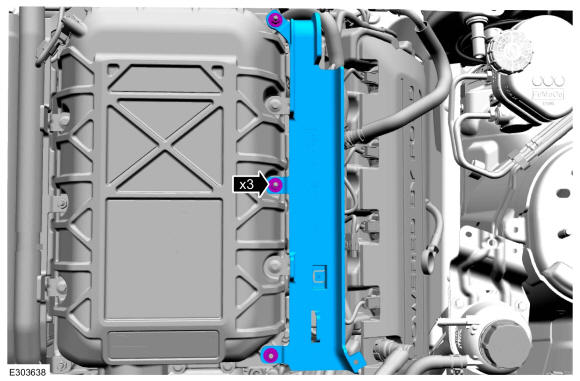

- Remove the nuts, then remove the hose support.

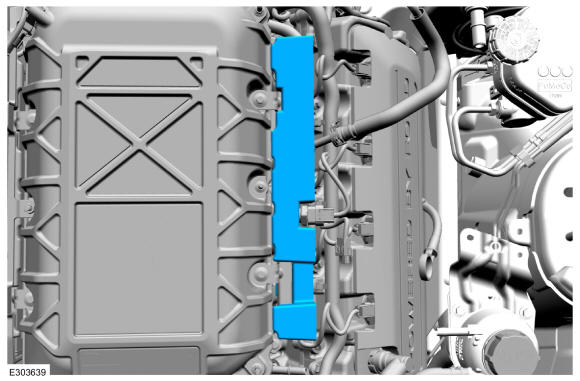

- Remove the fuel rail insulator.

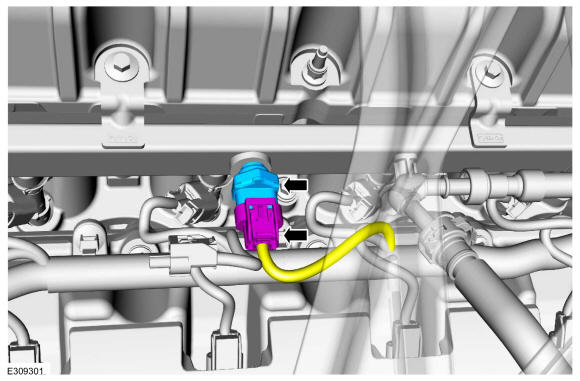

- Disconnect and remove the FRP and Temperature sensor.
Torque: Stage 1: 53 lb.in (6 Nm) Stage 2: 25deg.
