Engine Oil Level Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the bolts and the underbody shield.
- Remove the bolts and the underbody shield.
-
NOTE: Lubricate the O-ring with clean engine oil.

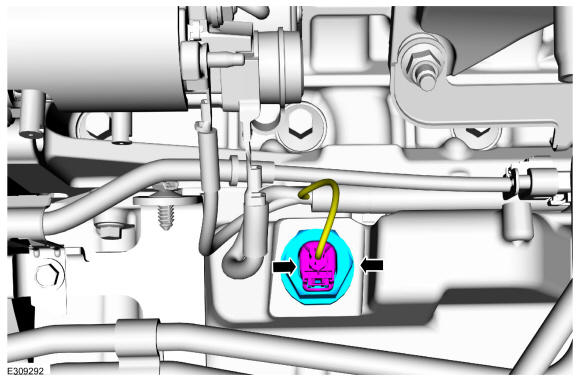

Disconnect the electrical connector and remove the engine oil level sensor.
Torque: 133 lb.in (15 Nm)
