Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner outlet pipe.
Drain the cooling system.

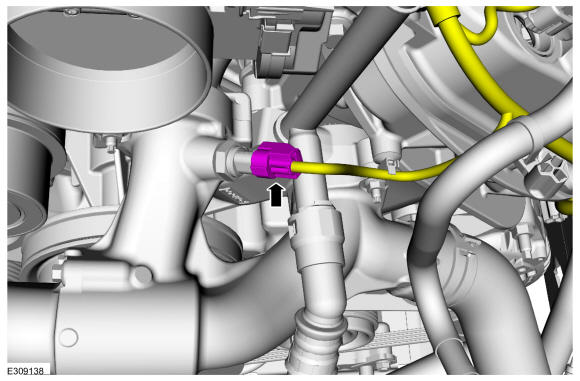

Disconnect the electrical connector.
Torque: Stage 1: 97 lb.in (11 Nm) Stage 2: 15deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Have the new component ready to install to reduce coolant loss.

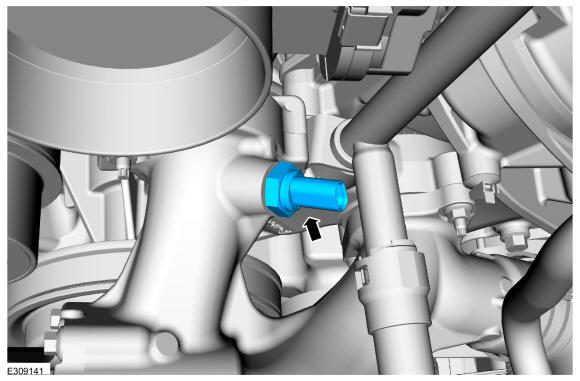

Remove the ECT sensor.

Torque: Stage 1: 97 lb.in (11 Nm) Stage 2: 15deg.

Courtesy of FORD MOTOR COMPANY
