Cylinder Head Temperature 2 (CHT2) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake booster. Refer to: Brake Booster - 5.0L 32V Ti-VCT .
-
NOTE: Do not reuse the CHT sensor, install a new sensor.

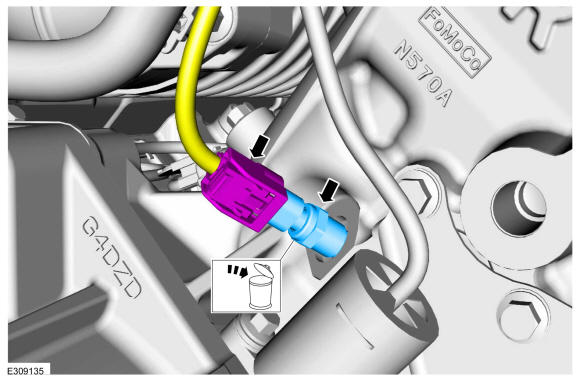

- Disconnect the electrical connector and remove the CHT sensor.
Torque: 97 lb.in (11 Nm)
- Disconnect the electrical connector and remove the CHT sensor.
