Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake booster. Refer to: Brake Booster - 5.0L 32V Ti-VCT .

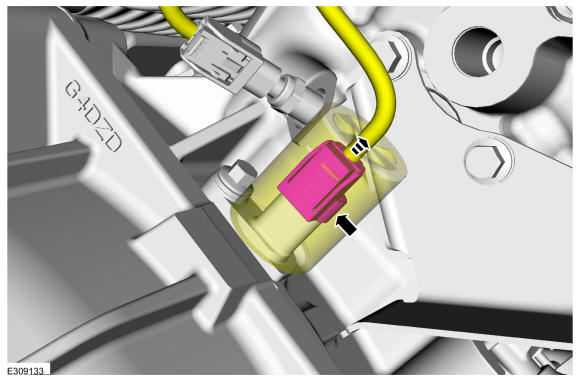

- Position the cover and disconnect the CKP sensor electrical connector.
Torque: 89 lb.in (10 Nm)

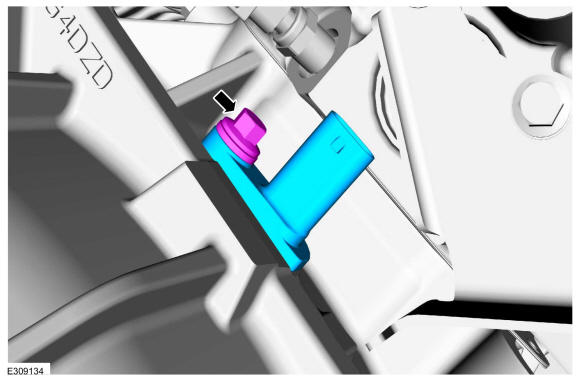

- Remove the bolt and the CKP sensor.
Torque: 97 lb.in (11 Nm)
