Charge Air Cooler Coolant Temperature (CACCT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

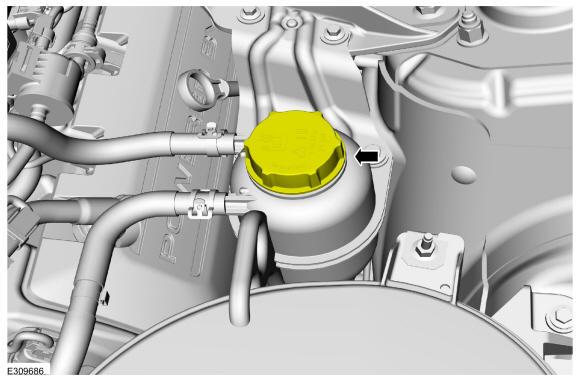

Loosen the coolant expansion tank cap. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Tighten the coolant expansion tank cap.
Torque: 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Have the new component ready to install to reduce coolant loss.

NOTE: Be prepared to capture escaping fluid with a shop towel.

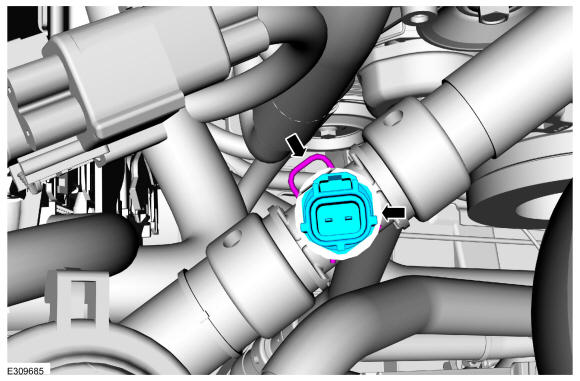

Remove the retaining clip. Remove the charge air cooler coolant temperature (CACCT) sensor.

Courtesy of FORD MOTOR COMPANY
