Ignition Coil-On-Plug: Installation

WARNING: This page is about a different variant/trim than selected.

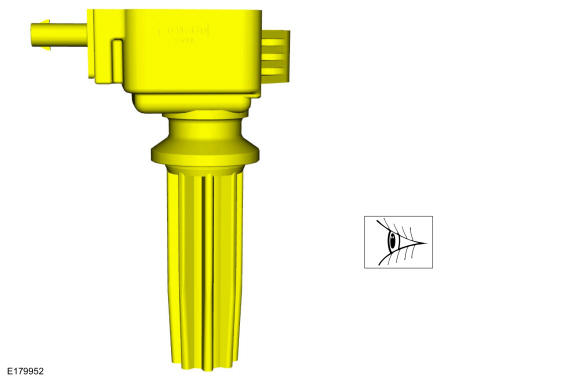

  1. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.
    GFD717875Courtesy of FORD MOTOR COMPANY
    1. Install the ignition coil-on-plugs.
    2. Install the ignition coil-on-plug mounting bolts.

      Torque: 89 lb.in (10 Nm)

    GFD717876Courtesy of FORD MOTOR COMPANY

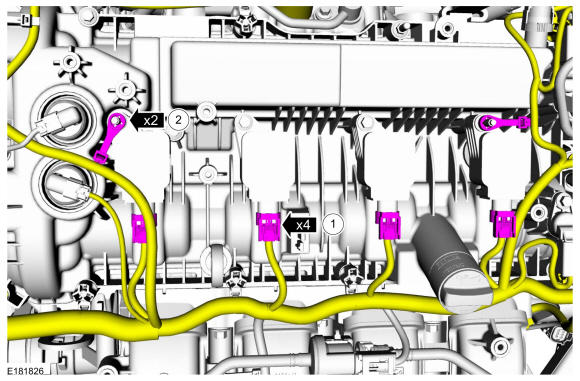

    1. Connect the wiring harness retainers Connect the ignition coil-on plug electrical connectors.
    2. Slide the locking tab cover towards the coil to lock connectors to coil.
    GFD717877Courtesy of FORD MOTOR COMPANY
  4. Install the engine appearance cover, then install and tighten the engine appearance cover retaining nuts and bolts.

    Torque: 80 lb.in (9 Nm)

GFD717648Courtesy of FORD MOTOR COMPANY
