High-Pressure Fuel Pump Drive Unit: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Make sure that the mating faces are clean and free of foreign material.

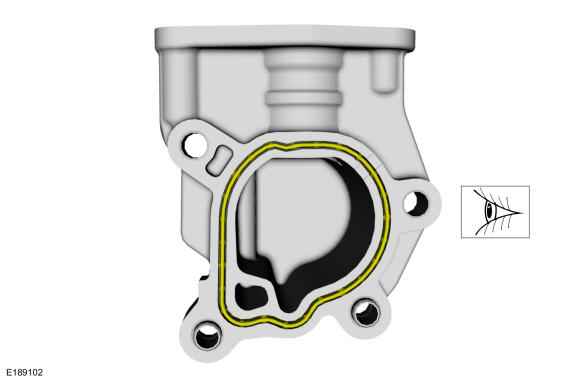

- Replace the high-pressure fuel pump drive unit gasket as necessary.

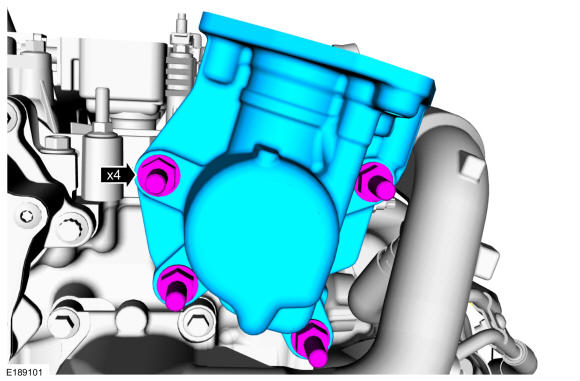

- Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit bolts.
Torque:
Stage 1: 133 lb.in (15 Nm)
Stage 2: 60°

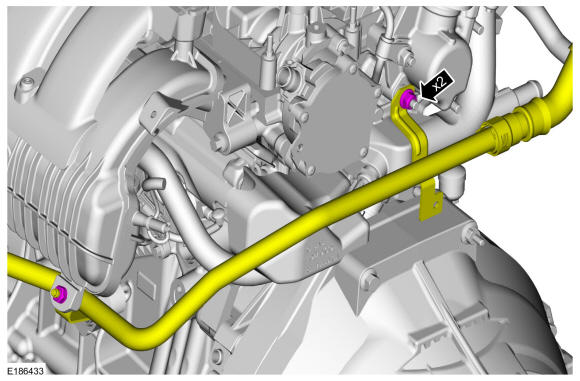

- Install the bolts and position back the coolant line.
Torque: 106 lb.in (12 Nm)
- Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .

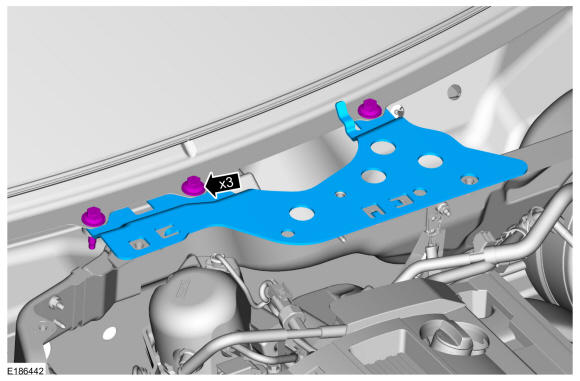

- Install cowl extension, then install and tighten the cowl extension bolts.
Torque: 26 lb.ft (35 Nm)

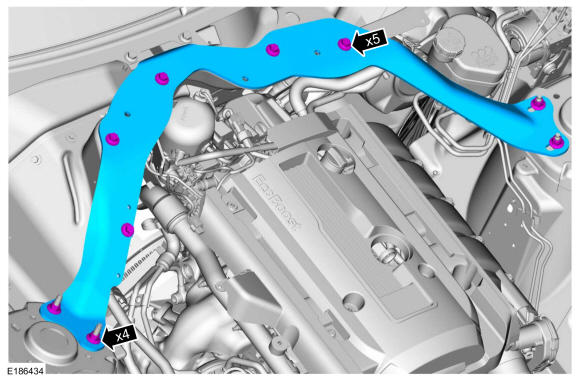

- Install the strut tower cross brace, then install and tighten the strut tower cross brace bolts and the strut tower cross brace nuts.
Torque:
Bolts : 26 lb.ft (35 Nm)
Nuts : 41 lb.ft (55 Nm)
- Install the cowl panel grille. Refer to: Cowl Panel Grille .

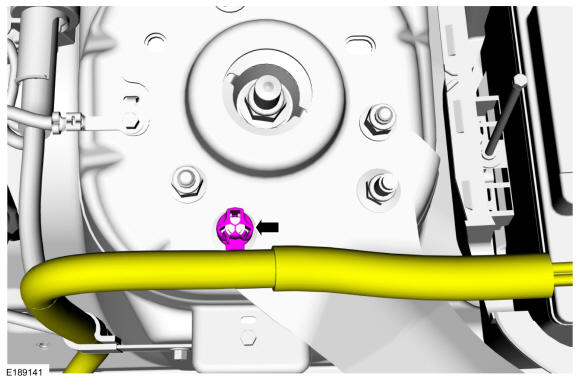

- If equipped, install the strut tower cross brace and the new nuts.
Torque: 41 lb.ft (55 Nm)
- Connect the battery cable retainer.
- Connect both battery cables. Refer to: Battery Disconnect and Connect .
