Fuel Pump Driver Module (FPDM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The FPDM is located beneath the rear seat cushion on the LH side.

Remove the rear seat cushion. Refer to: Rear Seat Cushion .

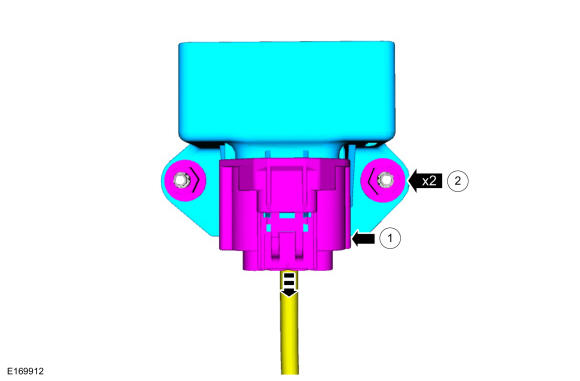

1. Disconnect the FPDM electrical connector.
2. Remove the FPDM retaining nuts and then remove the FPDM.
