Fuel Charging and Controls - Component Location: FPDM

WARNING: This page is about a different variant/trim than selected.

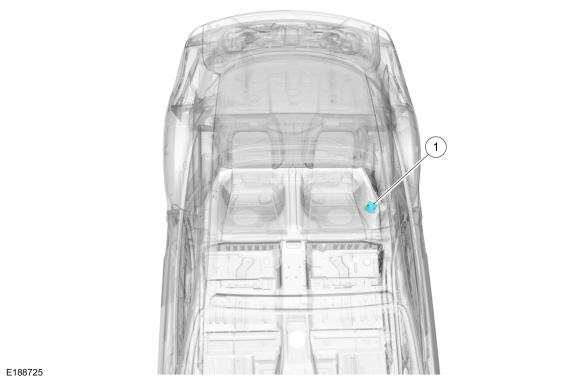

GFD717647Courtesy of FORD MOTOR COMPANY
Item Description
1 FPDM. (The FPDM is located beneath the rear seat cushion on the LH side).
