Section 12 (Fuel Charging And Controls - 2.3L ECOBOOST (231KW/314PS)/2.3L ECOBOOST (257KW/350PS) - Mi4)
>>
Description And Operation
>>

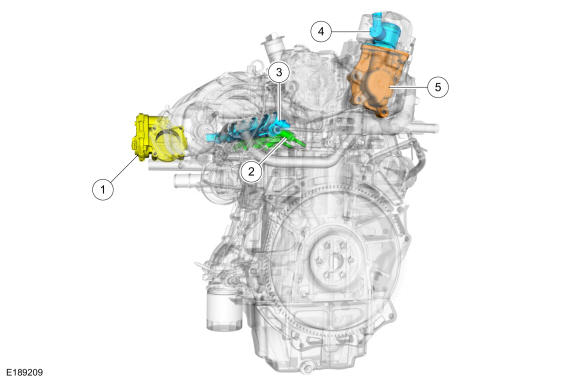

Fuel Charging and Controls - Component Location
>>
2.3L EcoBoost
2.3L EcoBoost
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle Body (TB)
2
Fuel injector
3
Fuel rail
4
High-pressure fuel pump
5
High-pressure fuel pump drive unit
Courtesy of FORD MOTOR COMPANY
