Pilot Bearing: Installation
WARNING: This page is about a different variant/trim than selected.
2.3L EcoBoost (231kW/314PS)

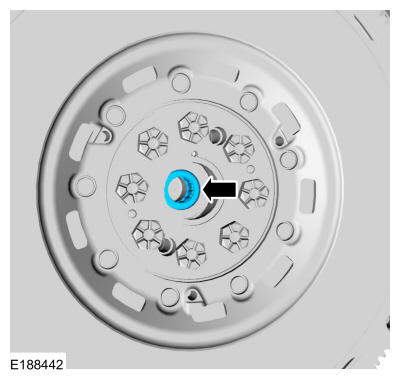

- Position the pilot bearing in the crankshaft. Using a driver, install the pilot bearing.
5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS)/5.2L 32V Ti-VCT
- Install the flywheel. Refer to: Flywheel - 5.0L
.
Refer to: Flywheel - 5.2L
.
All vehicles
- Install the clutch disc and pressure plate. Refer to: Clutch Disc and Pressure Plate - 2.3L EcoBoost (231kW/314PS)/2.3L EcoBoost (257kW/350PS) - MI4 . Refer to: Clutch Disc and Pressure Plate - 5.0L 32V Ti-VCT . Refer to: Clutch Disc and Pressure Plate - 2.3L EcoBoost (231kW/314PS)/2.3L EcoBoost (257kW/350PS) - MI4 .
