Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt

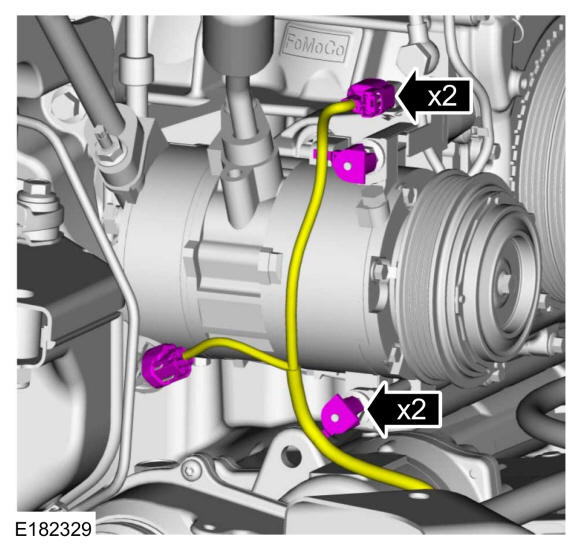

- Disconnect the A/C compressor electrical connectors and the wiring harness retainers.
- Remove the bolts, position the A/C compressor aside.
- Remove the bolts and disconnect the CKP sensor electrical connector and the CKP sensor.
