Boost Pressure Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

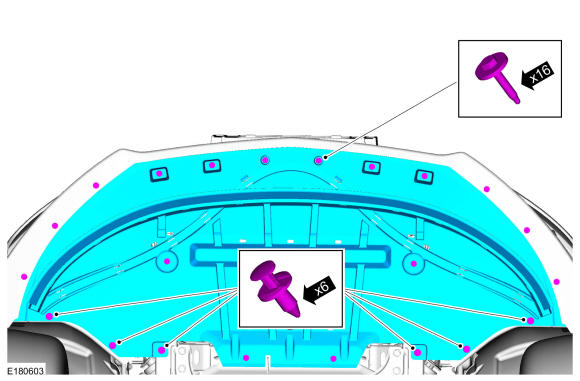

- Remove the bolts and the retainers and the underbody shield.
Torque: 18 lb.in (2 Nm)
- Disconnect the turbocharger boost pressure sensor electrical connector.

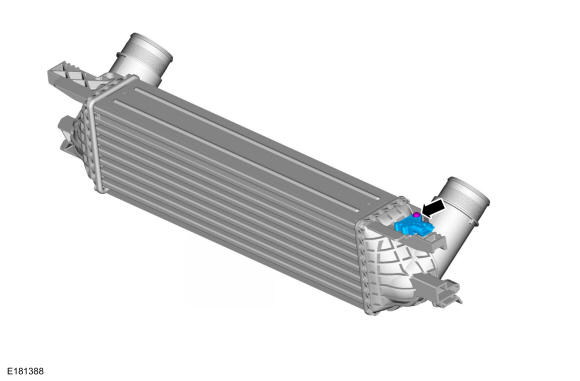

- Remove the retainer and the turbocharger boost pressure sensor.
Torque: 44 lb.in (5 Nm)
