Remote Mount Ignition Coil: Removal

NOTE: Removal steps in this procedure may contain installation details.

If equipped Detach the wiring harness retainer. Remove and discard the nuts and remove the strut tower cross brace.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the engine appearance cover caps.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Remove the nuts and the engine appearance cover.

Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

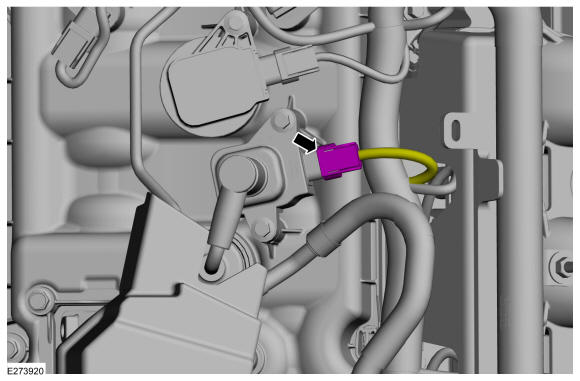

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

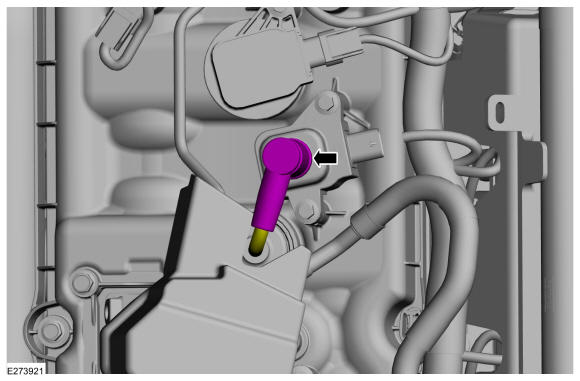

Disconnect the spark plug wire connector and position it aside.

Courtesy of FORD MOTOR COMPANY

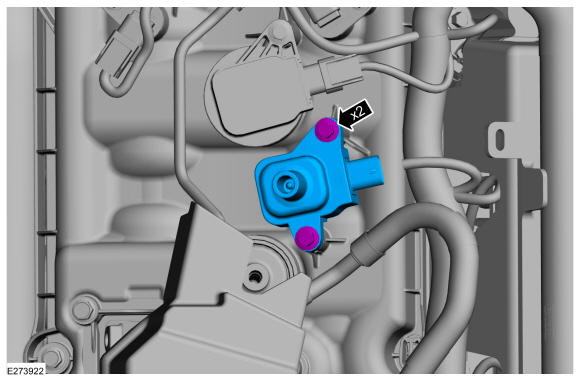

Remove the bolts and the remote mount ignition coil.
Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 45deg.
