Power Distribution

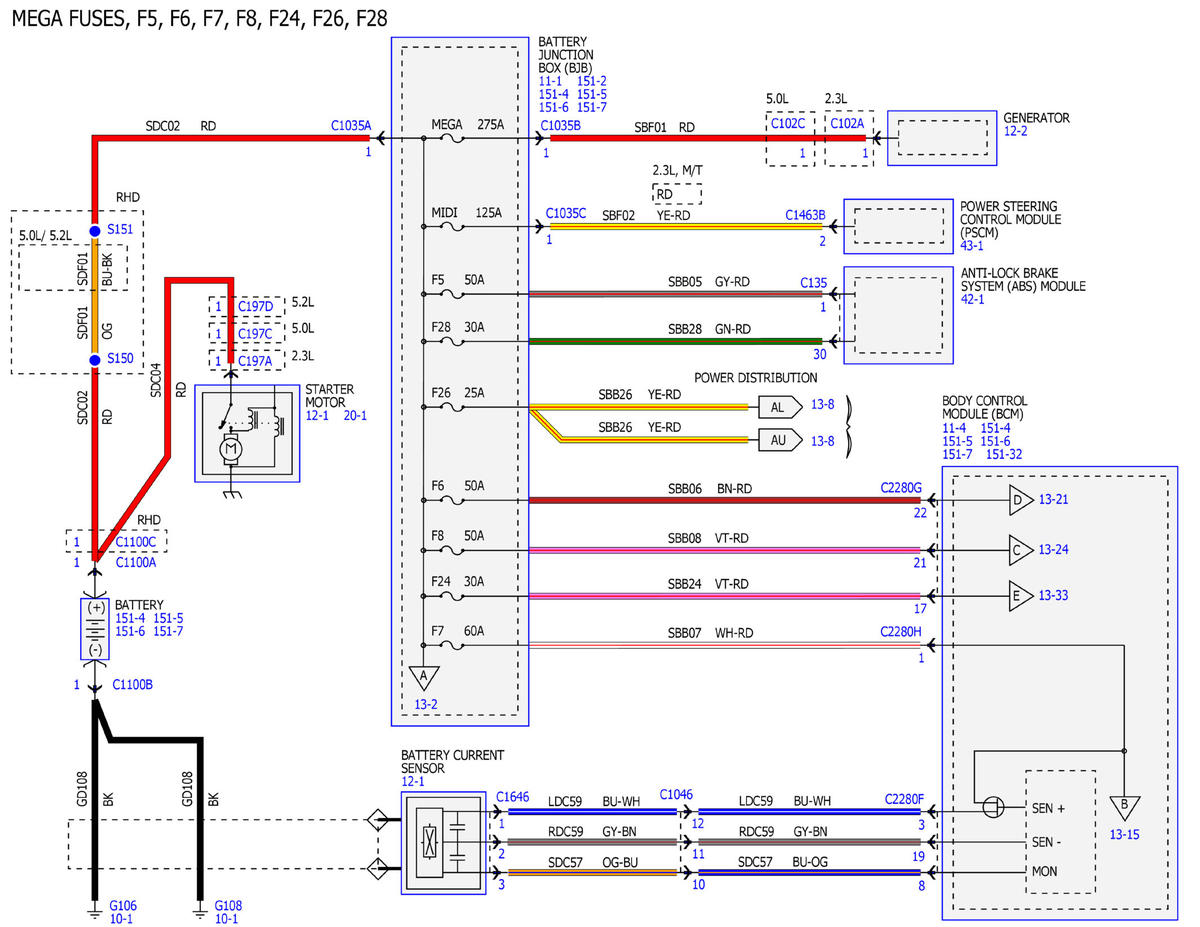

Fig 1: Power Distribution Wiring Diagram (1 Of 39)

GFDWR187660

Courtesy of FORD MOTOR COMPANY

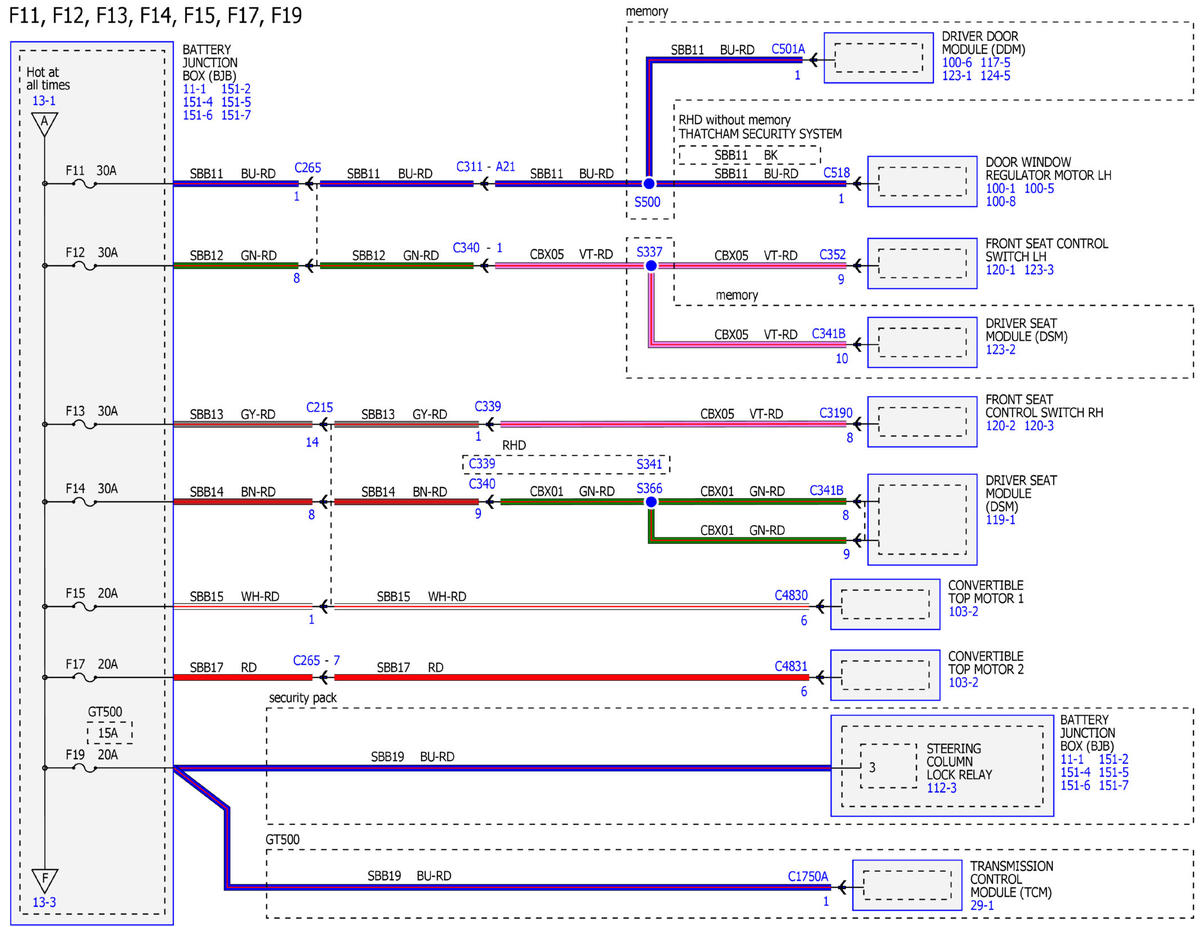

Fig 2: Power Distribution Wiring Diagram (2 Of 39)

GFDWR187671

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Distribution Wiring Diagram (3 Of 39)

GFDWR187680

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Distribution Wiring Diagram (4 Of 39)

GFDWR187691

Courtesy of FORD MOTOR COMPANY

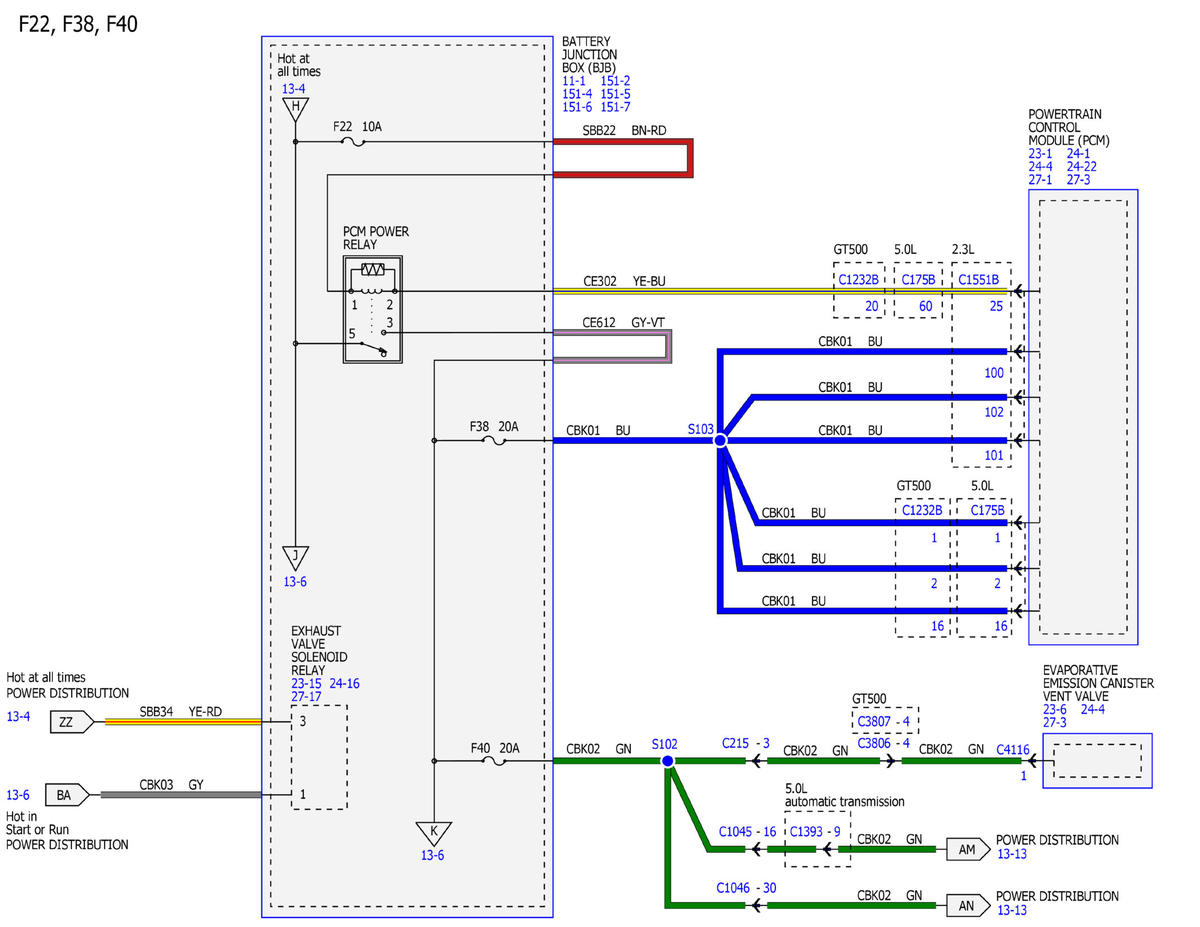

Fig 5: Power Distribution Wiring Diagram (5 Of 39)

GFDWR187692

Courtesy of FORD MOTOR COMPANY

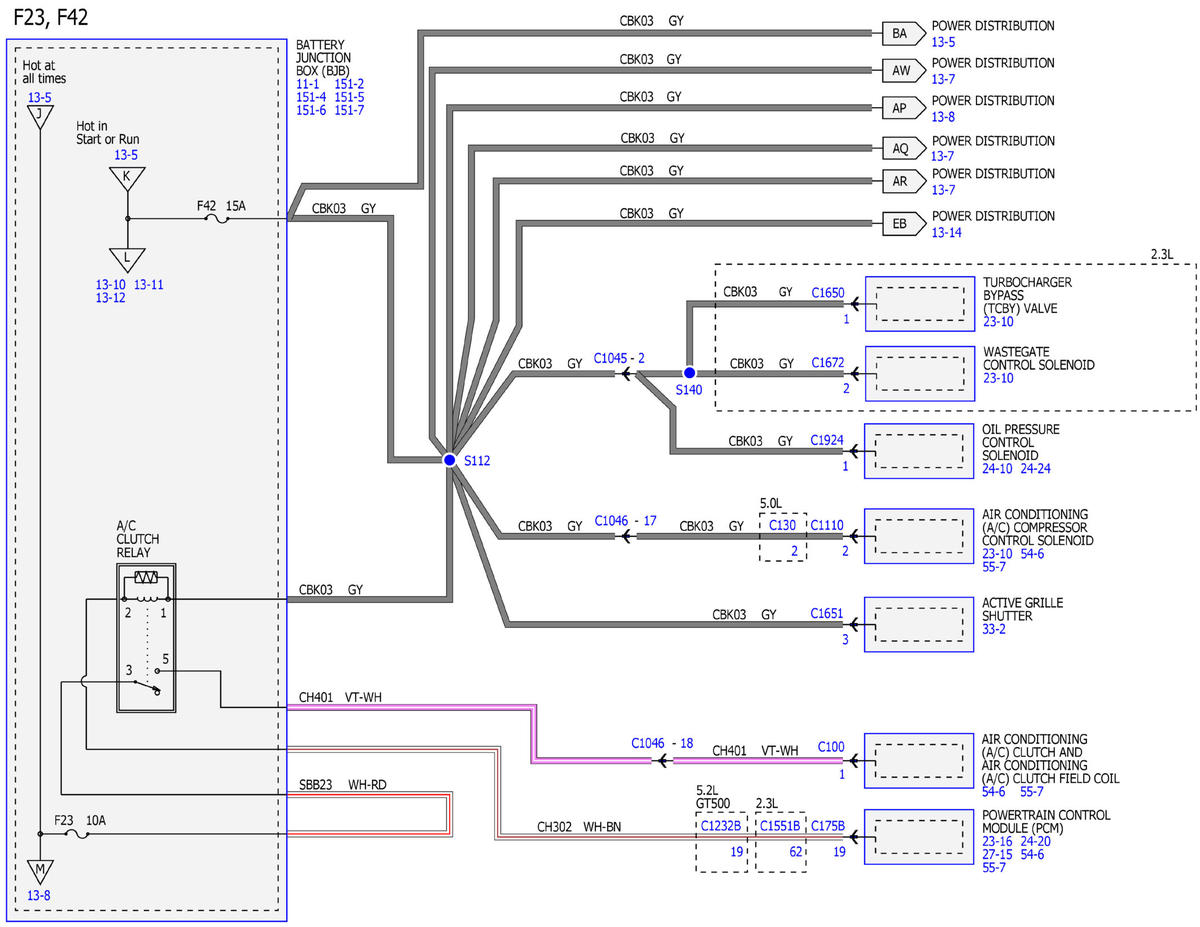

Fig 6: Power Distribution Wiring Diagram (6 Of 39)

GFDWR187693

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution Wiring Diagram (7 Of 39)

GFDWR187694

Courtesy of FORD MOTOR COMPANY

Fig 8: Power Distribution Wiring Diagram (8 Of 39)

GFDWR187695

Courtesy of FORD MOTOR COMPANY

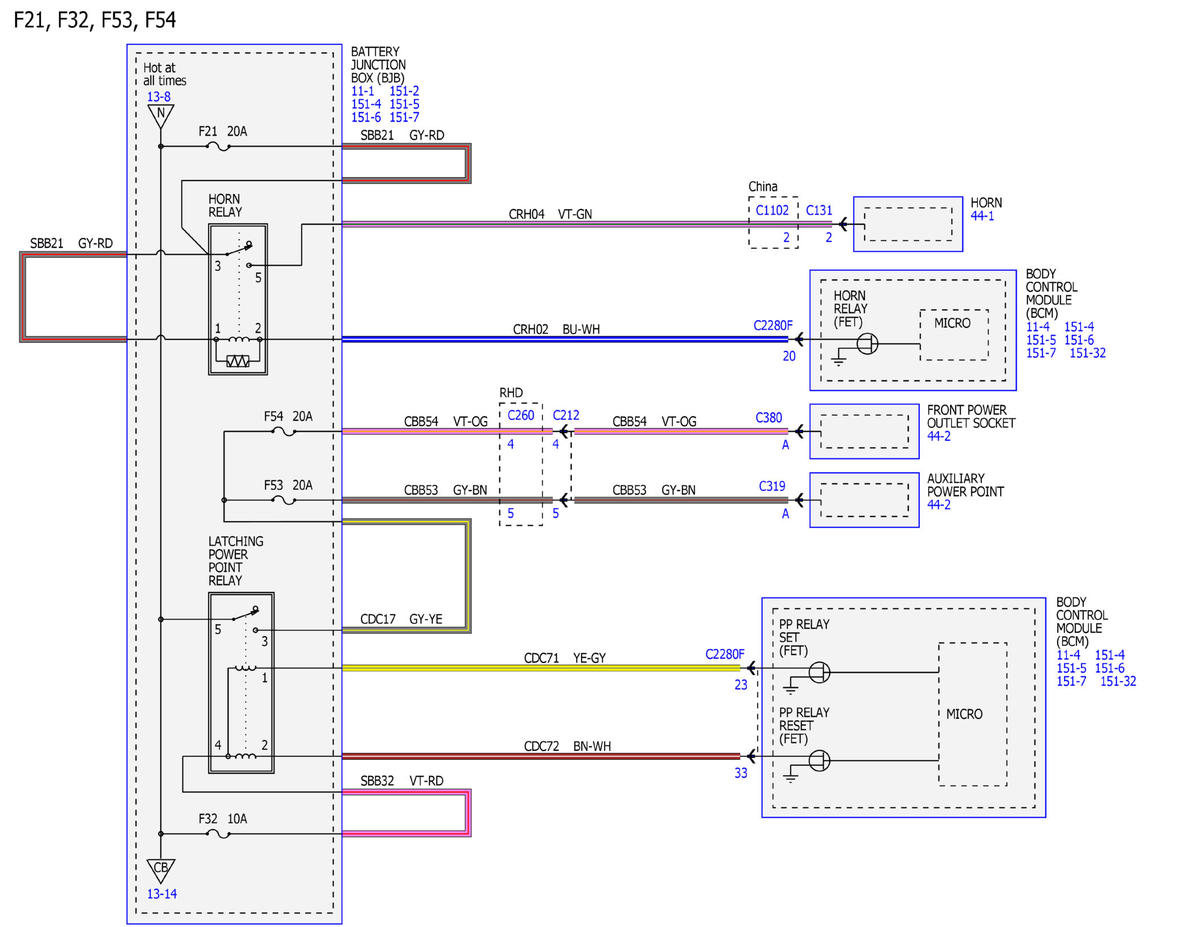

Fig 9: Power Distribution Wiring Diagram (9 Of 39)

GFDWR187696

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Distribution Wiring Diagram (10 Of 39)

GFDWR187661

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Distribution Wiring Diagram (11 Of 39)

GFDWR187662

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Distribution Wiring Diagram (12 Of 39)

GFDWR187663

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution Wiring Diagram (13 Of 39)

GFDWR187664

Courtesy of FORD MOTOR COMPANY

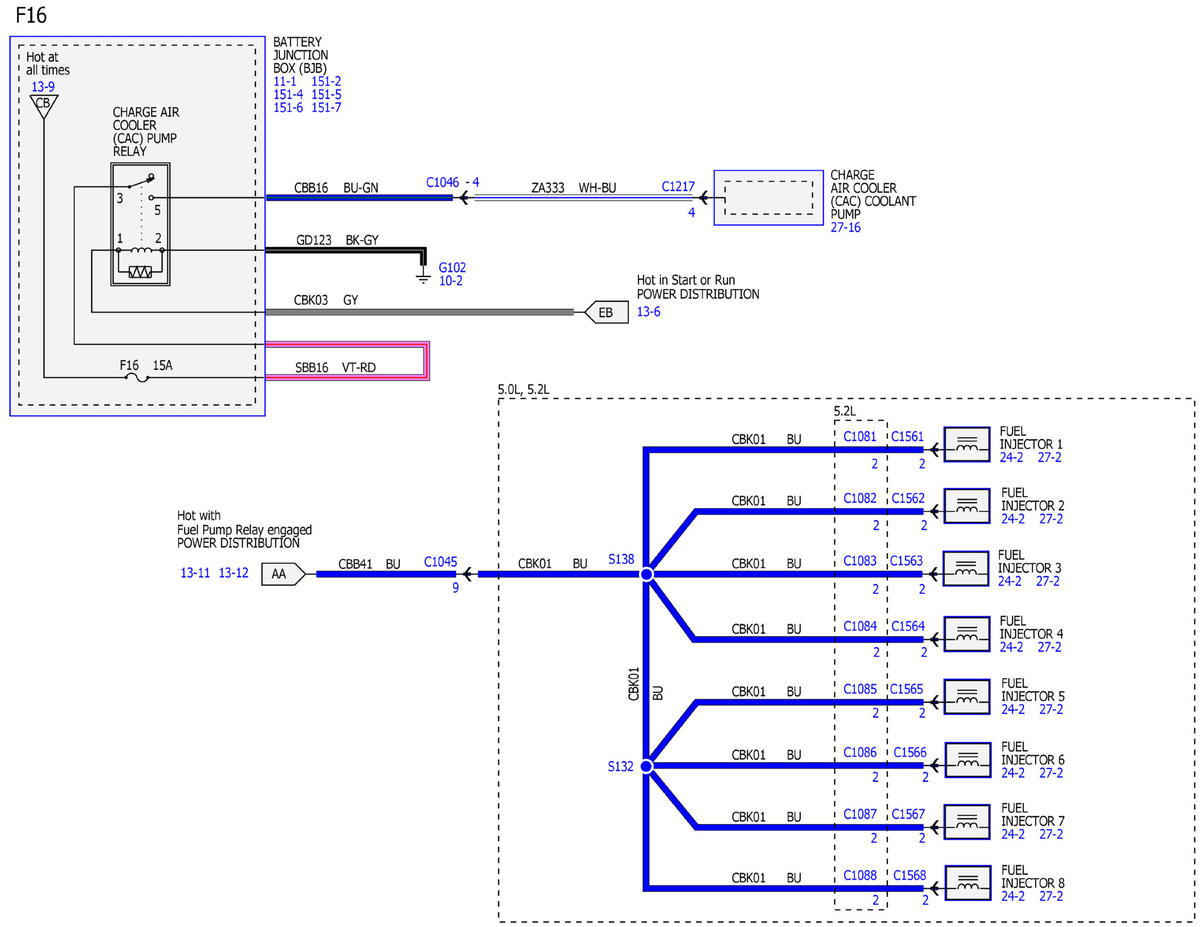

Fig 14: Power Distribution Wiring Diagram (14 Of 39)

GFDWR187665

Courtesy of FORD MOTOR COMPANY

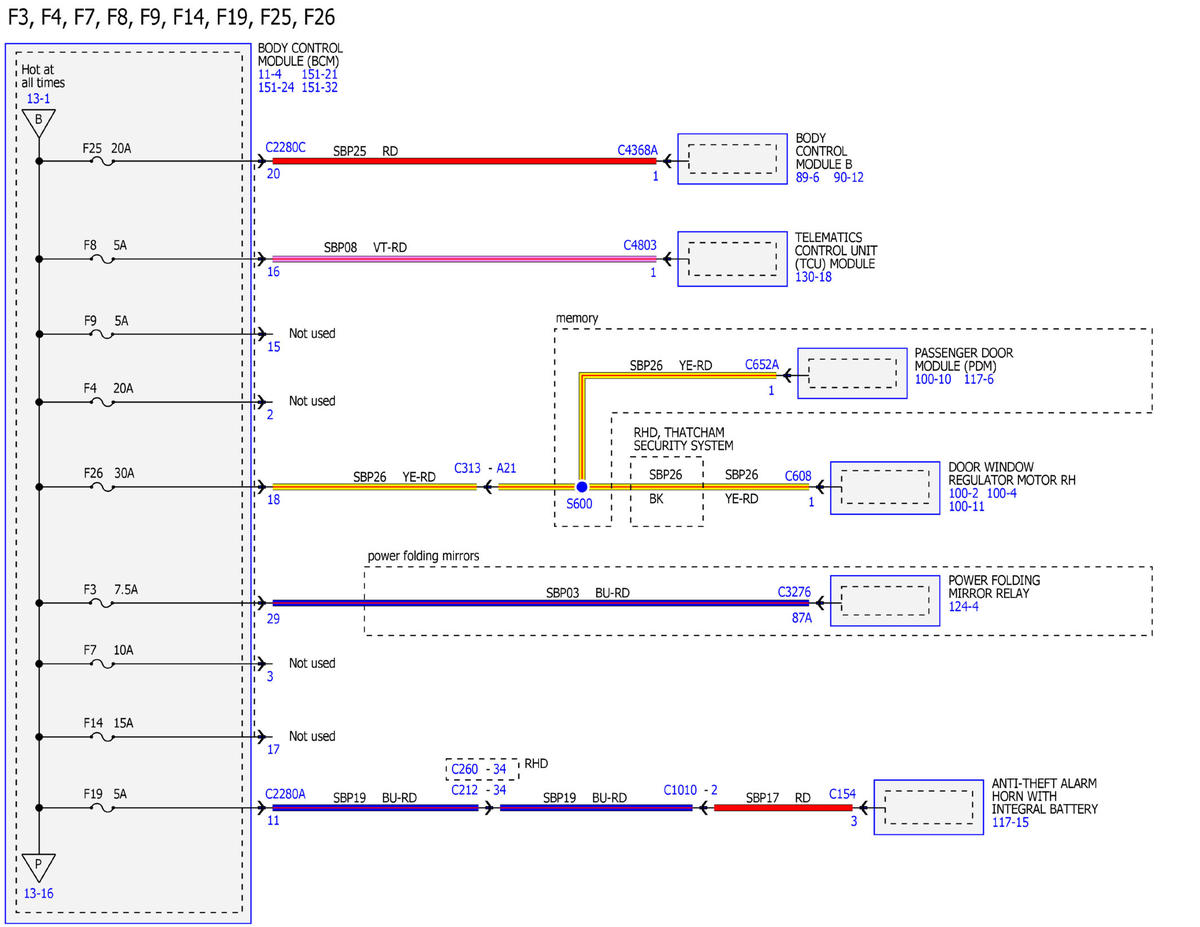

Fig 15: Power Distribution Wiring Diagram (15 Of 39)

GFDWR187666

Courtesy of FORD MOTOR COMPANY

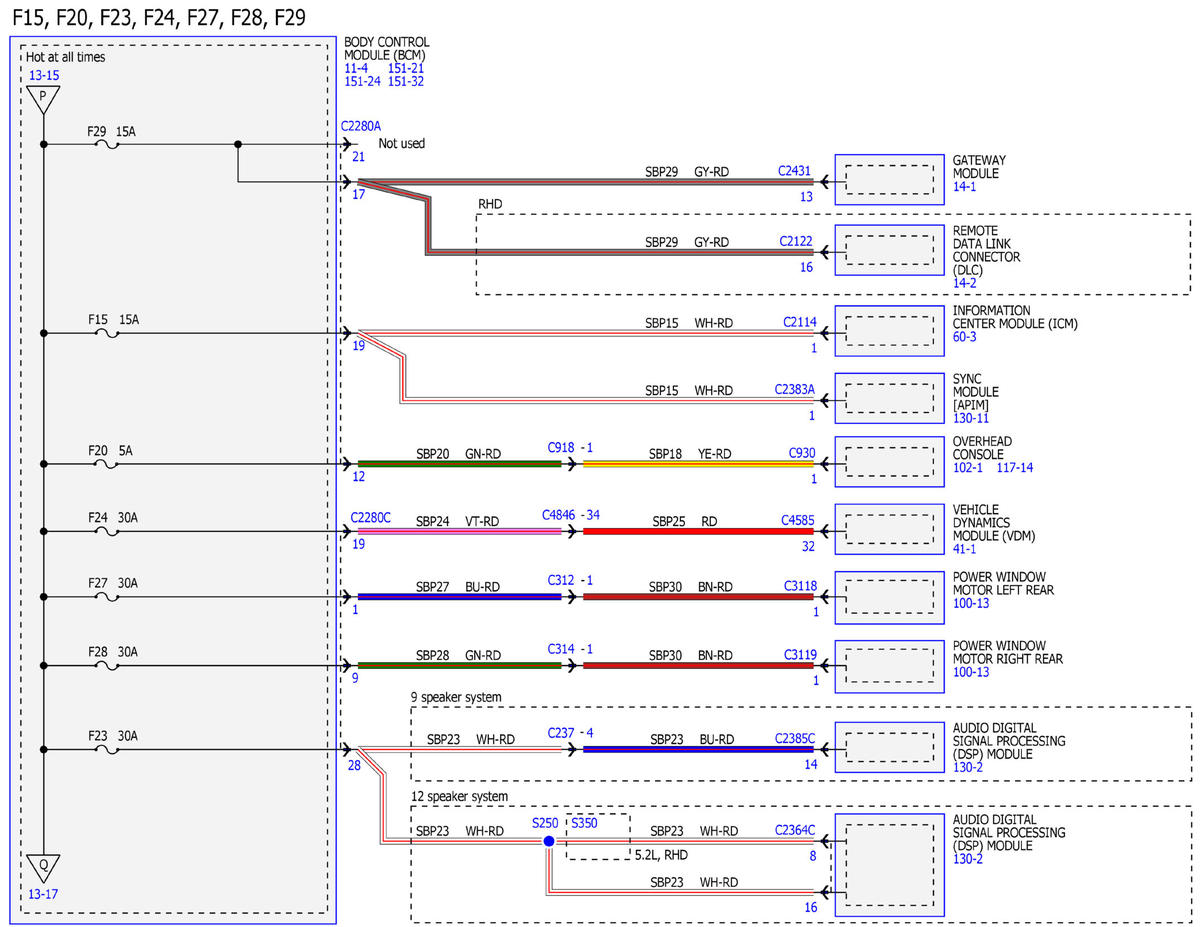

Fig 16: Power Distribution Wiring Diagram (16 Of 39)

GFDWR187667

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 Of 39)

GFDWR187668

Courtesy of FORD MOTOR COMPANY

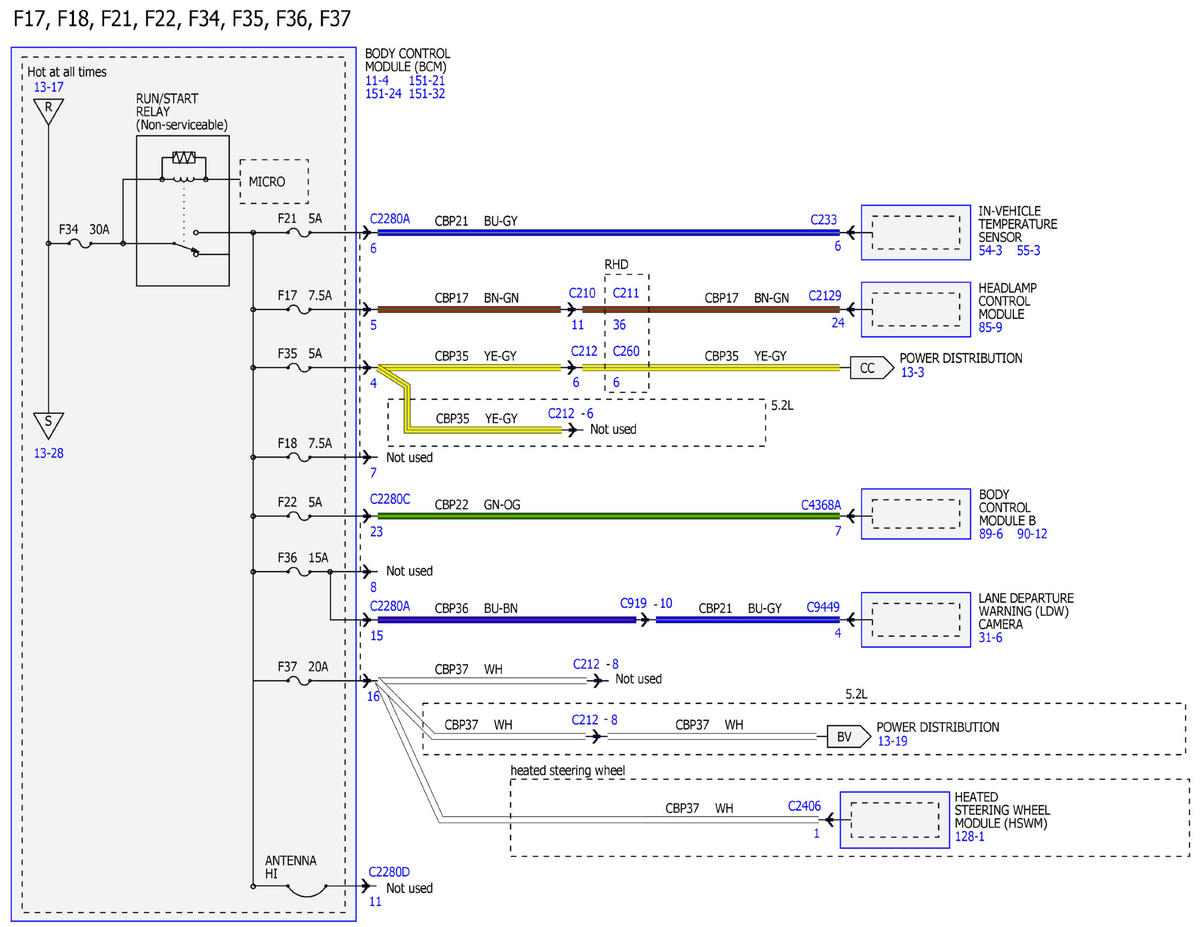

Fig 18: Power Distribution Wiring Diagram (18 Of 39)

GFDWR187669

Courtesy of FORD MOTOR COMPANY

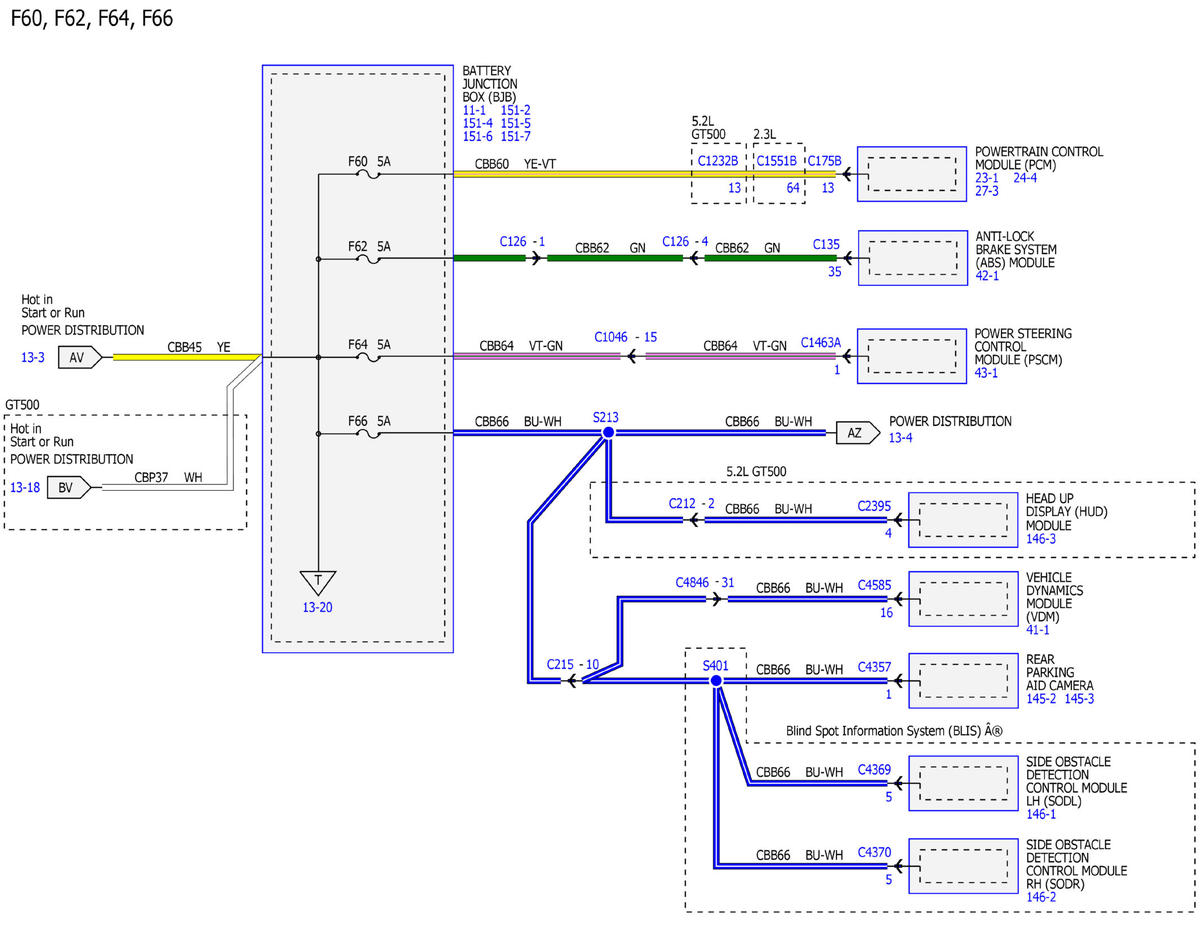

Fig 19: Power Distribution Wiring Diagram (19 Of 39)

GFDWR187670

Courtesy of FORD MOTOR COMPANY

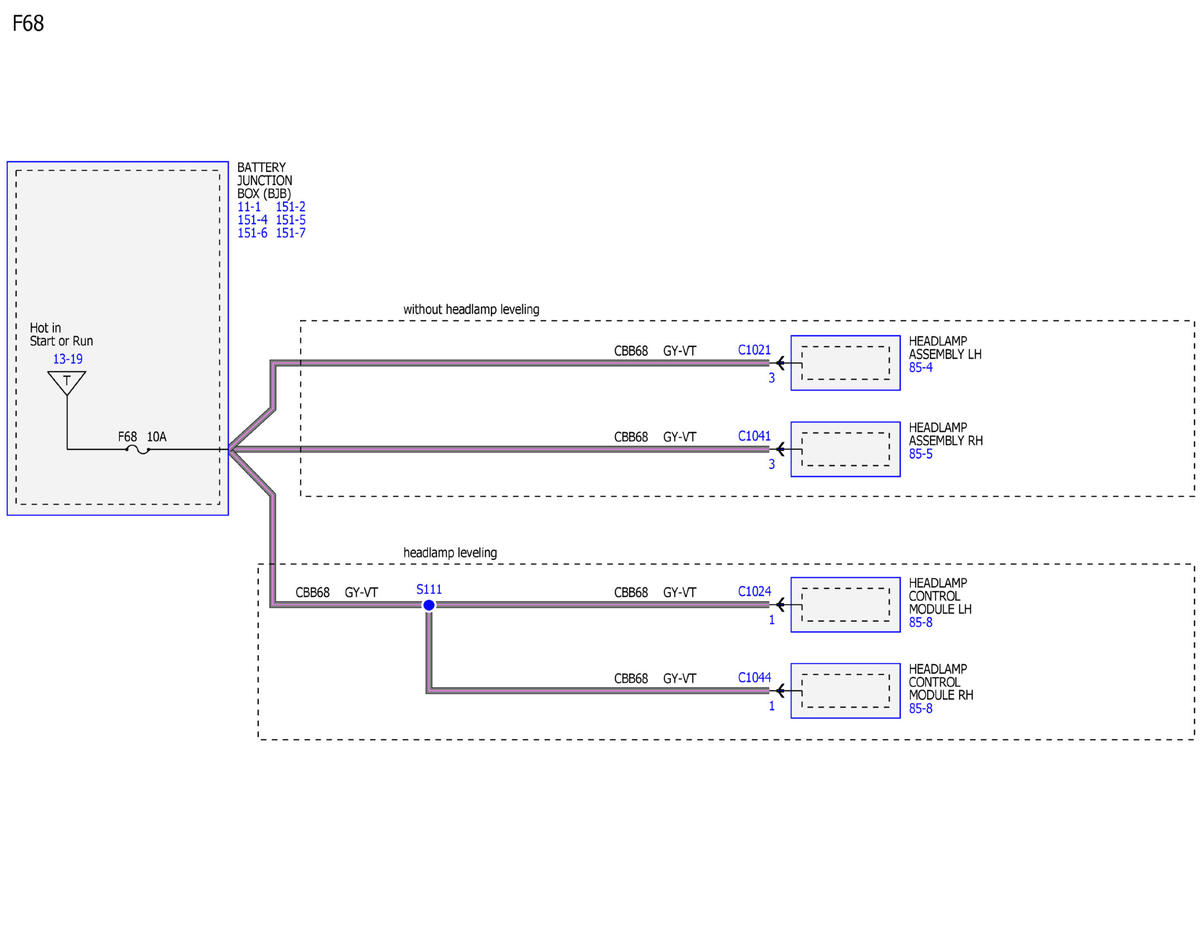

Fig 20: Power Distribution Wiring Diagram (20 Of 39)

GFDWR187672

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution Wiring Diagram (21 Of 39)

GFDWR187673

Courtesy of FORD MOTOR COMPANY

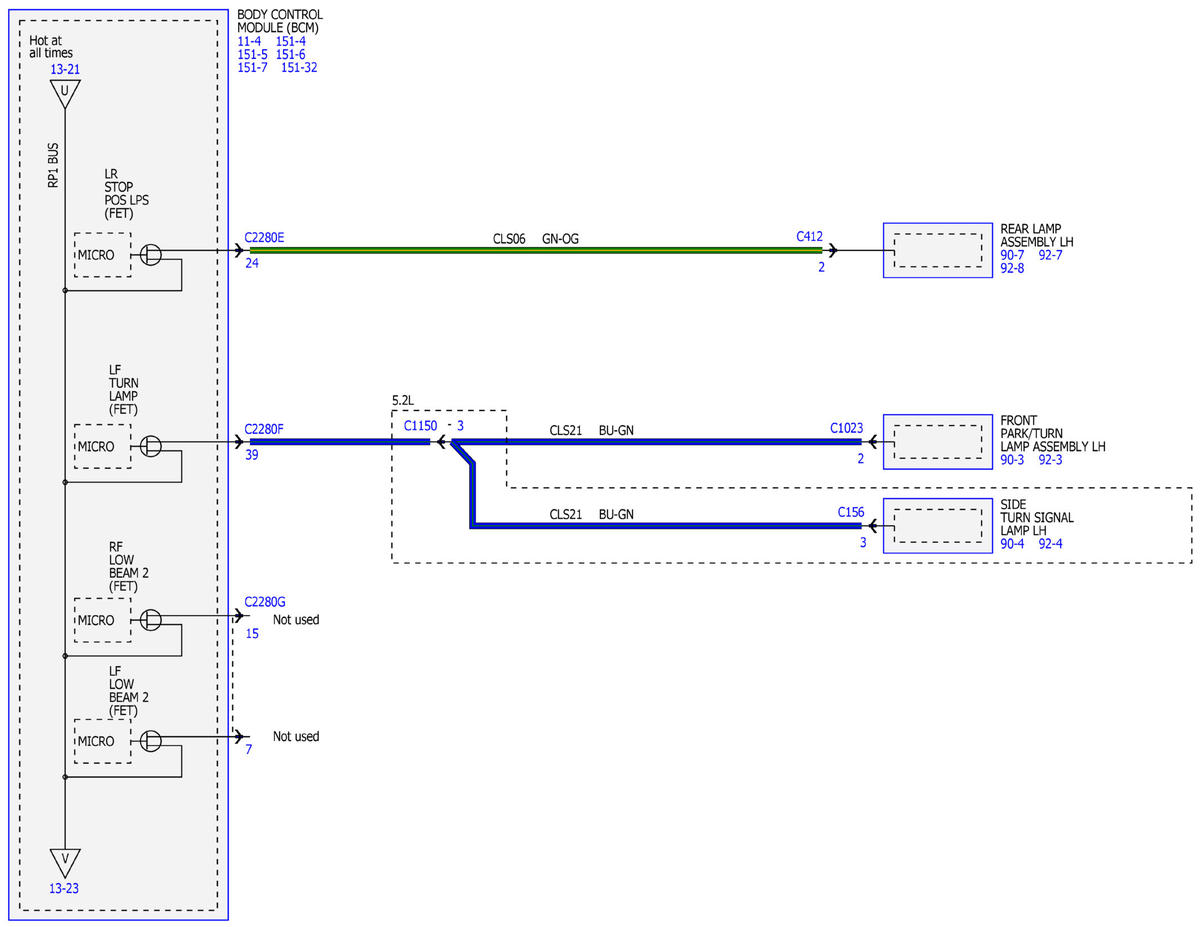

Fig 22: Power Distribution Wiring Diagram (22 Of 39)

GFDWR187674

Courtesy of FORD MOTOR COMPANY

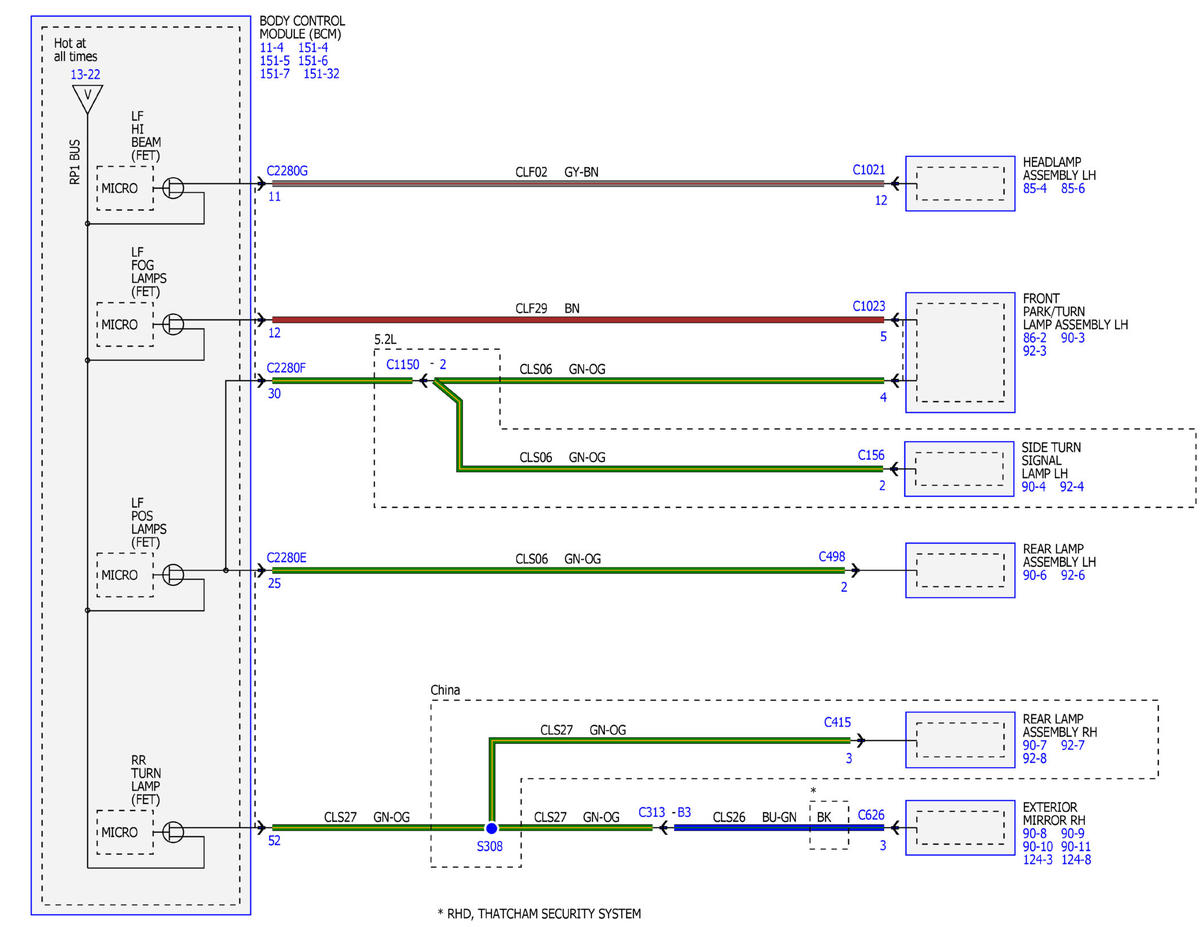

Fig 23: Power Distribution Wiring Diagram (23 Of 39)

GFDWR187675

Courtesy of FORD MOTOR COMPANY

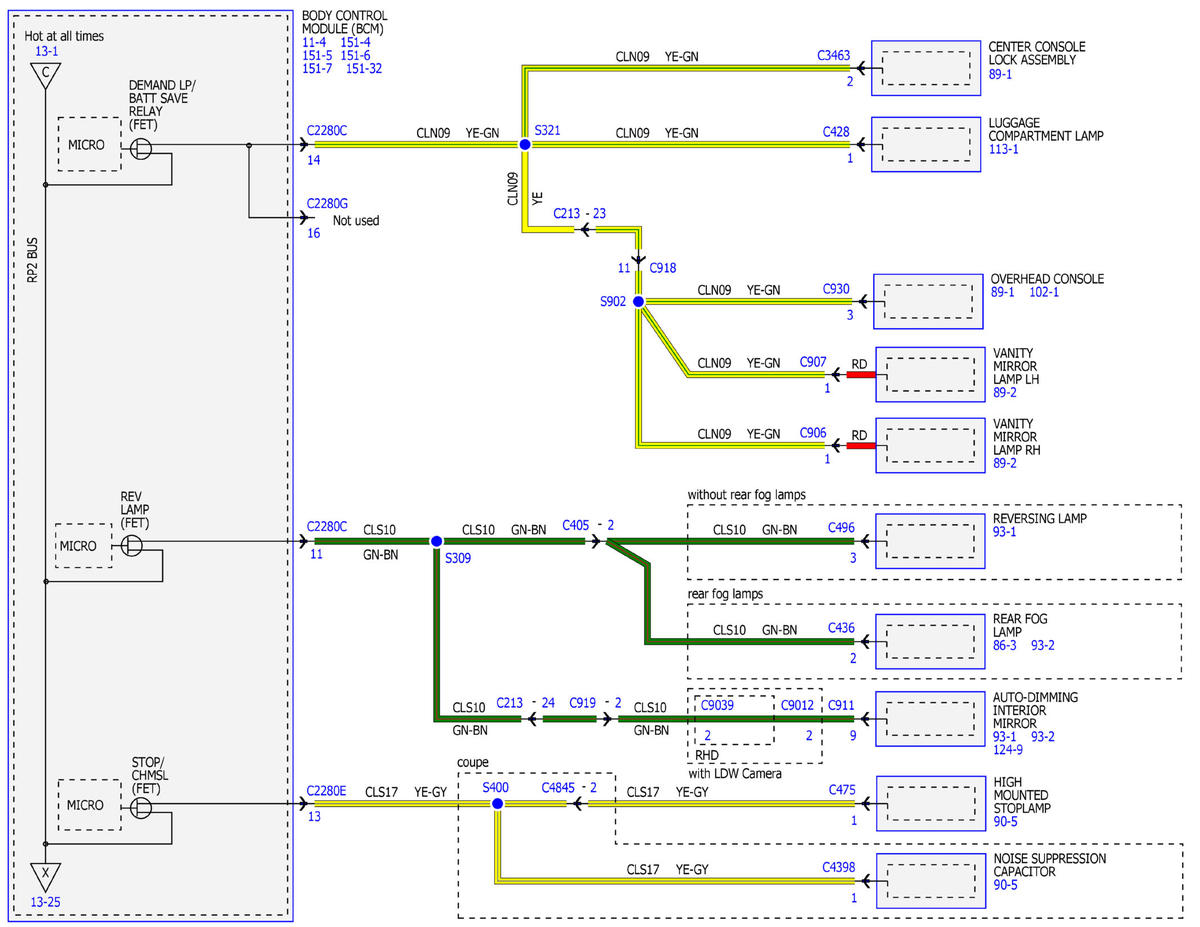

Fig 24: Power Distribution Wiring Diagram (24 Of 39)

GFDWR187676

Courtesy of FORD MOTOR COMPANY

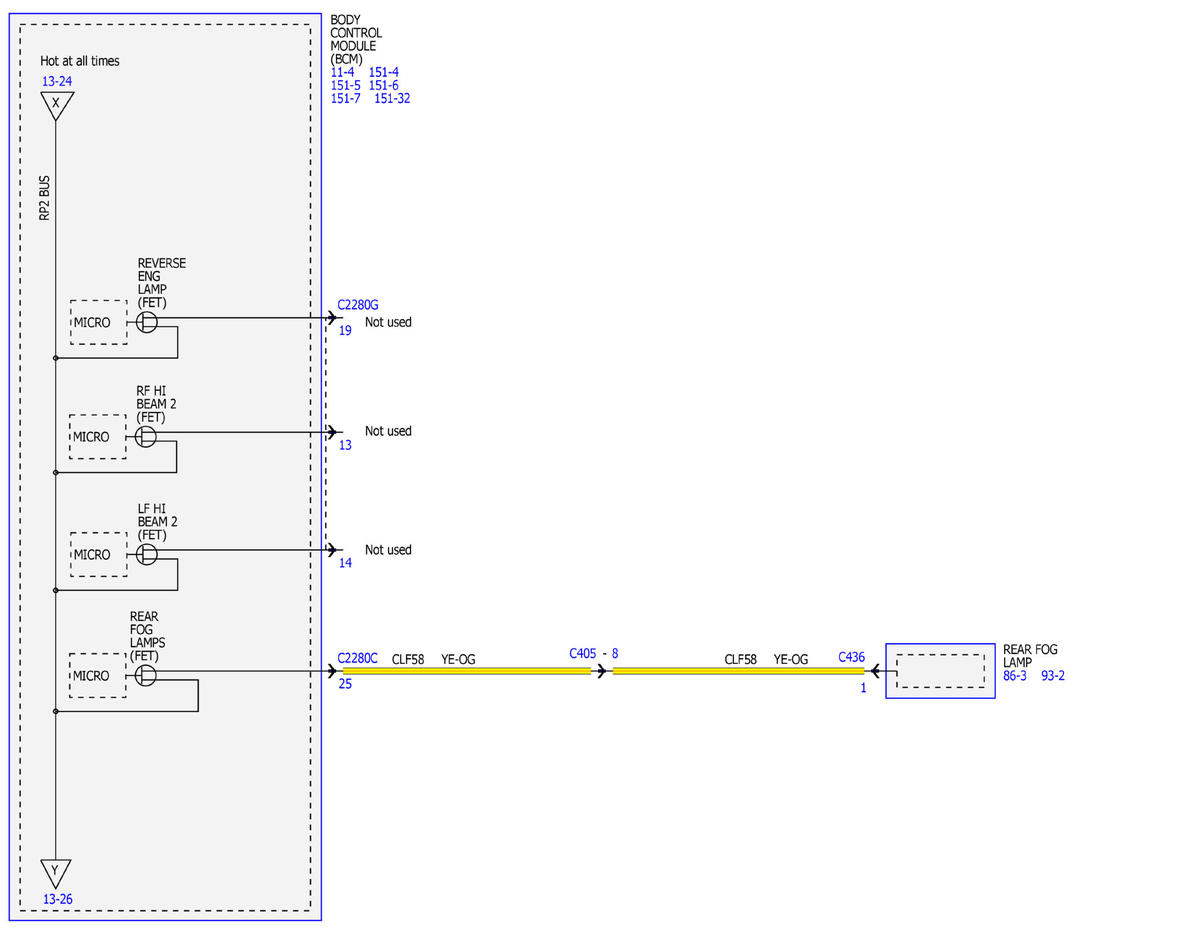

Fig 25: Power Distribution Wiring Diagram (25 Of 39)

GFDWR187677

Courtesy of FORD MOTOR COMPANY

Fig 26: Power Distribution Wiring Diagram (26 Of 39)

GFDWR187678

Courtesy of FORD MOTOR COMPANY

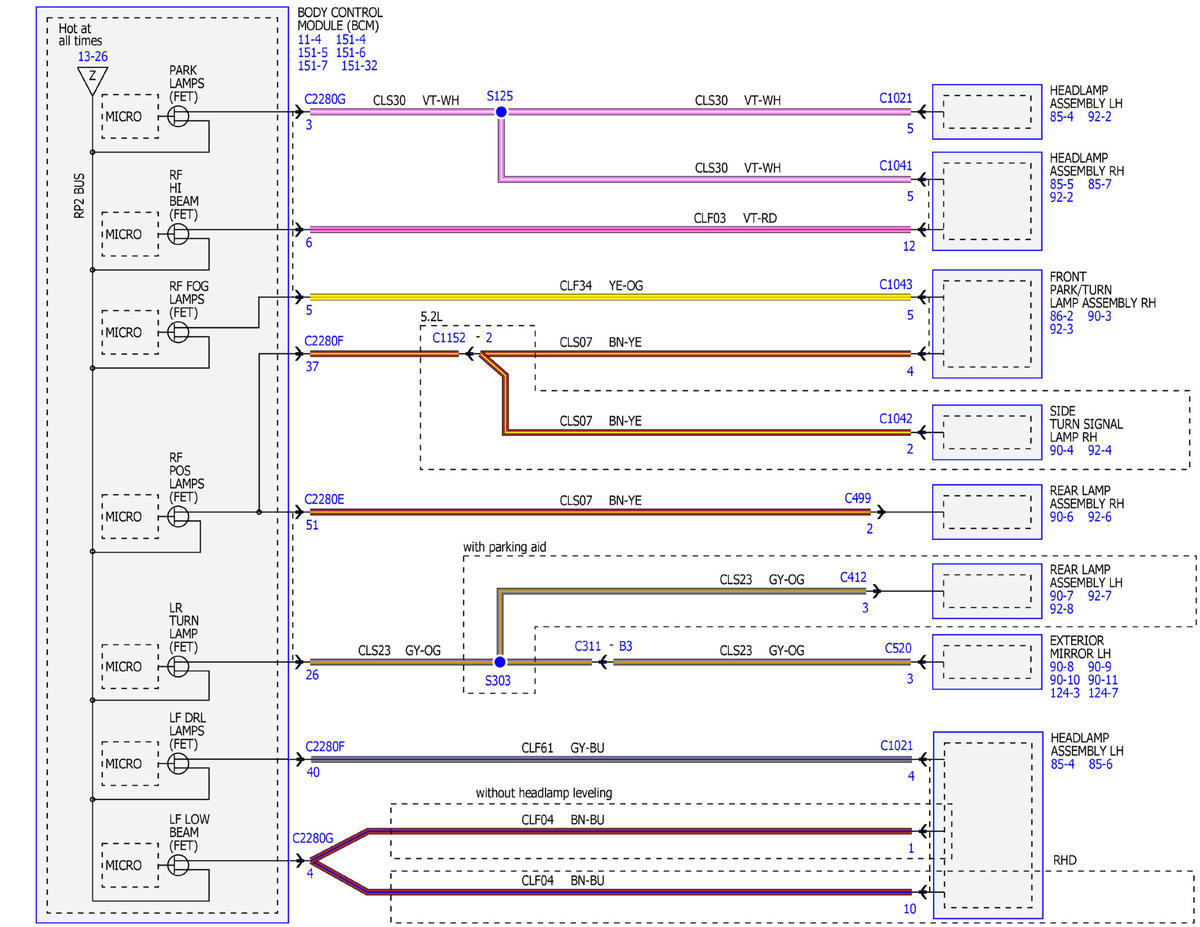

Fig 27: Power Distribution Wiring Diagram (27 Of 39)

GFDWR187679

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution Wiring Diagram (28 Of 39)

G00613704

Courtesy of FORD MOTOR COMPANY

Fig 29: Power Distribution Wiring Diagram (29 Of 39)

G00613705

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution Wiring Diagram (30 Of 39)

GFDWR187681

Courtesy of FORD MOTOR COMPANY

Fig 31: Power Distribution Wiring Diagram (31 Of 39)

GFDWR187682

Courtesy of FORD MOTOR COMPANY

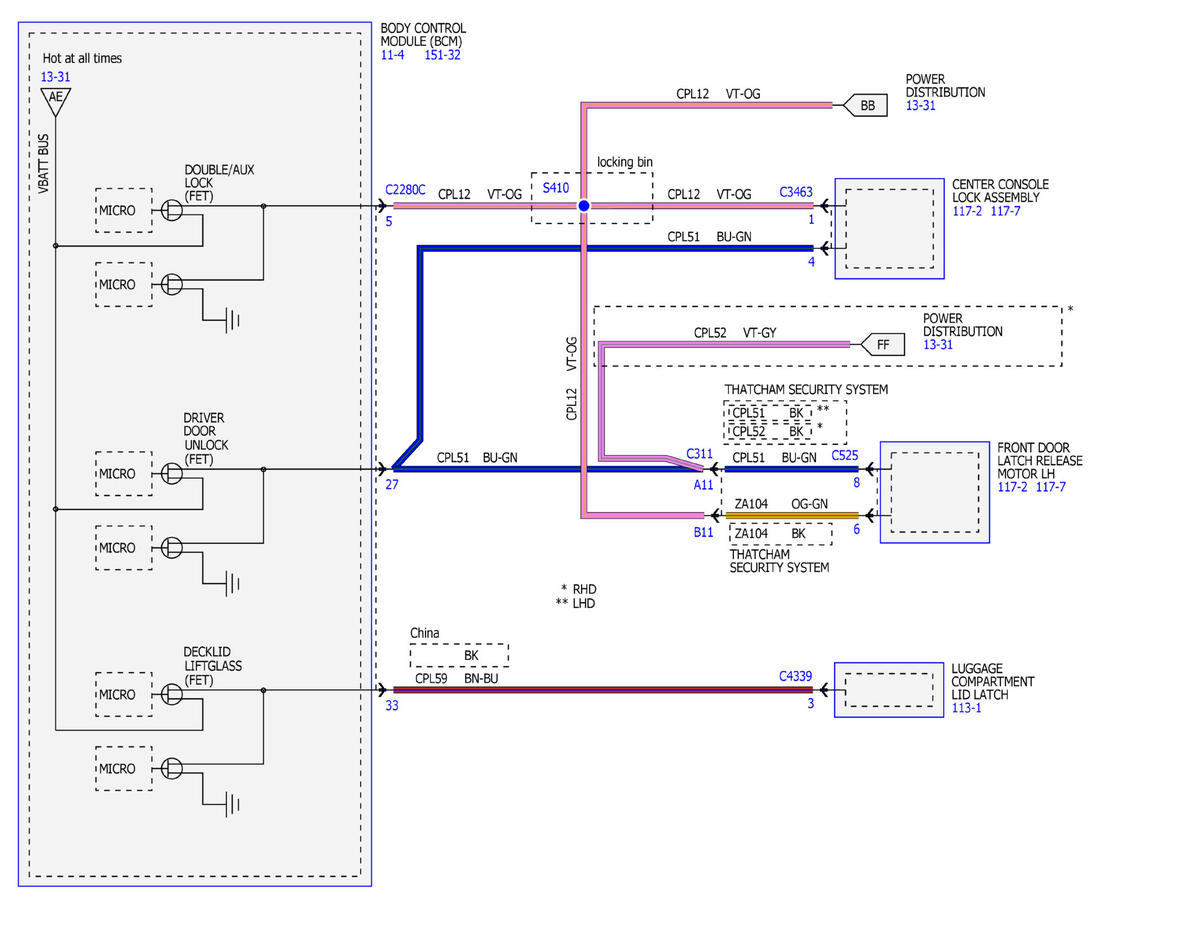

Fig 32: Power Distribution Wiring Diagram (32 Of 39)

GFDWR187683

Courtesy of FORD MOTOR COMPANY

Fig 33: Power Distribution Wiring Diagram (33 Of 39)

GFDWR187684

Courtesy of FORD MOTOR COMPANY

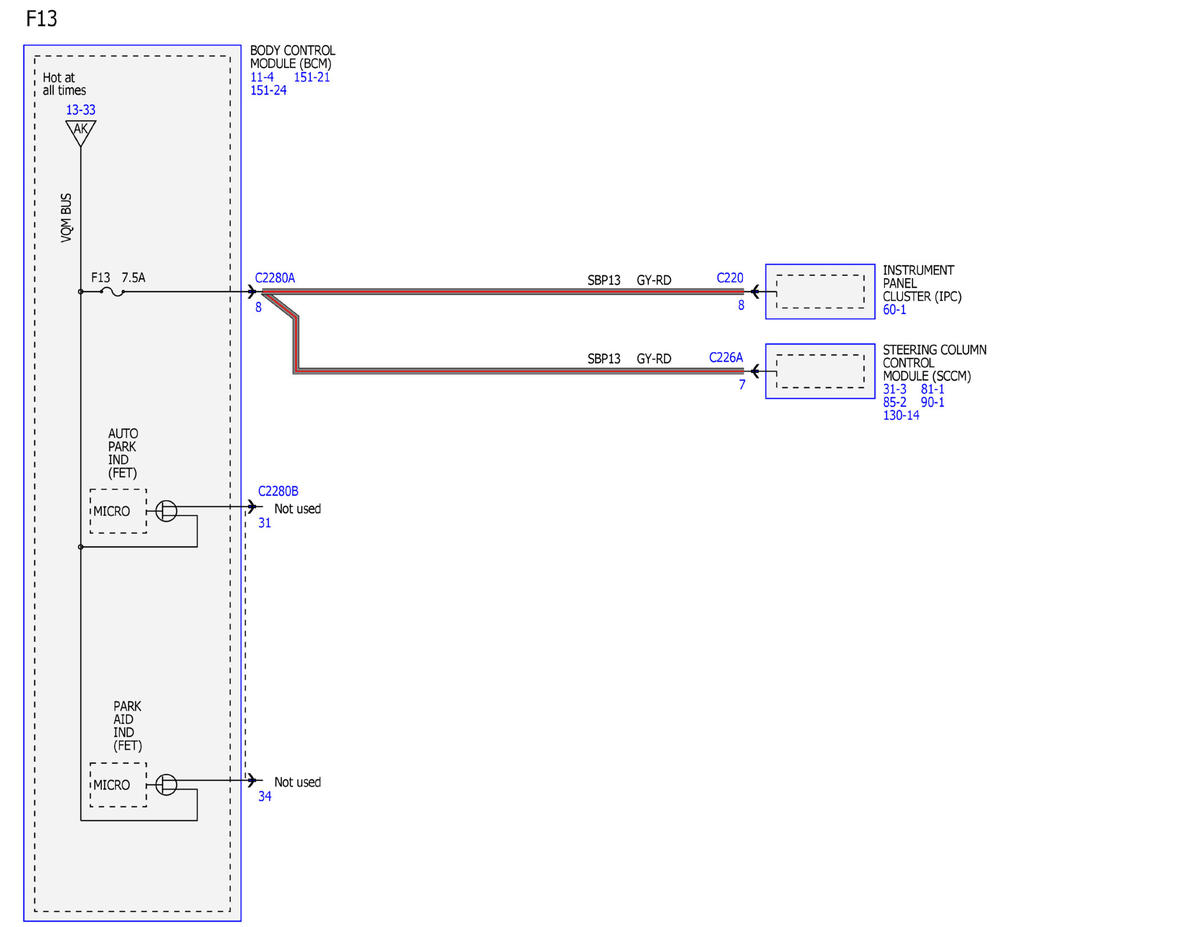

Fig 34: Power Distribution Wiring Diagram (34 Of 39)

GFDWR187685

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution Wiring Diagram (35 Of 39)

GFDWR187686

Courtesy of FORD MOTOR COMPANY

Fig 36: Power Distribution Wiring Diagram (36 Of 39)

GFDWR187687

Courtesy of FORD MOTOR COMPANY

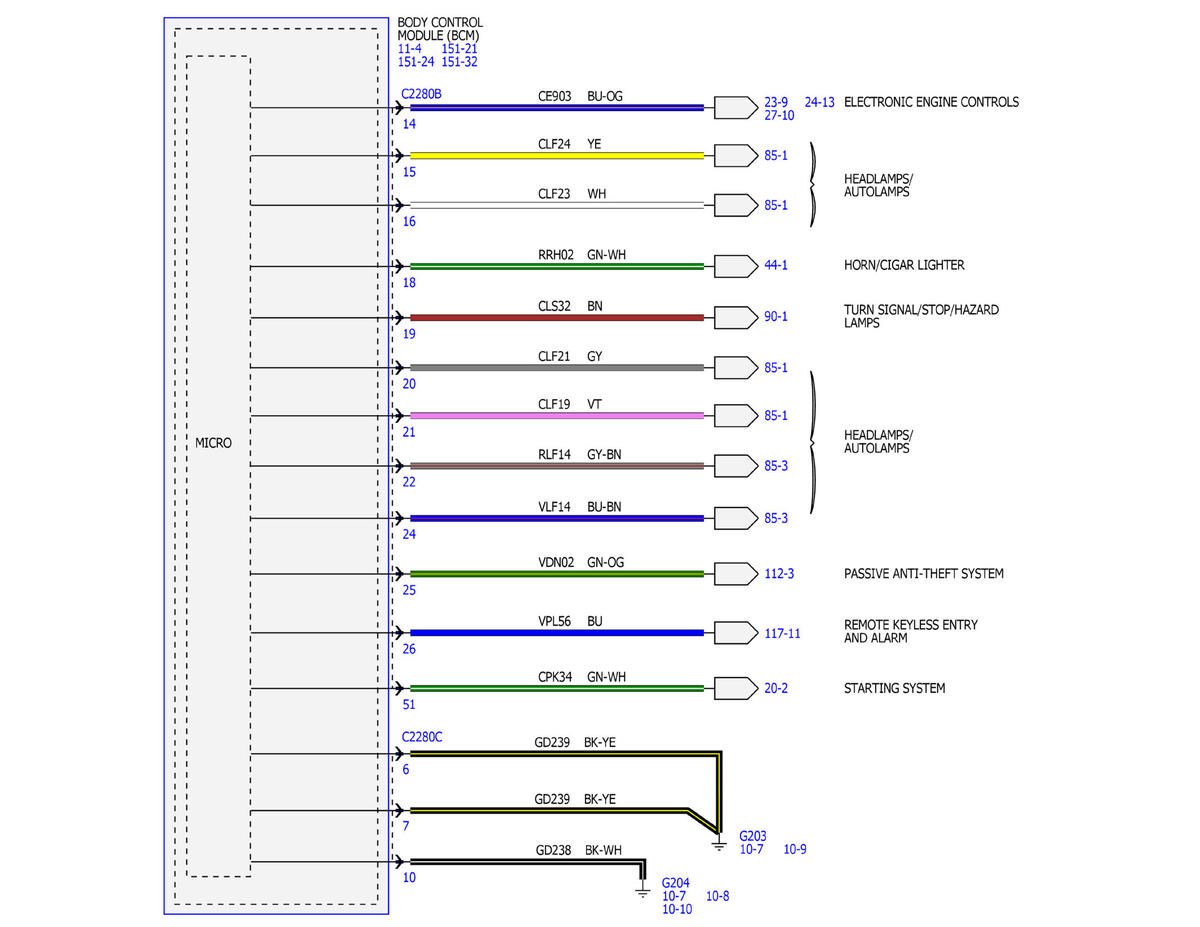

Fig 37: Power Distribution Wiring Diagram (37 Of 39)

GFDWR187688

Courtesy of FORD MOTOR COMPANY

Fig 38: Power Distribution Wiring Diagram (38 Of 39)

GFDWR187689

Courtesy of FORD MOTOR COMPANY

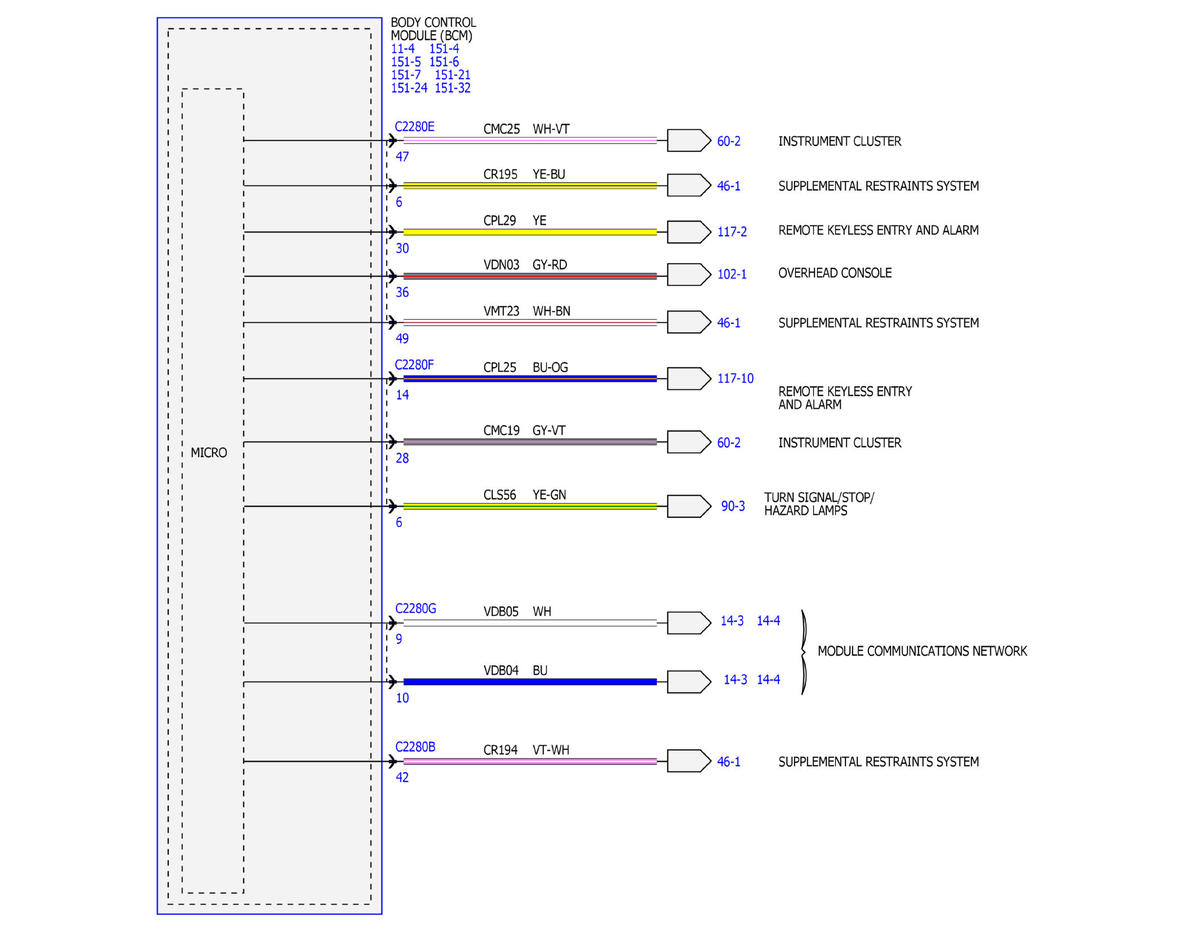

Fig 39: Power Distribution Wiring Diagram (39 Of 39)

GFDWR187690

Courtesy of FORD MOTOR COMPANY
