Electronic Engine Controls - Gt500

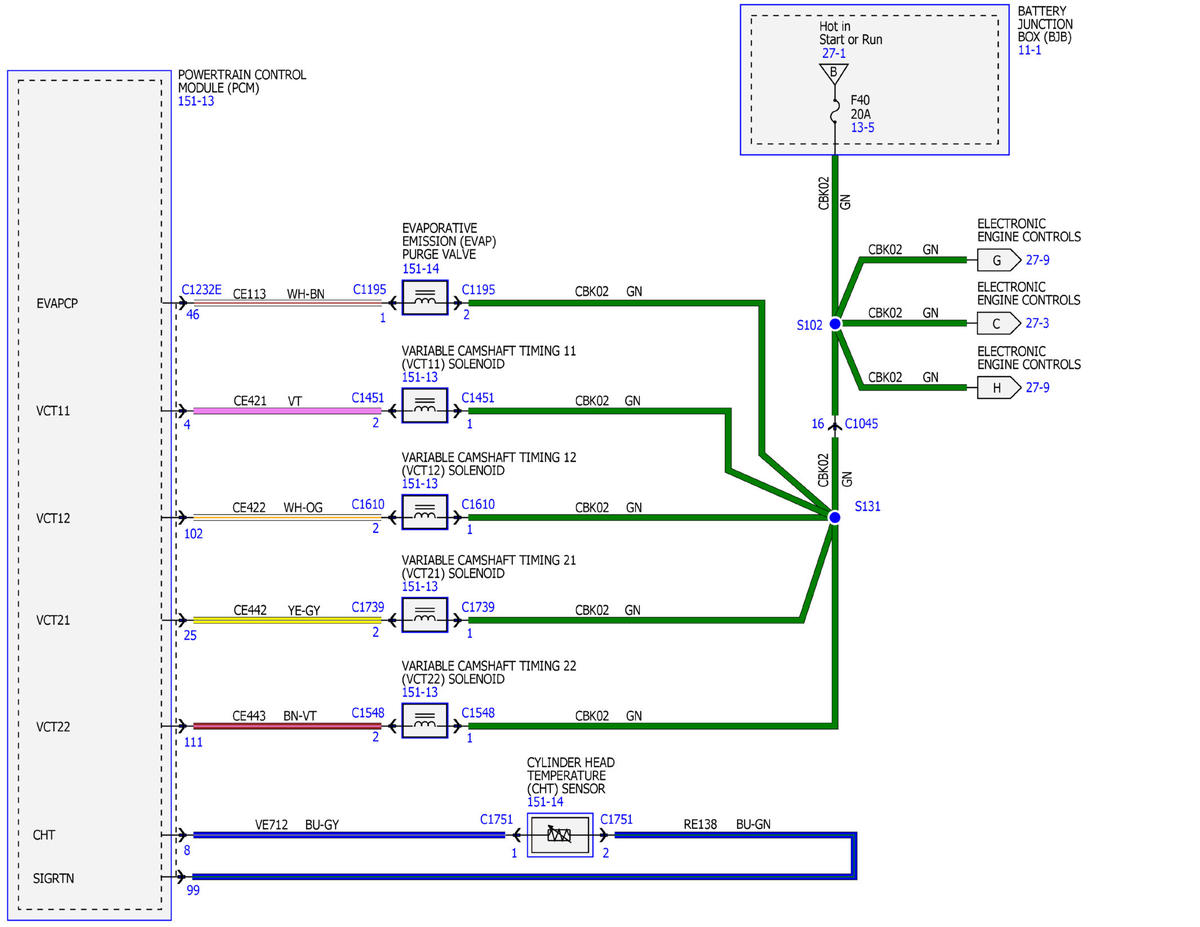

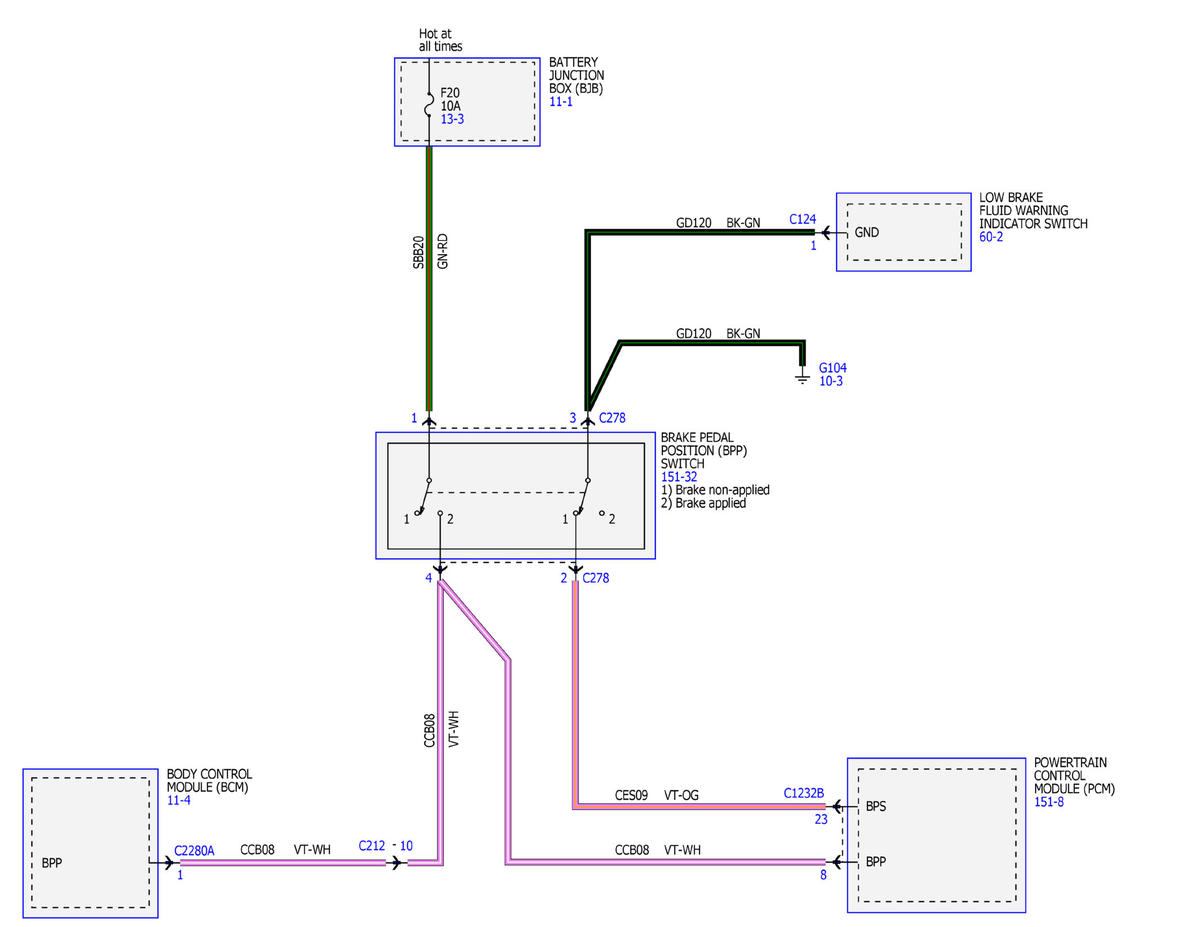

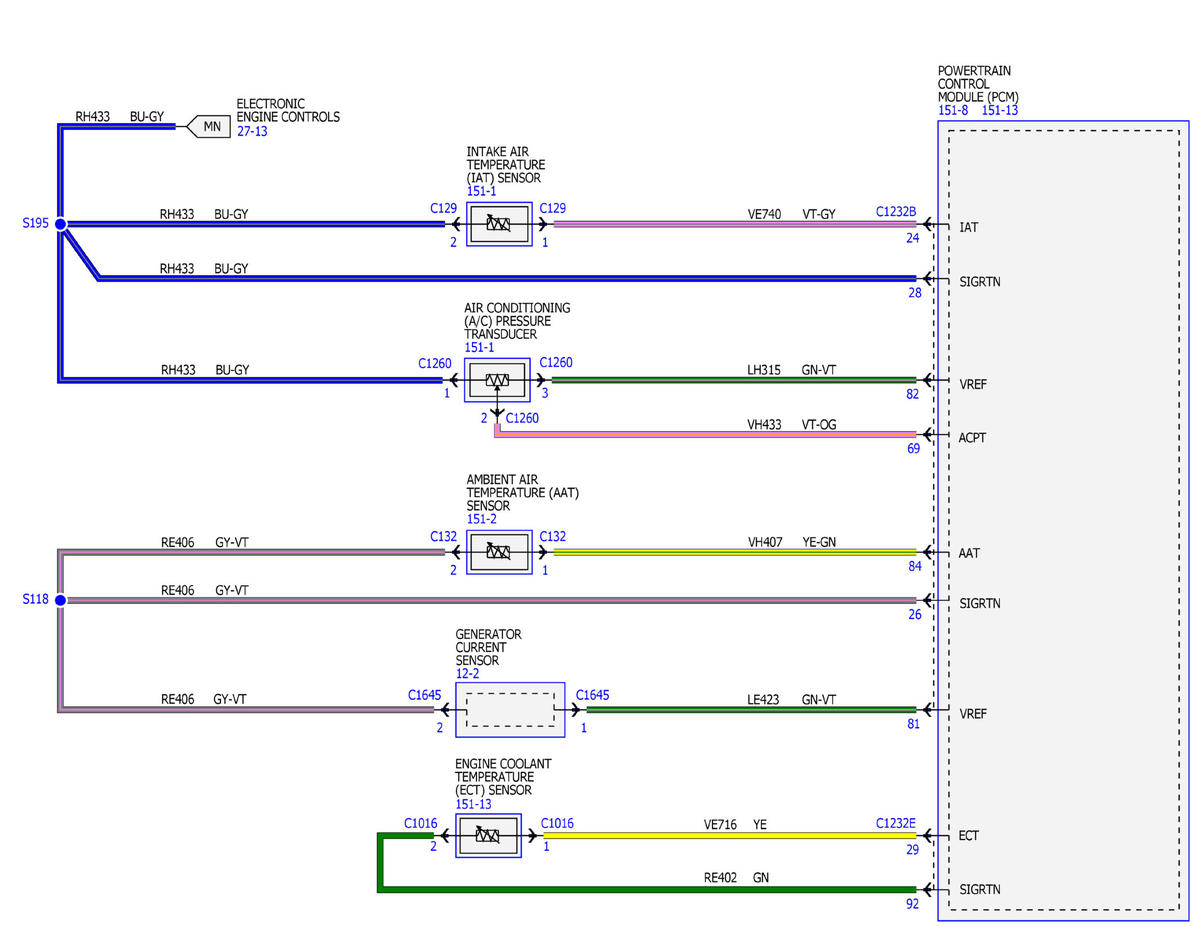

Fig 1: Electronic Engine Controls Wiring Diagram - GT500 (1 Of 17)

Courtesy of FORD MOTOR COMPANY

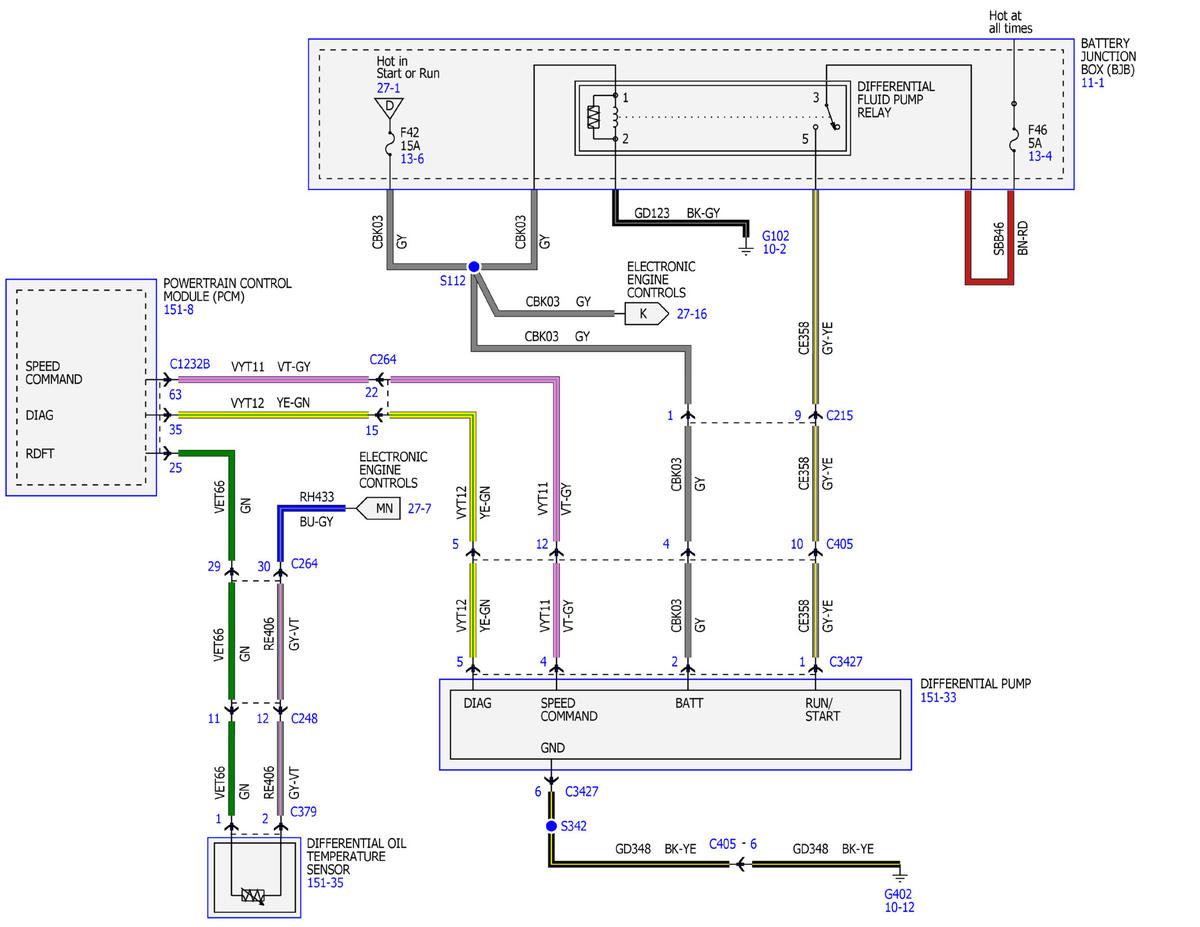

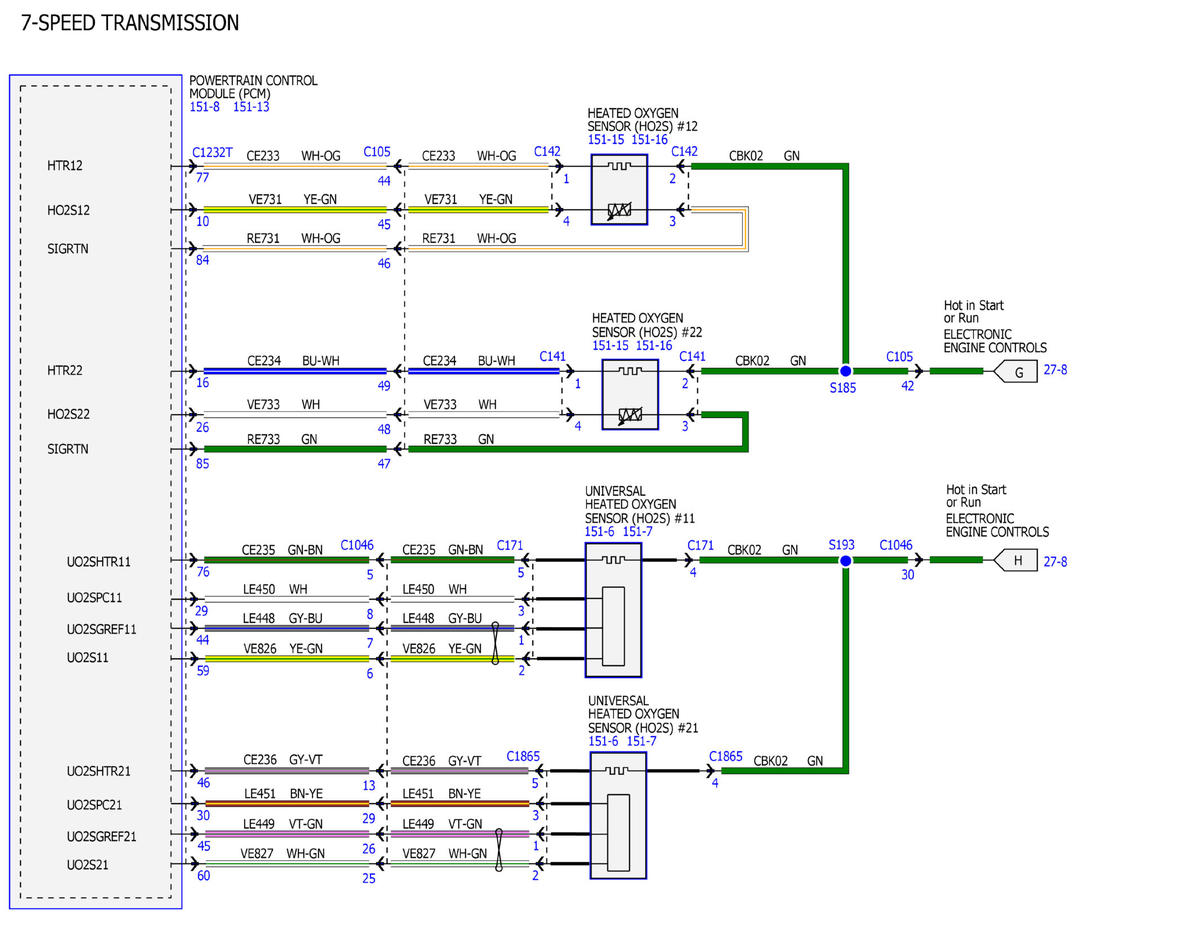

Fig 2: Electronic Engine Controls Wiring Diagram - GT500 (2 Of 17)

Courtesy of FORD MOTOR COMPANY

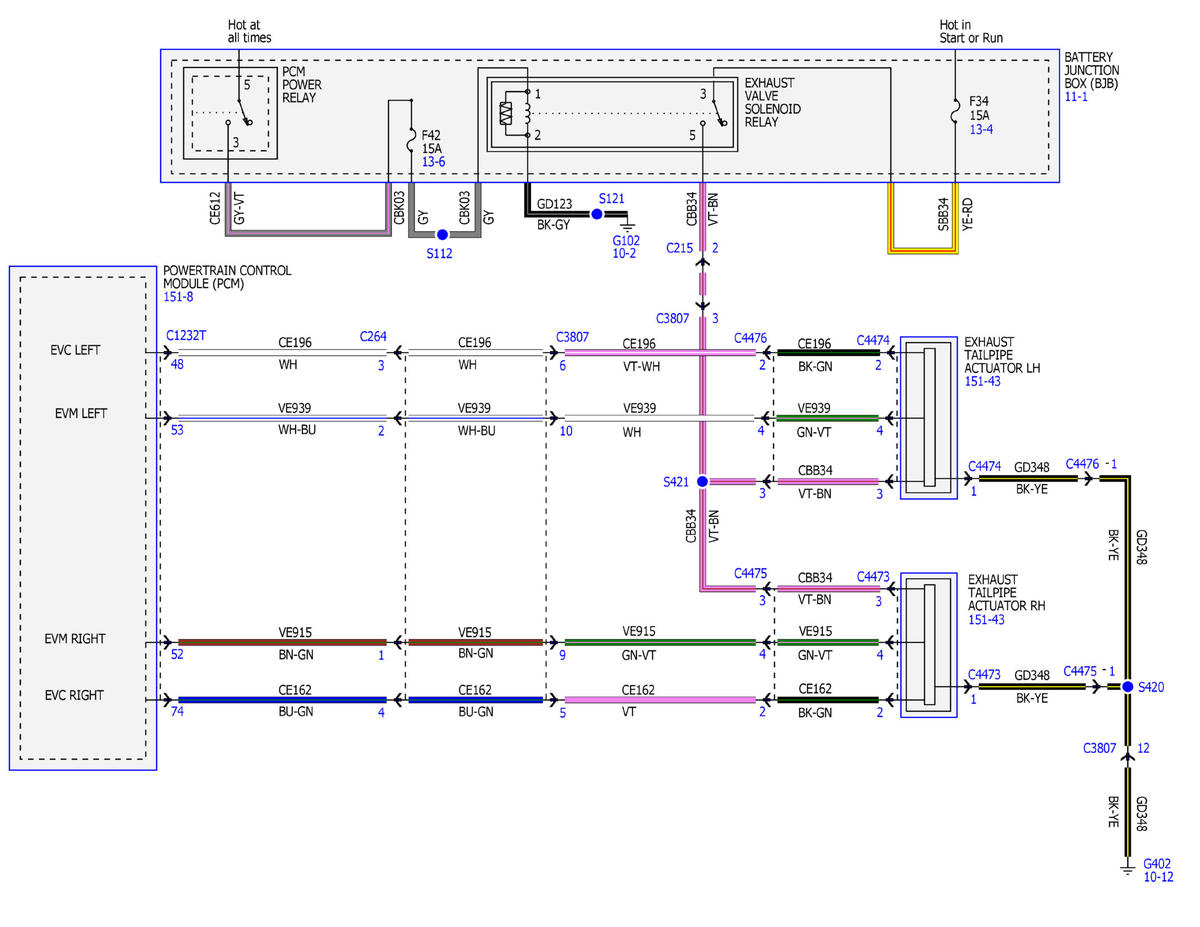

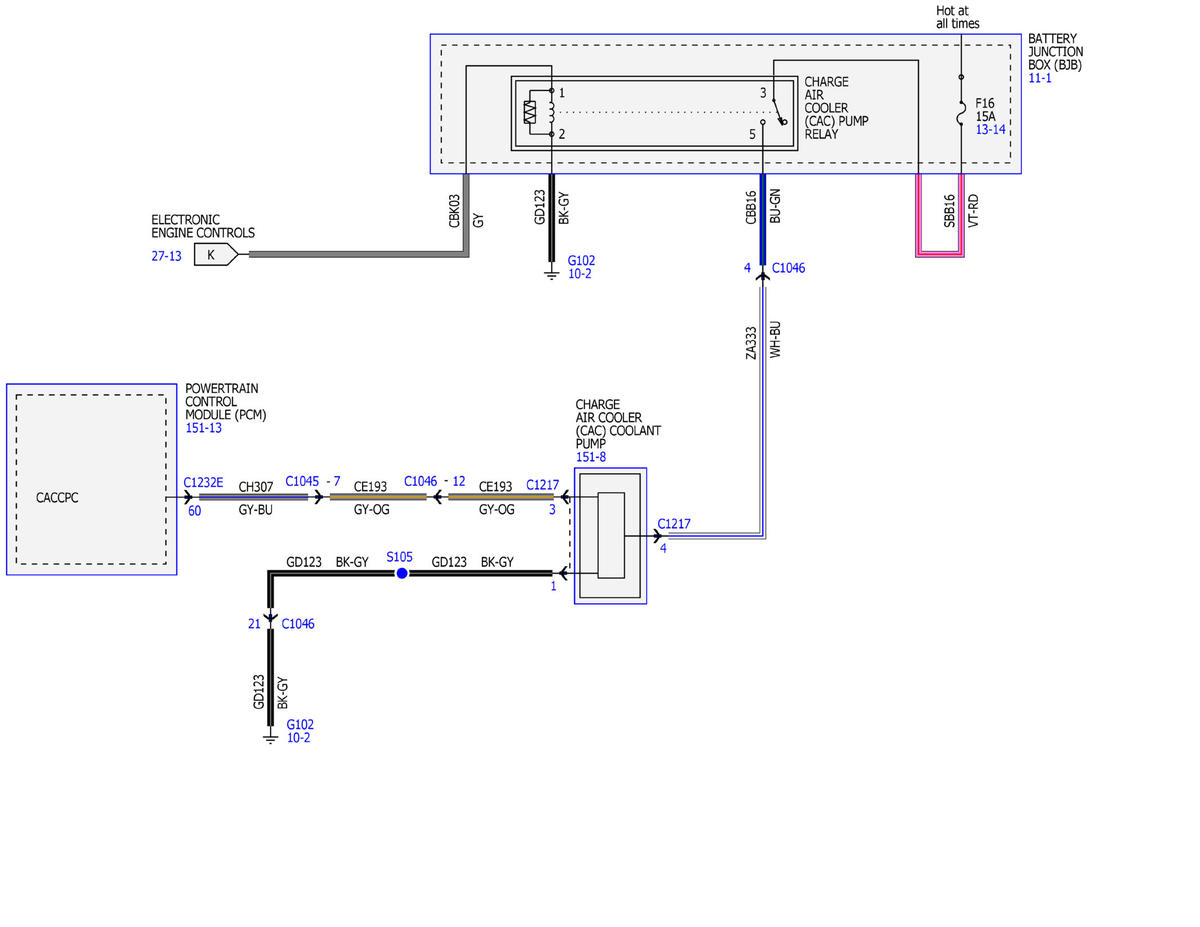

Fig 3: Electronic Engine Controls Wiring Diagram - GT500 (3 Of 17)

Courtesy of FORD MOTOR COMPANY

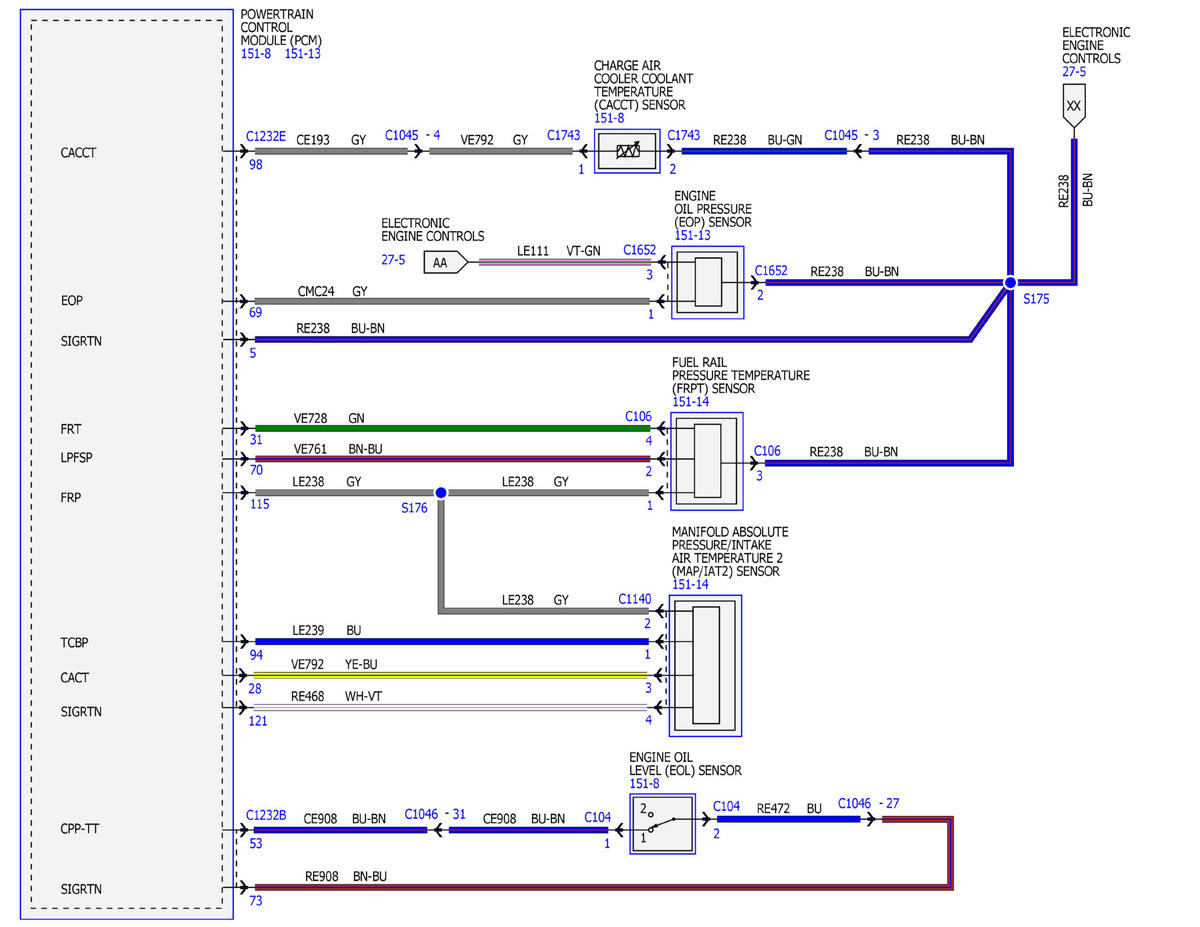

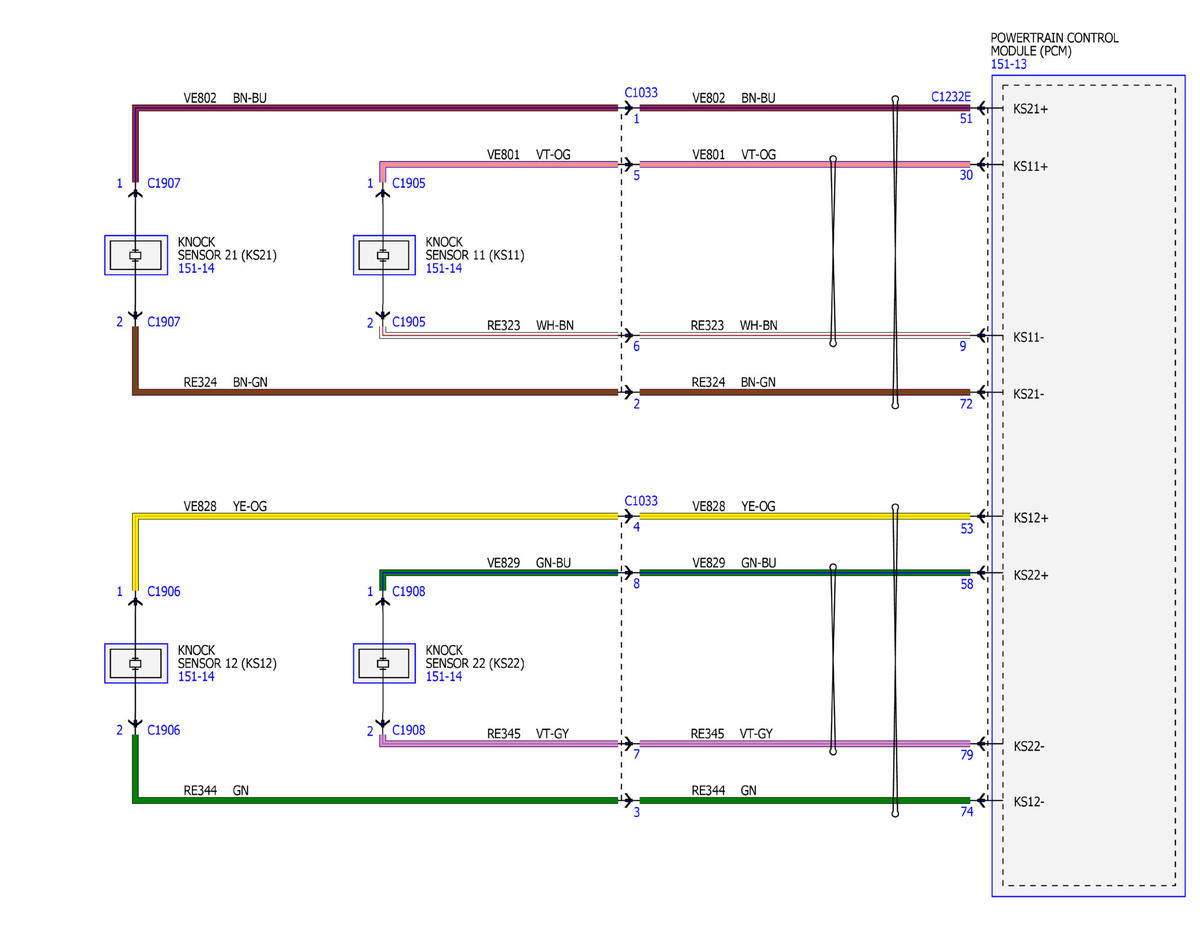

Fig 4: Electronic Engine Controls Wiring Diagram - GT500 (4 Of 17)

Courtesy of FORD MOTOR COMPANY

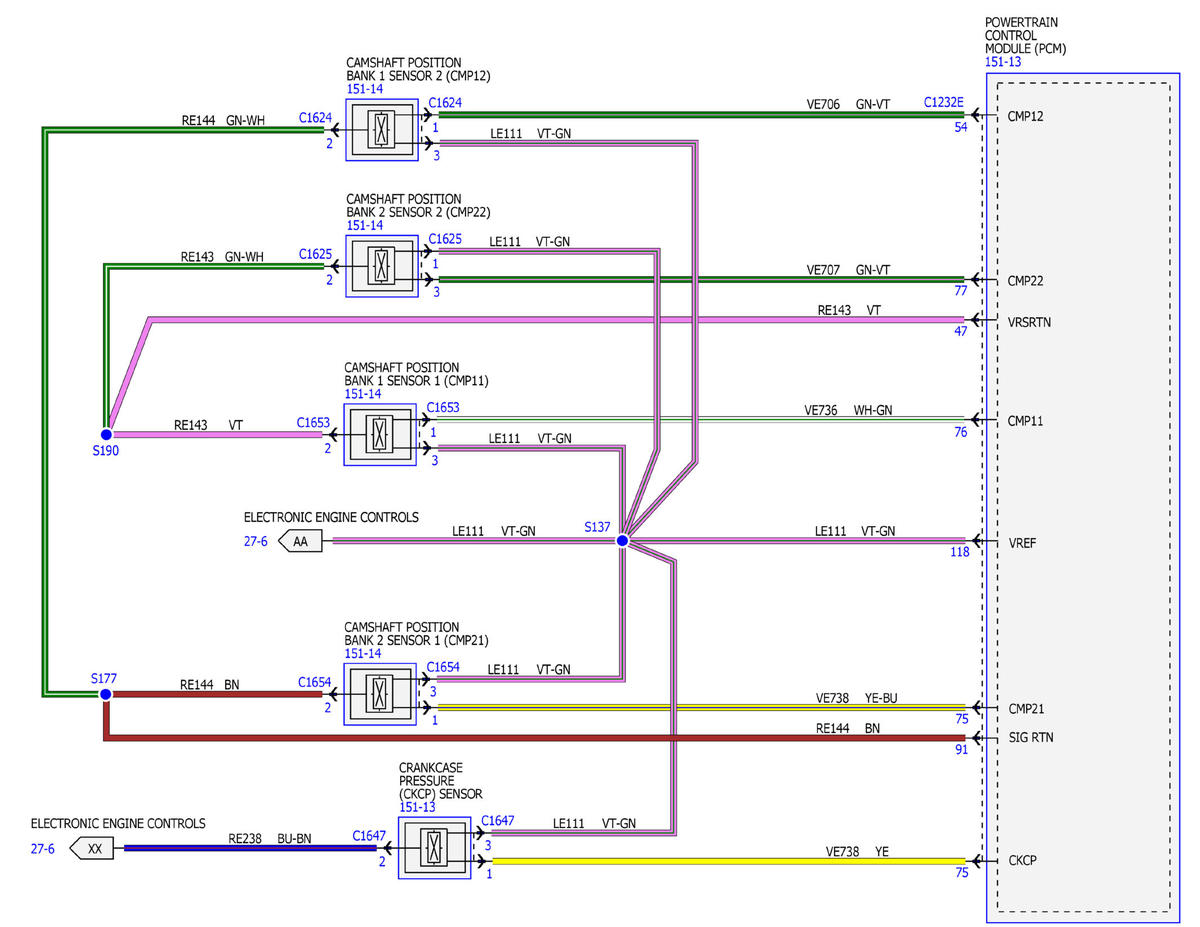

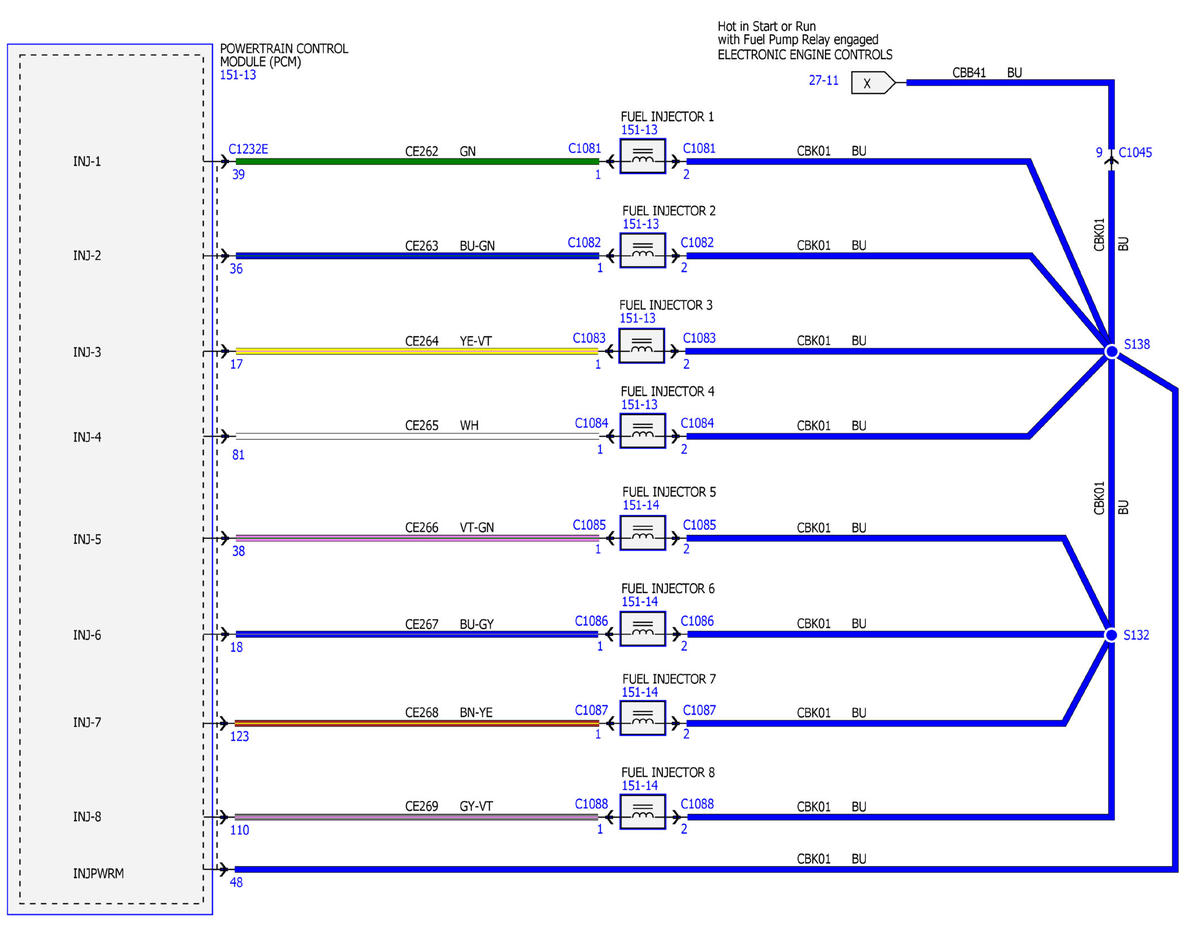

Fig 5: Electronic Engine Controls Wiring Diagram - GT500 (5 Of 17)

Courtesy of FORD MOTOR COMPANY

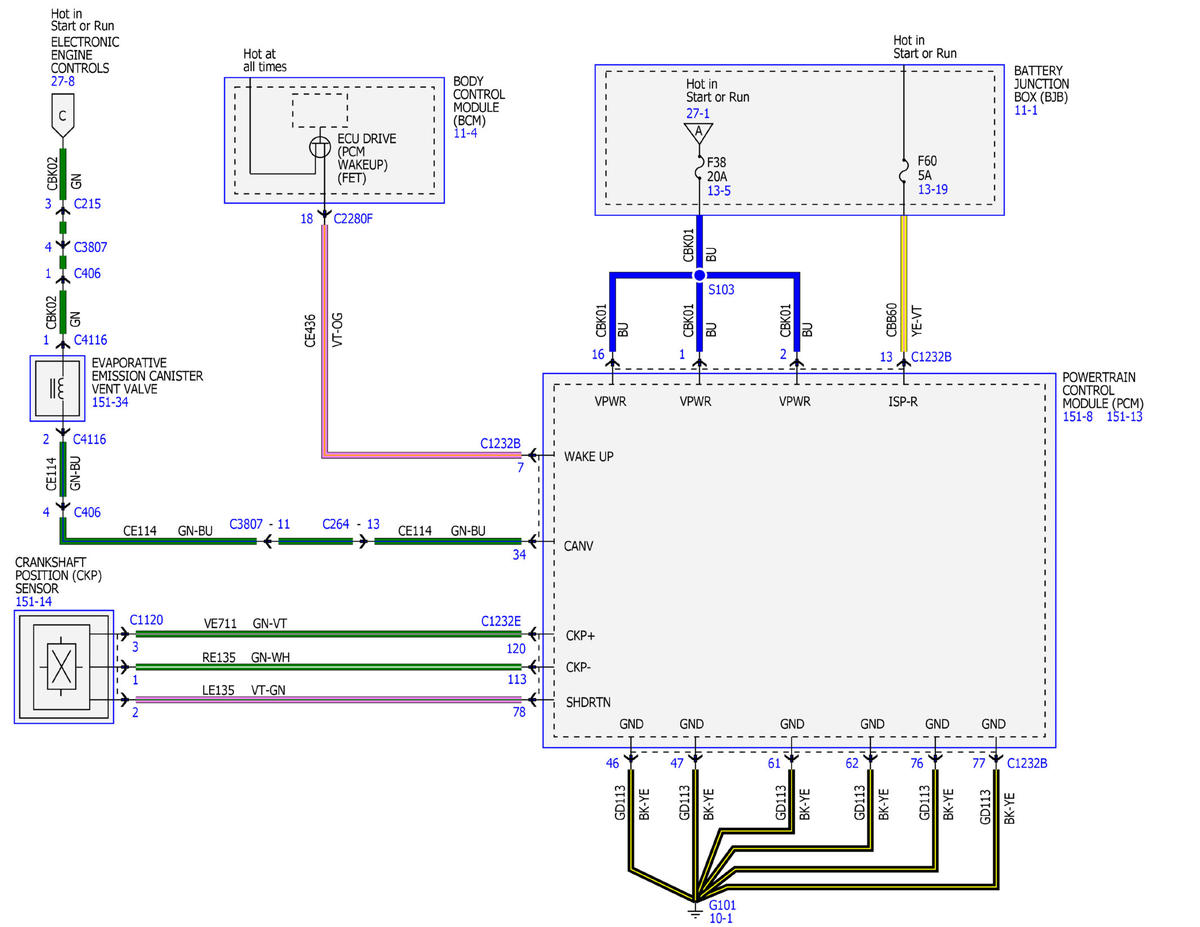

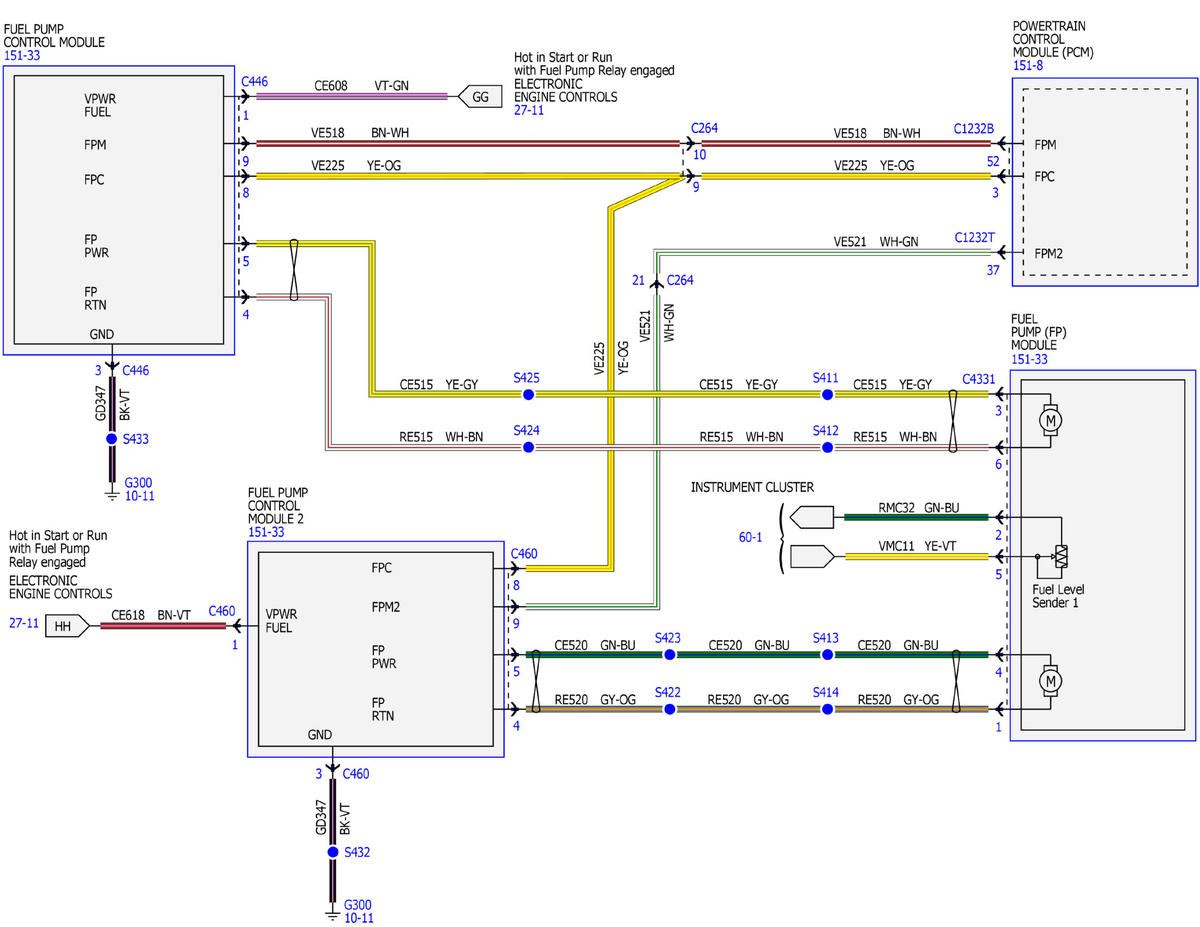

Fig 6: Electronic Engine Controls Wiring Diagram - GT500 (6 Of 17)

Courtesy of FORD MOTOR COMPANY

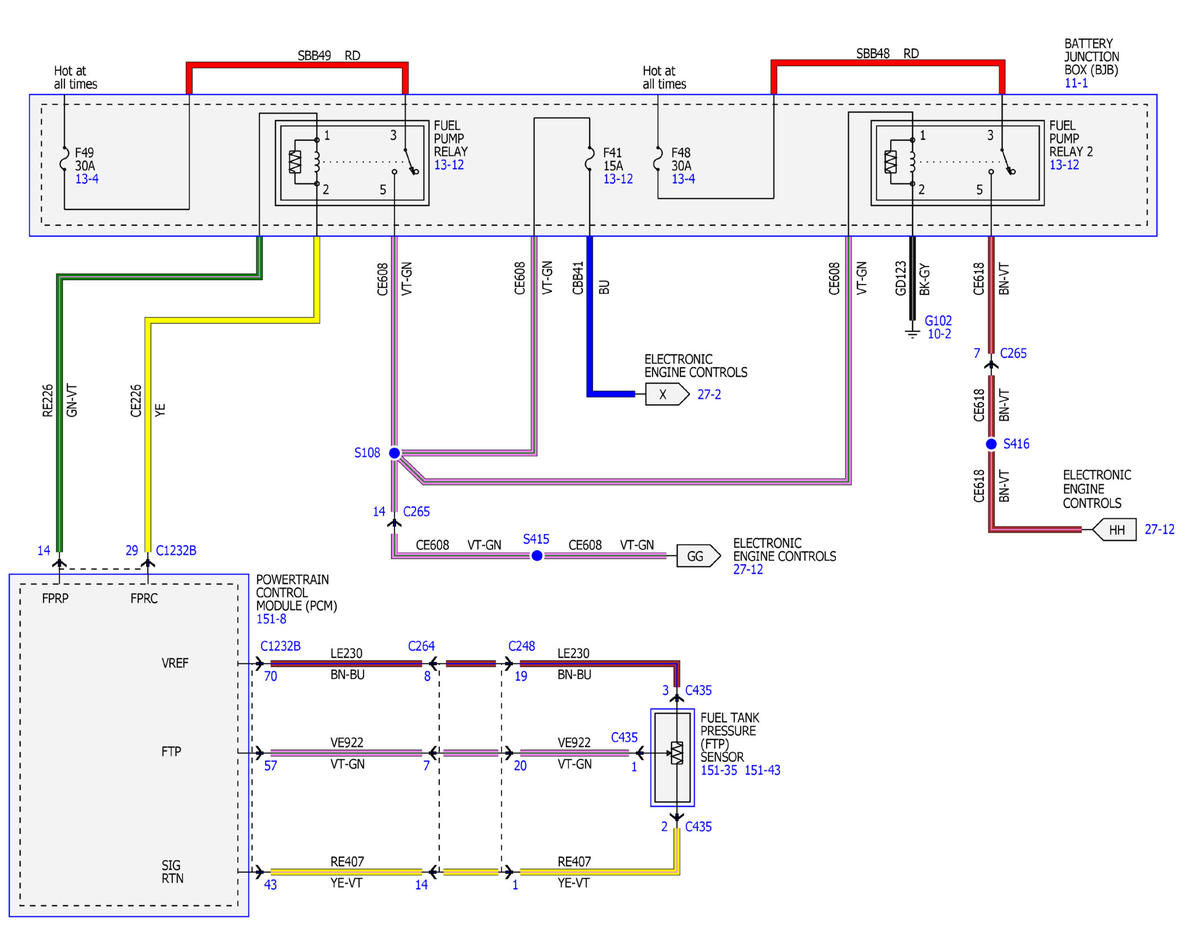

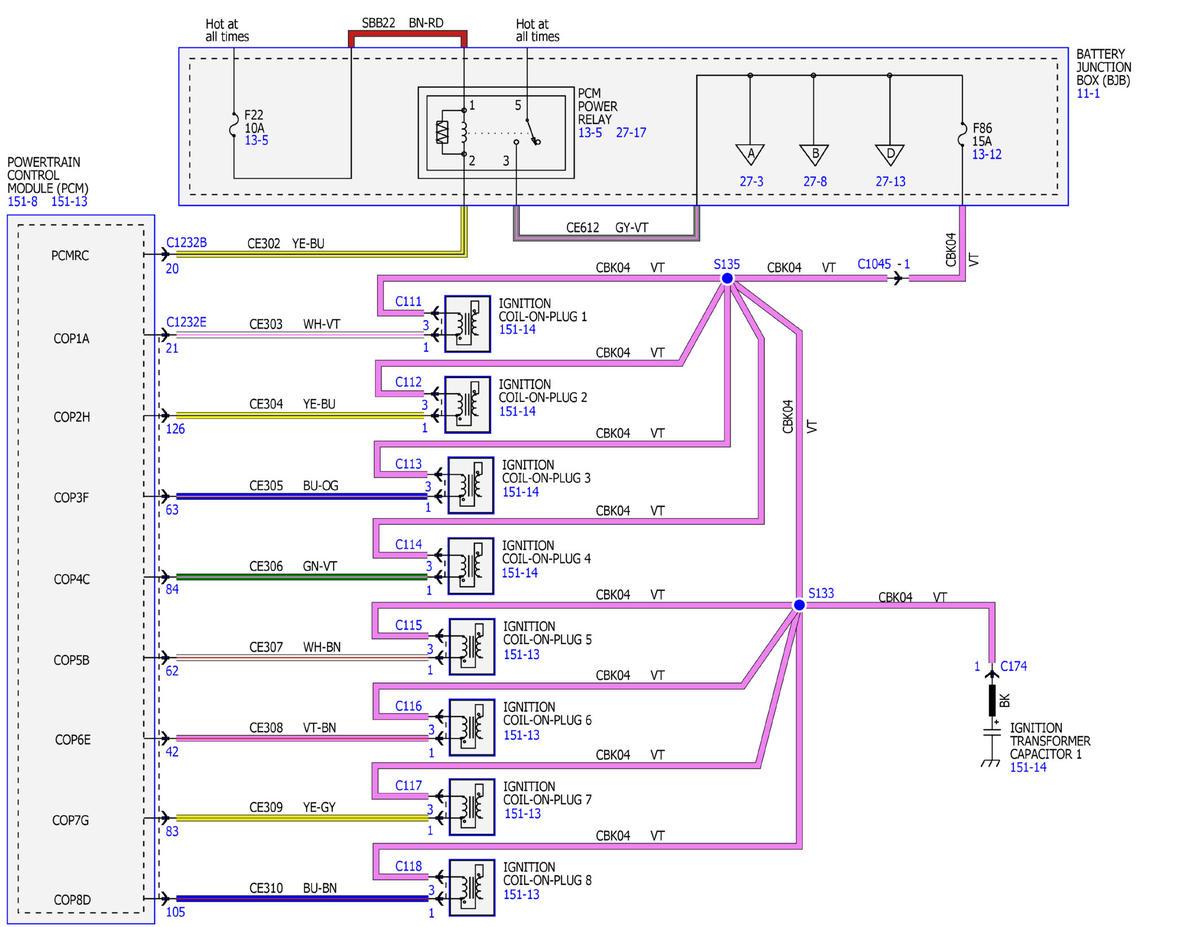

Fig 7: Electronic Engine Controls Wiring Diagram - GT500 (7 Of 17)

Courtesy of FORD MOTOR COMPANY

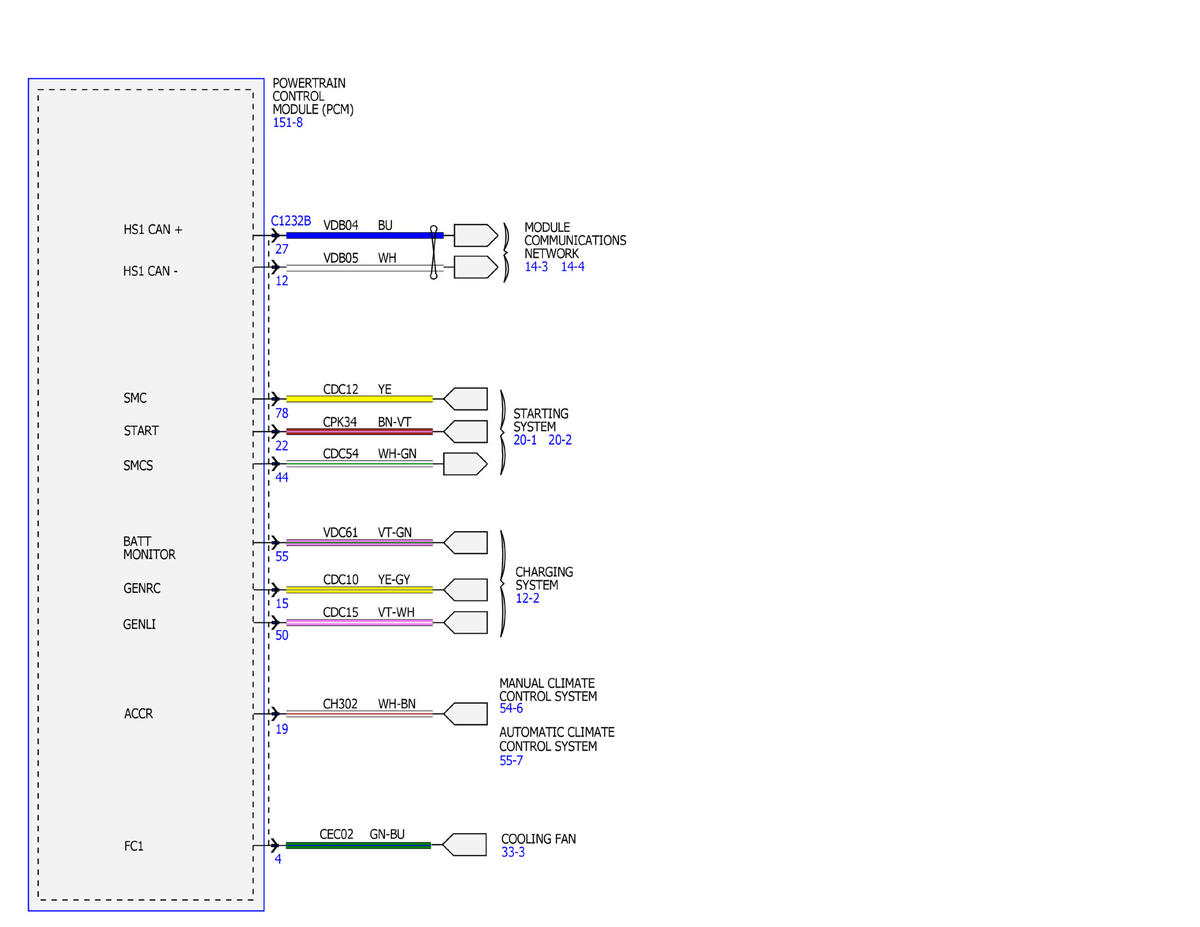

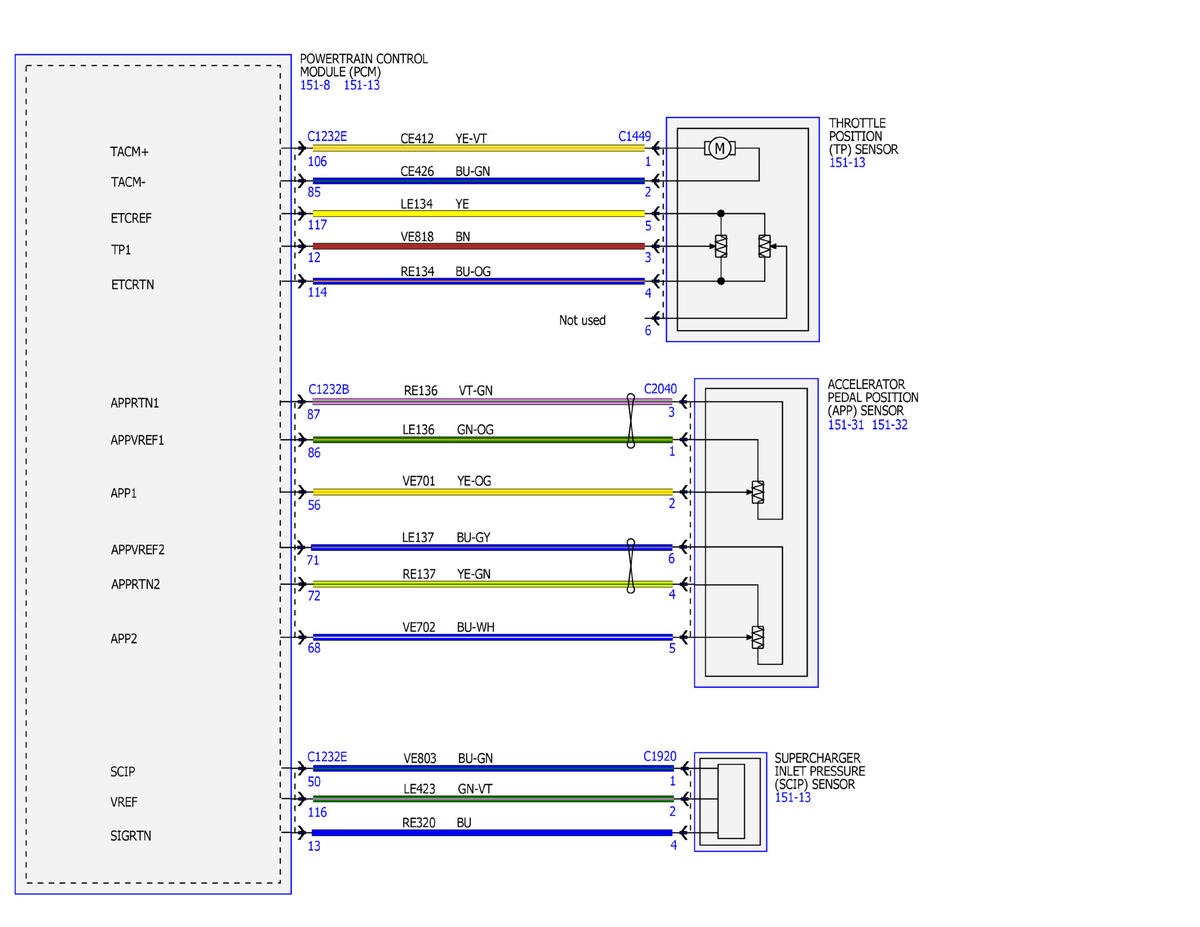

Fig 8: Electronic Engine Controls Wiring Diagram - GT500 (8 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls Wiring Diagram - GT500 (9 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls Wiring Diagram - GT500 (10 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls Wiring Diagram - GT500 (11 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls Wiring Diagram - GT500 (12 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls Wiring Diagram - GT500 (13 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls Wiring Diagram - GT500 (14 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 15: Electronic Engine Controls Wiring Diagram - GT500 (15 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 16: Electronic Engine Controls Wiring Diagram - GT500 (16 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 17: Electronic Engine Controls Wiring Diagram - GT500 (17 Of 17)

Courtesy of FORD MOTOR COMPANY
