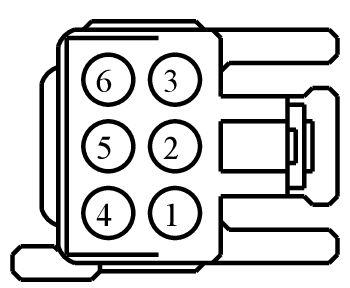

Connector End View C573 - INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C573	INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP LH	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN44 (OG)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED RED +	AU5T-14474-DA
1	CLN44 (BK)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED RED +	AU5T-14474-DA
2	CPL30 (BU-BN)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	AU5T-14474-DA
2	CPL30 (BK)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	AU5T-14474-DA
3	CLN45 (GN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED GREEN +	AU5T-14474-DA
3	CLN45 (BK)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED GREEN +	AU5T-14474-DA
4	RLN44 (BN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED -	AU5T-14474-DA
4	RLN44 (BK)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED -	AU5T-14474-DA
5	CLN46 (BU)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED BLUE +	AU5T-14474-DA
5	CLN46 (BK)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED BLUE +	AU5T-14474-DA
6	CPL87 (BN)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	AU5T-14474-DA
6	CPL87 (BK)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	AU5T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
