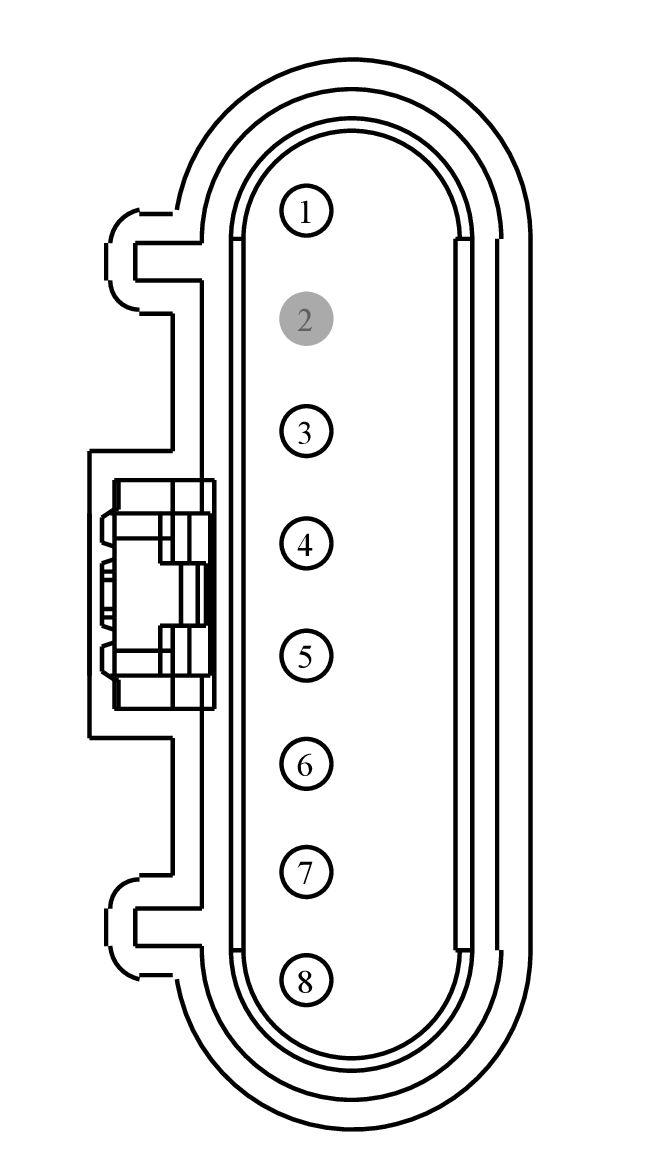

Connector End View C525 - FRONT DOOR LATCH RELEASE MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C525	FRONT DOOR LATCH RELEASE MOTOR LH	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	LU2Z-14474-CA	1.50
98BG-14474-AKA	LU2Z-14474-CA	1.50
97BG-14474-AEA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL29 (BK)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # SET	97BG-14474-ADA
1	CPL29 (YE-GY)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # SET	97BG-14474-ADA
2	*	*	Not Used	N/A
3	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	97BG-14474-ADA
3	CPL26 (BK)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	97BG-14474-ADA
4	CPL30 (BU-BN)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	97BG-14474-ADA
4	CPL30 (BK)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	97BG-14474-ADA
5	GD233 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT	97BG-14474-ADA
5	RPL61 (BN-GN)	22	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER	97BG-14474-ADA
6	ZA104 (BK)	14	TEMPORARY NO. - 4	with convertible	98BG-14474-AKA
6	ZA104 (OG-GN)	14	TEMPORARY NO. - 4	with convertible	98BG-14474-AKA
7	CPL11 (GY-BN)	16	CTRL MOD. - DOOR LOCK # ALL LOCK	97BG-14474-AEA
7	CPL11 (BK)	16	CTRL MOD. - DOOR LOCK # ALL LOCK	97BG-14474-AEA
8	CPL51 (BU-GN)	16	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	97BG-14474-AEA
8	CPL51 (BK)	16	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1366

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MBB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - LH - Front
• Actuator - Door Lock - LH - Rear
• Actuator - Door Lock - RH - Front
• Actuator - Door Lock - RH - Rear
• Module - Liftgate
• Switch - Door Ajar / Interior Lamp
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
• Switch - Sliding Door Contact
