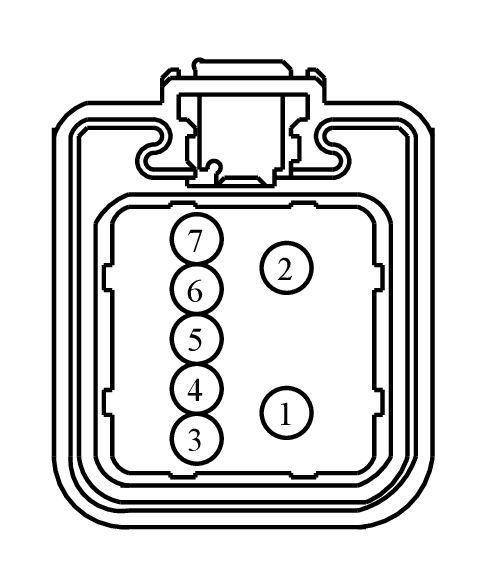

Connector End View C518 - DOOR WINDOW REGULATOR MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C518	DOOR WINDOW REGULATOR MOTOR LH	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1F1T-14474-JA	DU2Z-14474-FA	2.80
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB11 (BU-RD)	14	FUSE - 11 OR CIRCUIT BREAKER	1F1T-14474-JA
1	SBB11 (BK)	22	FUSE - 11 OR CIRCUIT BREAKER	1F1T-14474-JA
2	GD233 (BK)	14	GROUND - COWL SIDE/PILLAR A LEFT	1F1T-14474-JA
2	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT	1F1T-14474-JA
3	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	8U5T-14474-BB
3	CBP23 (BK)	22	FUSE - 23 OR CIRCUIT BREAKER	8U5T-14474-BB
4	CPW11 (BU-GY)	22	SWITCH - POWER WINDOW DRIVER # DRIVER UP	8U5T-14474-BB
4	CPW34 (BU)	22	CTRL MOD. - WINDOW MOTOR DRIVER # UP (IF POSITIVE)	8U5T-14474-BB
4	CPW11 (BK)	22	SWITCH - POWER WINDOW DRIVER # DRIVER UP	8U5T-14474-BB
5	CPW10 (YE-VT)	22	SWITCH - POWER WINDOW DRIVER # DRIVER DOWN	8U5T-14474-BB
5	CPW35 (GN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # DOWN (IF POSITIVE)	8U5T-14474-BB
5	CPW10 (BK)	22	SWITCH - POWER WINDOW DRIVER # DRIVER DOWN	8U5T-14474-BB
6	CPW73 (GN-RD)	22	CTRL MOD. - POWER WINDOW GLOBAL DOWN	8U5T-14474-BB
6	CPW73 (BK)	22	CTRL MOD. - POWER WINDOW GLOBAL DOWN	8U5T-14474-BB
7	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	8U5T-14474-BB
7	CPL26 (BK)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	8U5T-14474-BB

Available Pigtail Kits

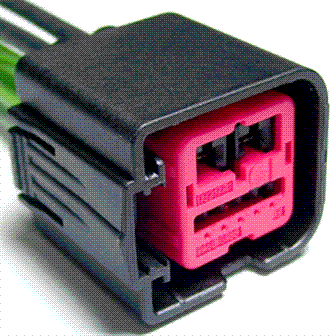

Pigtail Kit Part Number WPT-1209

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ASA

Gauge:

12 18

Pin material:

Tin & Silver

Cavities:

7

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
