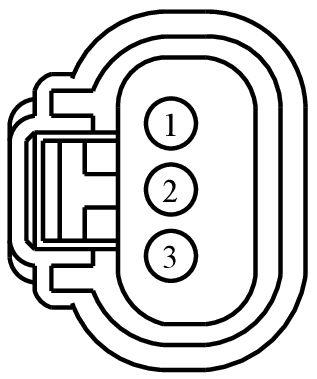

Connector End View C1107 - OUTPUT SHAFT SPEED (OSS) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1107	OUTPUT SHAFT SPEED (OSS) SENSOR	BK	14B060	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	LU2Z-14474-CA	1.50
97BG-14474-AHA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE111 (VT-GN)	22	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	97BG-14474-ADA
2	VET26 (BN-GN)	20	SENSOR - OUTPUT SHAFT SPEED -	RHD	97BG-14474-ADA
2	VET26 (BN-BN)	22	SENSOR - OUTPUT SHAFT SPEED -	LHD	97BG-14474-AHA
3	RET24 (BN-BU)	22	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	LHD	97BG-14474-AHA
3	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	RHD	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Turbine Shaft Speed
• Switch - Fuel Delivery Pressure
