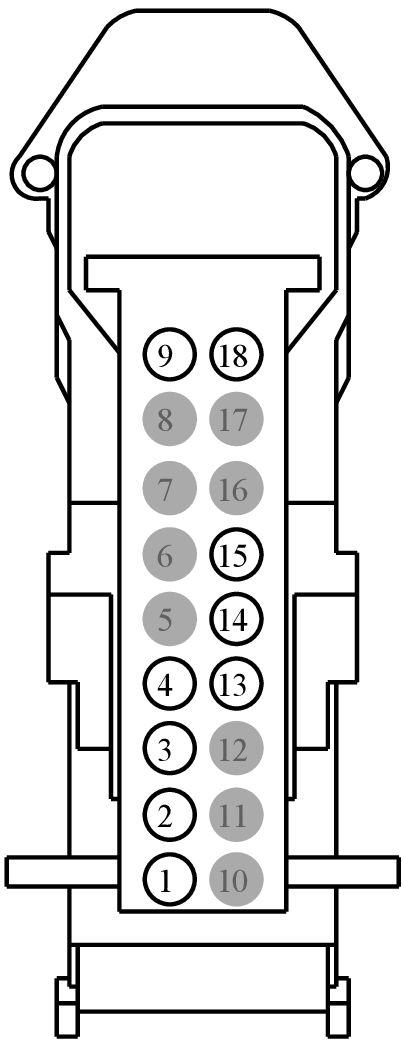

Connector End View C2532 - GEAR SHIFT MODULE (GSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2532	GEAR SHIFT MODULE (GSM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2L1T-14474-LA	KU2Z-14474-GA	0.64
2L1T-14474-AA	KU2Z-14474-GA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	2L1T-14474-AA
2	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	2L1T-14474-AA
3	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	2L1T-14474-AA
4	CPL30 (BU-BN)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	2L1T-14474-AA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	2L1T-14474-LA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	VDB36 (BN-YE)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2	2L1T-14474-AA
14	VDB35 (BU-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 HIGH	2L1T-14474-AA
15	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	2L1T-14474-AA
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	2L1T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1399

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-LA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

18

Vehicle Uses:

• Module - Gear Shift
