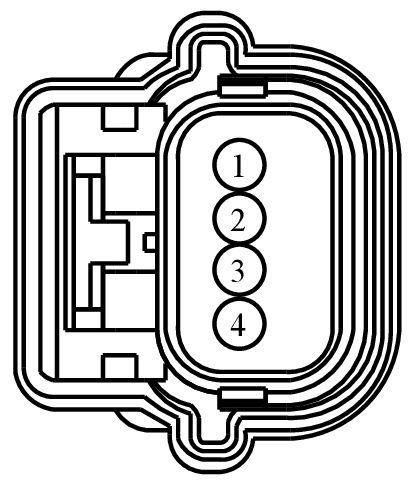

Connector End View C2478 - CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2478	CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR	BK	12638	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-AB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE757 (WH)	22	SENSOR - CLUTCH MASTER CYLINDER 2 (CPP2)	BU5T-14474-AB
2	LE456 (YE-BU)	22	CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER +	BU5T-14474-AB
3	VE772 (YE)	22	SENSOR - CLUTCH MASTER CYLINDER 1 (CPP1)	BU5T-14474-AB
4	RE456 (BU)	22	CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER -	BU5T-14474-AB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
