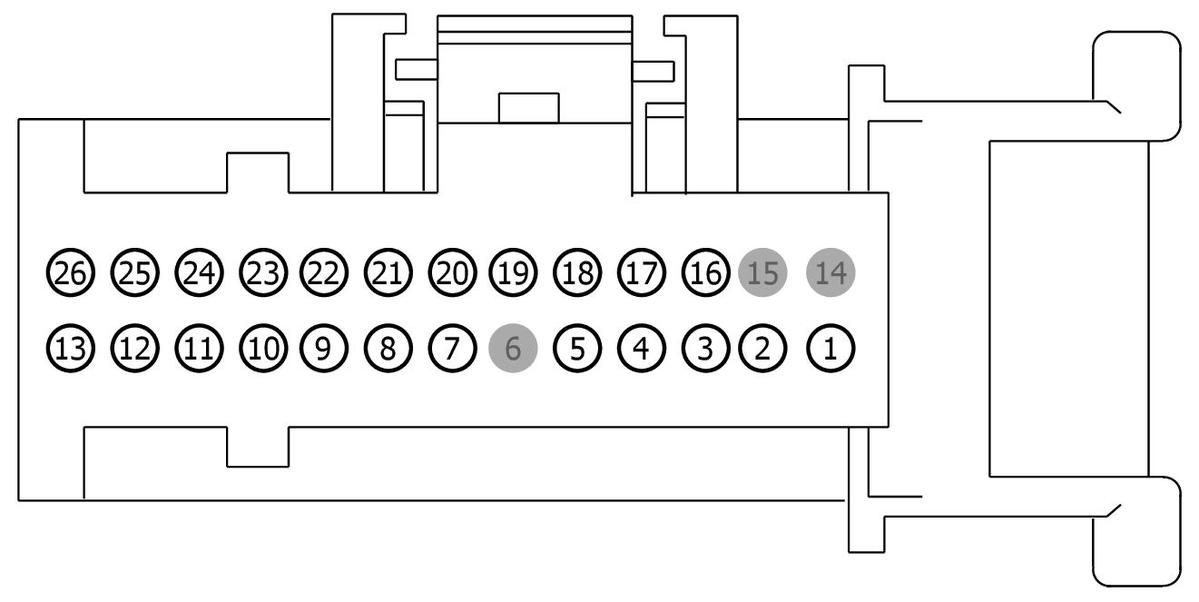

| 1 |
GD216 (BK-VT) |
18 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
9U5T-14474-EB |
| 2 |
RH111 (GY-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
9U5T-14474-DB |
| 3 |
LH111 (BN-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS |
9U5T-14474-DB |
| 4 |
VLN37 (BU-WH) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION #2 (WHITE) |
9U5T-14474-YB |
| 4 |
VLN04 (VT) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
9U5T-14474-YB |
| 5 |
CPK36 (VT) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
9U5T-14474-YB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CH122 (WH) |
26 |
CTRL MOD. - CLIMATE # HEATER REAR WINDOW REQUEST |
9U5T-14474-YB |
| 8 |
CH239 (BU) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) |
9U5T-14474-YB |
| 8 |
CH239 (GY) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) |
9U5T-14474-YB |
| 9 |
CH238 (OG) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) |
9U5T-14474-YB |
| 9 |
CH238 (YE) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) |
9U5T-14474-YB |
| 10 |
VH440 (BN) |
26 |
SENSOR - DOOR POSITION TEMP. LEFT |
9U5T-14474-YB |
| 11 |
CH123 (VT-WH) |
26 |
CTRL MOD. - BLOWER MOTOR RELAY |
9U5T-14474-YB |
| 12 |
CPK34 (GN-WH) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + |
9U5T-14474-YB|9U5T-14474-DB |
| 12 |
CPK34 (GN-WH) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + |
9U5T-14474-YB|9U5T-14474-DB |
| 13 |
CPK35 (YE) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
9U5T-14474-YB |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
VH438 (GN-WH) |
26 |
SENSOR - DOOR POSITION RECIRC. |
9U5T-14474-YB |
| 17 |
VDB06 (GY) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
9U5T-14474-YB |
| 18 |
VDB07 (VT) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
9U5T-14474-YB |
| 19 |
VH406 (VT) |
26 |
SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) |
9U5T-14474-YB |
| 20 |
CH229 (WH) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2 / OPEN (IF PLUS) |
9U5T-14474-YB |
| 21 |
CH228 (YE) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1 / CLOSE (IF PLUS) |
9U5T-14474-YB |
| 21 |
CH228 (YE-GN) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1 / CLOSE (IF PLUS) |
9U5T-14474-YB |
| 22 |
VH436 (YE-BU) |
26 |
SENSOR - DOOR POSITION DEFROST |
9U5T-14474-YB |
| 23 |
VH101 (WH-VT) |
20 |
CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL |
9U5T-14474-DB |
| 24 |
CH208 (GN) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) |
9U5T-14474-YB |
| 25 |
CH207 (BU) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) |
9U5T-14474-YB |
| 26 |
SBP12 (GN-RD) |
22 |
FUSE - 12 OR CIRCUIT BREAKER |
9U5T-14474-DB |
