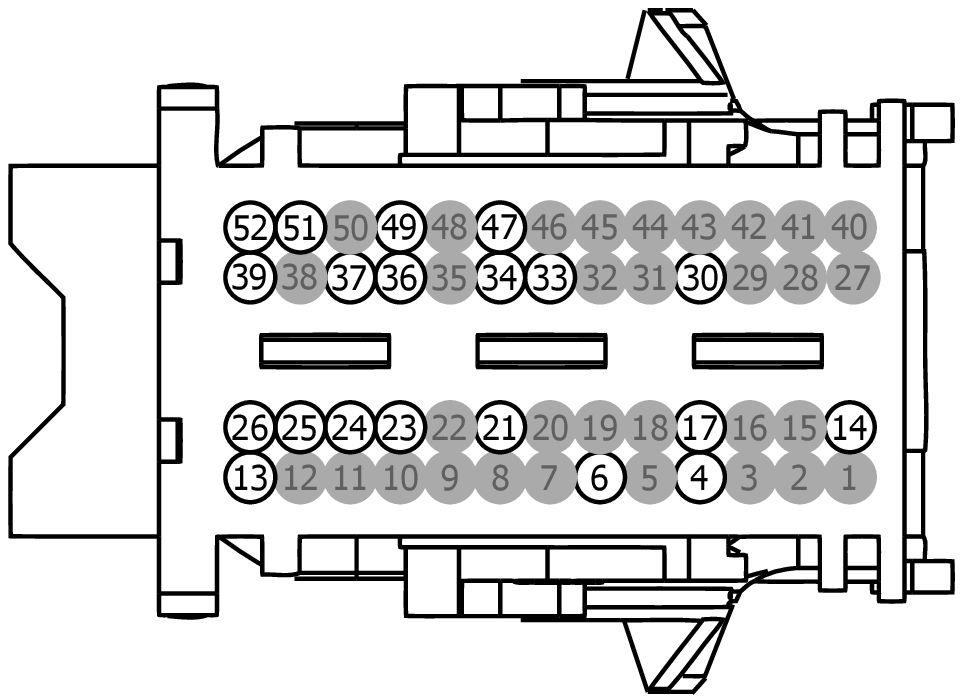

Connector End View C2280E - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280E	BODY CONTROL MODULE (BCM)	BU	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-YB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CPK23 (YE)	26	SWITCH - HANDLE UNLOCK DRIVER	9U5T-14474-YB
5	*	*	Not Used	N/A
6	CR195 (YE-BU)	18	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	9U5T-14474-EB
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT	9U5T-14474-DB
14	CPR63 (GY-YE)	22	SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE	9U5T-14474-DB
14	CPL60 (BN-YE)	22	SWITCH - LIFTGATE GLASS RELEASE	9U5T-14474-DB
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CPK19 (BU)	26	SWITCH - LOCK DRIVER	9U5T-14474-YB
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	CPL31 (WH)	26	SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR	9U5T-14474-YB
22	*	*	Not Used	N/A
23	CLS07 (BN-YE)	22	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	9U5T-14474-DB
24	CLS06 (GN-OG)	22	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	9U5T-14474-DB
25	CLS06 (GN-OG)	22	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	9U5T-14474-DB
26	CLS23 (GY-OG)	22	CTRL MOD. - TURN LAMP LEFT REAR	9U5T-14474-DB
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	CPL29 (YE)	26	SWITCH - LATCH DRIVER OR LEFT FRONT # SET	9U5T-14474-YB
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	CPL26 (GN)	26	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	9U5T-14474-YB
34	CPL58 (GY)	26	SWITCH - LIFTGATE/DECKLID # GLASS AJAR	9U5T-14474-YB|9U5T-14474-EB
34	CPL58 (BK)	18	SWITCH - LIFTGATE/DECKLID # GLASS AJAR	9U5T-14474-YB|9U5T-14474-EB
35	*	*	Not Used	N/A
36	VDN03 (GY-RD)	26	CTRL MOD. - LIN BUS # BCM 3	9U5T-14474-YB
37	VDN04 (VT-WH)	22	CTRL MOD. - LIN BUS # BCM 4	9U5T-14474-DB
38	*	*	Not Used	N/A
39	CPL87 (BN)	26	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	9U5T-14474-YB
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	*	*	Not Used	N/A
47	CMC25 (WH-VT)	22	SWITCH - PARKING BRAKE	9U5T-14474-DB
48	*	*	Not Used	N/A
49	VMT23 (WH-BN)	22	CTRL MOD. - TELEMATICS EMERGENCY NOTIFICATION SIGNAL (ENS)	9U5T-14474-DB
49	CR113 (BN-YE)	22	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	9U5T-14474-DB
50	*	*	Not Used	N/A
51	CLS07 (BN-YE)	22	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	9U5T-14474-DB
52	CLS27 (GN-OG)	22	CTRL MOD. - TURN LAMP RIGHT REAR	9U5T-14474-DB
