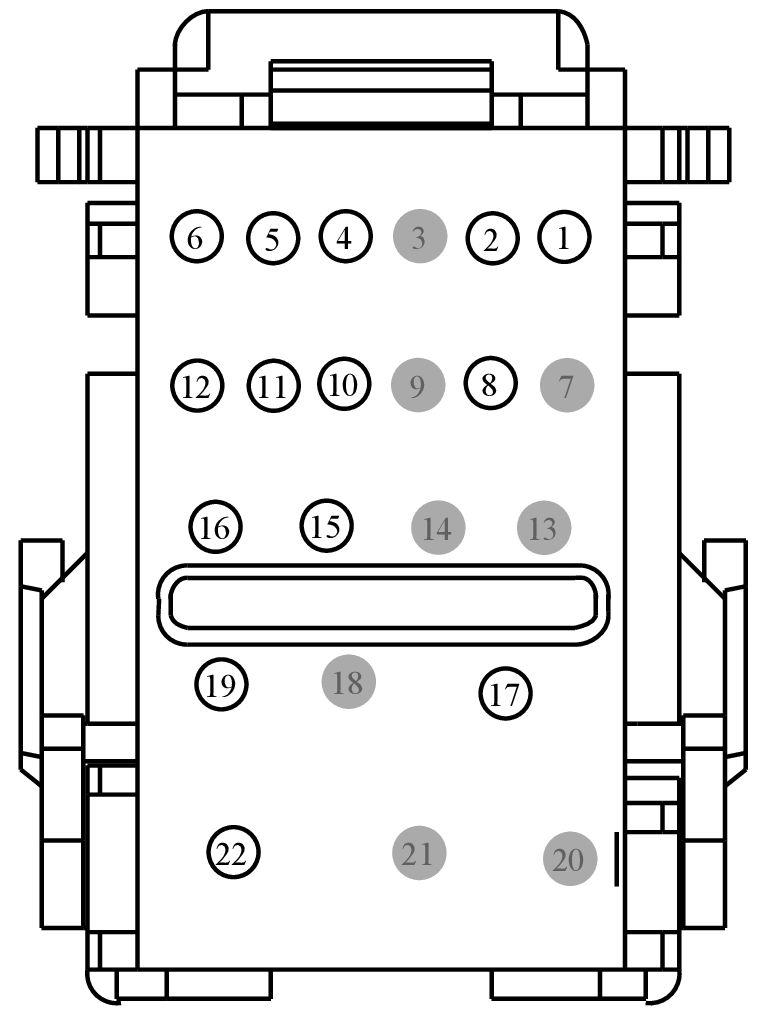

Connector End View C2280A - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280A	BODY CONTROL MODULE (BCM)	GY	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-BAA	Not Available
BU5T-14474-UA	DU2Z-14474-DA	1.50
DU5T-14474-HBB	EU2Z-14474-AB	2.80
DU5T-14474-LBB	EU2Z-14474-AB	2.80
DU5T-14474-TA	KU2Z-14474-DA	6.30

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	BU5T-14474-UA
2	CBP02 (GN)	22	FUSE - 2 OR CIRCUIT BREAKER	BU5T-14474-UA
3	*	*	Not Used	N/A
4	CBP35 (YE-GY)	20	FUSE - 35 OR CIRCUIT BREAKER	BU5T-14474-UA
5	CBP17 (BN-GN)	22	FUSE - 17 OR CIRCUIT BREAKER	BU5T-14474-UA
6	CBP21 (BU-GY)	22	FUSE - 21 OR CIRCUIT BREAKER	BU5T-14474-UA
7	*	*	Not Used	N/A
8	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER	7C3T-14474-DA
9	*	*	Not Used	N/A
10	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	7C3T-14474-DA|BU5T-14474-UA
10	SBP12 (GY-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	7C3T-14474-DA|BU5T-14474-UA
11	SBP19 (BU-RD)	22	FUSE - 19 OR CIRCUIT BREAKER	BU5T-14474-UA
12	SBP20 (GN-RD)	22	FUSE - 20 OR CIRCUIT BREAKER	BU5T-14474-UA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	CBP36 (BU-BN)	22	FUSE - 36 OR CIRCUIT BREAKER	DU5T-14474-HBB
16	CBP37 (WH)	18	FUSE - 37 OR CIRCUIT BREAKER	BU5T-14474-BAA|DU5T-14474-LBB
17	SBP29 (GY-RD)	18	FUSE - 29 OR CIRCUIT BREAKER	DU5T-14474-TA
18	*	*	Not Used	N/A
19	SBP15 (WH-RD)	20	FUSE - 15 OR CIRCUIT BREAKER	DU5T-14474-LBB|BU5T-14474-BAA
19	SBP15 (WH-RD)	18	FUSE - 15 OR CIRCUIT BREAKER	DU5T-14474-LBB|BU5T-14474-BAA
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	SBP32 (VT-RD)	16	FUSE - 32 OR CIRCUIT BREAKER	DU5T-14474-TA
