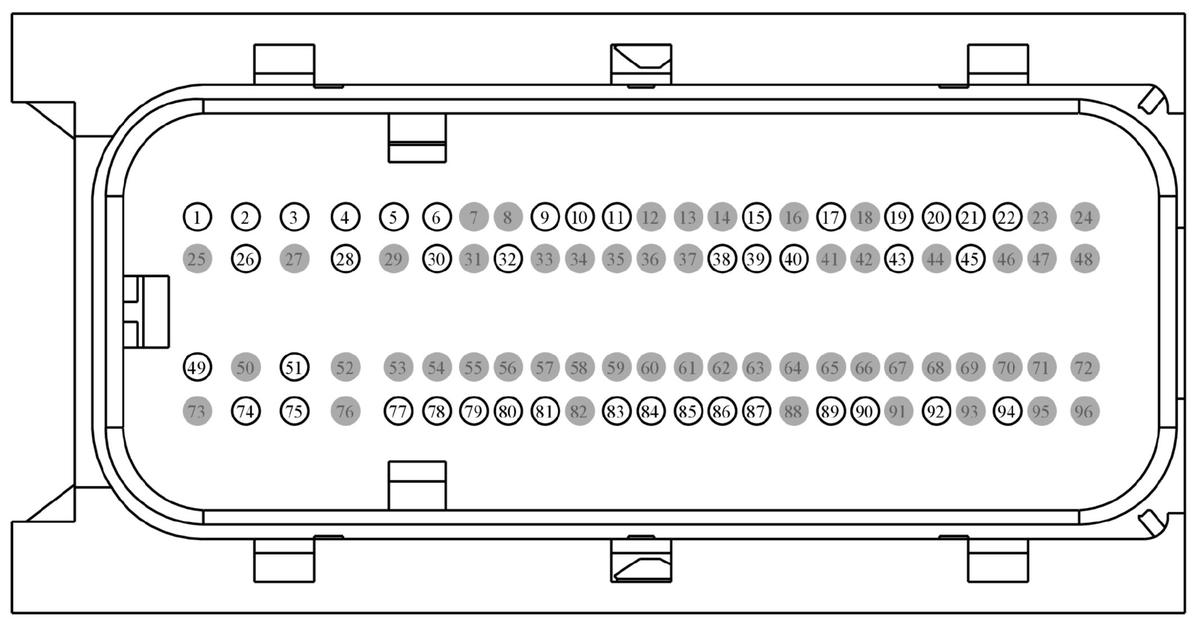

Connector End View C1750B - TRANSMISSION CONTROL MODULE (TCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1750B	TRANSMISSION CONTROL MODULE (TCM)	BK	14290	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6W8T-14474-JA	Not Available
6W8T-14474-BA	EU2Z-14474-BA	1.20
6W8T-14474-AA	EU2Z-14474-BA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VETA9 (BN-YE)	20	SENSOR - CLUTCH PRESSURE EVEN	6W8T-14474-BA
2	LET05 (WH-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION VOLTAGE REFERENCE (VREF)	6W8T-14474-BA
3	VETB6 (YE-BU)	20	SENSOR - SYSTEM PRESSURE	6W8T-14474-BA
4	RET06 (GY-BU)	16	CTRL MOD. - POWERTRAIN # TRANSMISSION SIGNAL RETURN 2 (SIGRTN2)	6W8T-14474-JA
5	VET99 (GY-BN)	20	SENSOR - CLUTCH PRESSURE ODD	6W8T-14474-BA
6	LET06 (BN-BU)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION VOLTAGE REFERENCE 2 (VREF2)	6W8T-14474-BA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VETB9 (GN-OG)	22	SENSOR - CLUTCH COOLING TEMPERATURE	6W8T-14474-AA
10	RET05 (VT-GY)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SIGNAL RETURN (SIGRTN)	6W8T-14474-BA
11	VETC2 (BN-WH)	22	TRANSMISSION CONTROL (STS)	6W8T-14474-AA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	VETE1 (WH-OG)	22	SENSOR - ODD CLUTCH SPEED -	6W8T-14474-AA
16	*	*	Not Used	N/A
17	VETD6 (WH-BU)	22	SENSOR - EVEN CLUTCH SPEED -	6W8T-14474-AA
18	*	*	Not Used	N/A
19	VETF0 (GN-VT)	22	SENSOR - INTERMEDIATE SHAFT SPEED A (HALL EFFECT) (ISSA)	6W8T-14474-AA
20	LETE1 (GY-VT)	22	SENSOR - ODD CLUTCH SPEED +	6W8T-14474-AA
21	VET26 (BN-GN)	22	SENSOR - OUTPUT SHAFT SPEED -	6W8T-14474-AA
22	LET04 (GY-OG)	22	SENSOR - OUTPUT SHAFT SPEED +	6W8T-14474-AA
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	VETB4 (GY-YE)	20	CTRL MOD. - POWERTRAIN # EVEN CLUTCH PRESSURE CONTROL VALVE	6W8T-14474-BA
27	*	*	Not Used	N/A
28	VETD4 (BU-WH)	20	SHIFT ACTUATOR POSITION 3	6W8T-14474-BA
29	*	*	Not Used	N/A
30	VETD2 (BU)	22	SHIFT ACTUATOR POSITION 1	6W8T-14474-AA
31	*	*	Not Used	N/A
32	VETD3 (YE-VT)	22	SHIFT ACTUATOR POSITION 2	6W8T-14474-AA
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	VETD5 (YE)	22	SHIFT ACTUATOR POSITION 4	6W8T-14474-AA
39	RETC2 (GN-OG)	22	SIGNAL GROUND	6W8T-14474-AA
40	VETD1 (WH-GN)	22	PARK LOCK POSITION SENSOR -	6W8T-14474-AA
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	LET73 (GN-BU)	22	SENSOR - INPUT SHAFT SPEED +	6W8T-14474-AA
44	*	*	Not Used	N/A
45	LETD6 (GN-BN)	22	SENSOR - EVEN CLUTCH SPEED +	6W8T-14474-AA
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	CET91 (YE-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE (TSPC2)	6W8T-14474-BA
50	*	*	Not Used	N/A
51	VETD0 (YE-OG)	20	PARK LOCK POSITION SENSOR -	6W8T-14474-BA
52	*	*	Not Used	N/A
53	*	*	Not Used	N/A
54	*	*	Not Used	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A
59	*	*	Not Used	N/A
60	*	*	Not Used	N/A
61	*	*	Not Used	N/A
62	*	*	Not Used	N/A
63	*	*	Not Used	N/A
64	*	*	Not Used	N/A
65	*	*	Not Used	N/A
66	*	*	Not Used	N/A
67	*	*	Not Used	N/A
68	*	*	Not Used	N/A
69	*	*	Not Used	N/A
70	*	*	Not Used	N/A
71	*	*	Not Used	N/A
72	*	*	Not Used	N/A
73	*	*	Not Used	N/A
74	VETC1 (BU)	20	TRANSMISSION CONTROL (SPV-)	6W8T-14474-BA
75	CET54 (BN-GN)	20	CTRL MOD. - POWERTRAIN # CLUTCH ACTUATOR VALVE POWER SV1 AND SV2 (TSPC1)	6W8T-14474-BA
76	*	*	Not Used	N/A
77	VETB2 (BN-BU)	20	CTRL MOD. - POWERTRAIN # EVEN REDUNDANT SHUT-OFF	6W8T-14474-BA
78	VETB8 (BU-GY)	20	TRANSMISSION CONTROL (ECFV-)	6W8T-14474-BA
79	VETC9 (GY-BU)	18	TRANSMISSION CONTROL (SELPV)	6W8T-14474-BA
80	VETC5 (WH-OG)	20	TRANSMISSION CONTROL (SPV3)	6W8T-14474-BA
81	VETC6 (YE-BU)	20	TRANSMISSION CONTROL (SPV4)	6W8T-14474-BA
82	*	*	Not Used	N/A
83	VETC8 (BN-GN)	20	TRANSMISSION CONTROL (PLHS)	6W8T-14474-BA
84	VETB3 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ODD REDUNDANT SHUT-OFF	6W8T-14474-BA
85	VETB7 (GY-BN)	20	TRANSMISSION CONTROL (OCFV-)	6W8T-14474-BA
86	VETB5 (BU-GN)	20	CTRL MOD. - POWERTRAIN # ODD CLUTCH PRESSURE CONTROL VALVE	6W8T-14474-BA
87	VETC4 (GN-BU)	20	TRANSMISSION CONTROL (SPV2)	6W8T-14474-BA
88	*	*	Not Used	N/A
89	VETC7 (GY-VT)	20	TRANSMISSION CONTROL (PLDV-)	6W8T-14474-BA
90	VETC3 (GY)	20	TRANSMISSION CONTROL (SPV1)	6W8T-14474-BA
91	*	*	Not Used	N/A
92	CET84 (WH-BN)	20	CTRL MOD. - POWERTRAIN # CLUTCH ACTUATOR VALVE POWER SV3 AND SV4 (TSPC8)	6W8T-14474-BA
93	*	*	Not Used	N/A
94	CETE1 (WH)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION PARK SOLENOID (TPSC)	6W8T-14474-BA
95	*	*	Not Used	N/A
96	*	*	Not Used	N/A
