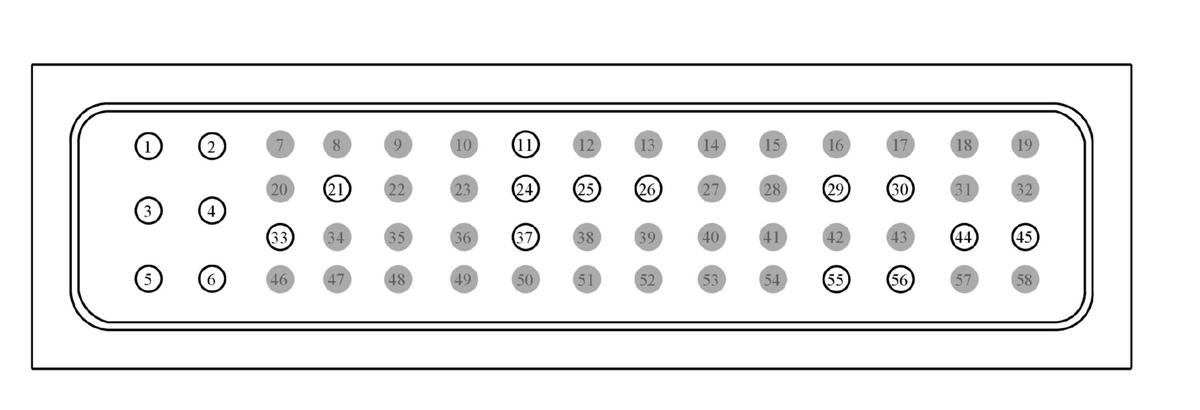

Connector End View C1750A - TRANSMISSION CONTROL MODULE (TCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1750A	TRANSMISSION CONTROL MODULE (TCM)	BK	14290	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2S6T-14474-PEA	Not Available
6W8T-14474-AA	EU2Z-14474-BA	1.20
6W8T-14474-BA	EU2Z-14474-BA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB19 (BU-RD)	14	FUSE - 19 OR CIRCUIT BREAKER	2S6T-14474-PEA
2	DUMMY (BK)	14	DUMMY WIRE	2S6T-14474-PEA
3	DUMMY (BK)	14	DUMMY WIRE	2S6T-14474-PEA
4	GD113 (BK-YE)	14	GROUND - COWL TOP RIGHT	2S6T-14474-PEA
5	DUMMY (BK)	14	DUMMY WIRE	2S6T-14474-PEA
6	DUMMY (BK)	14	DUMMY WIRE	2S6T-14474-PEA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	6W8T-14474-AA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	6W8T-14474-AA
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	RE472 (BU)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SST-SIGRTN)	6W8T-14474-AA
25	VETE0 (WH)	22	SWITCH - PULL FROM PARK	6W8T-14474-AA
26	RETE0 (VT)	22	SWITCH - PULL FROM PARK RETURN	6W8T-14474-AA
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	6W8T-14474-AA
30	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	6W8T-14474-AA
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	CET40 (GN-OG)	20	SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN)	6W8T-14474-BA
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	CBB66 (BU-WH)	20	FUSE - 66 OR CIRCUIT BREAKER	6W8T-14474-BA
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	VDB36 (BN-YE)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2	6W8T-14474-AA
45	VDB35 (BU-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 HIGH	6W8T-14474-AA
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	*	*	Not Used	N/A
54	*	*	Not Used	N/A
55	VDB34 (GY-YE)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 LOW	6W8T-14474-AA
56	VDB33 (WH-BN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 HIGH	6W8T-14474-AA
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A

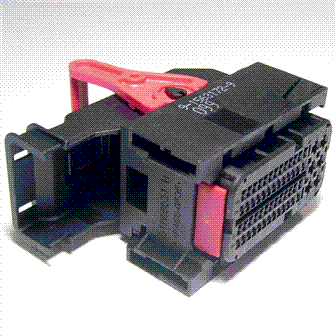

Available Pigtail Kits

Pigtail Kit Part Number WPT-1609

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-VB

Gauge:

14 18

Pin material:

Silver

Cavities:

58

Vehicle Uses:

• Transmission

Pigtail Kit Part Number WPT-1627

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-VC

Gauge:

14 18

Pin material:

Silver

Cavities:

58

Vehicle Uses:

• Transmission

Pigtail Kit Part Number WPT-1445

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-VA

Gauge:

14 18

Pin material:

Silver

Cavities:

58

Vehicle Uses:

• Transmission
