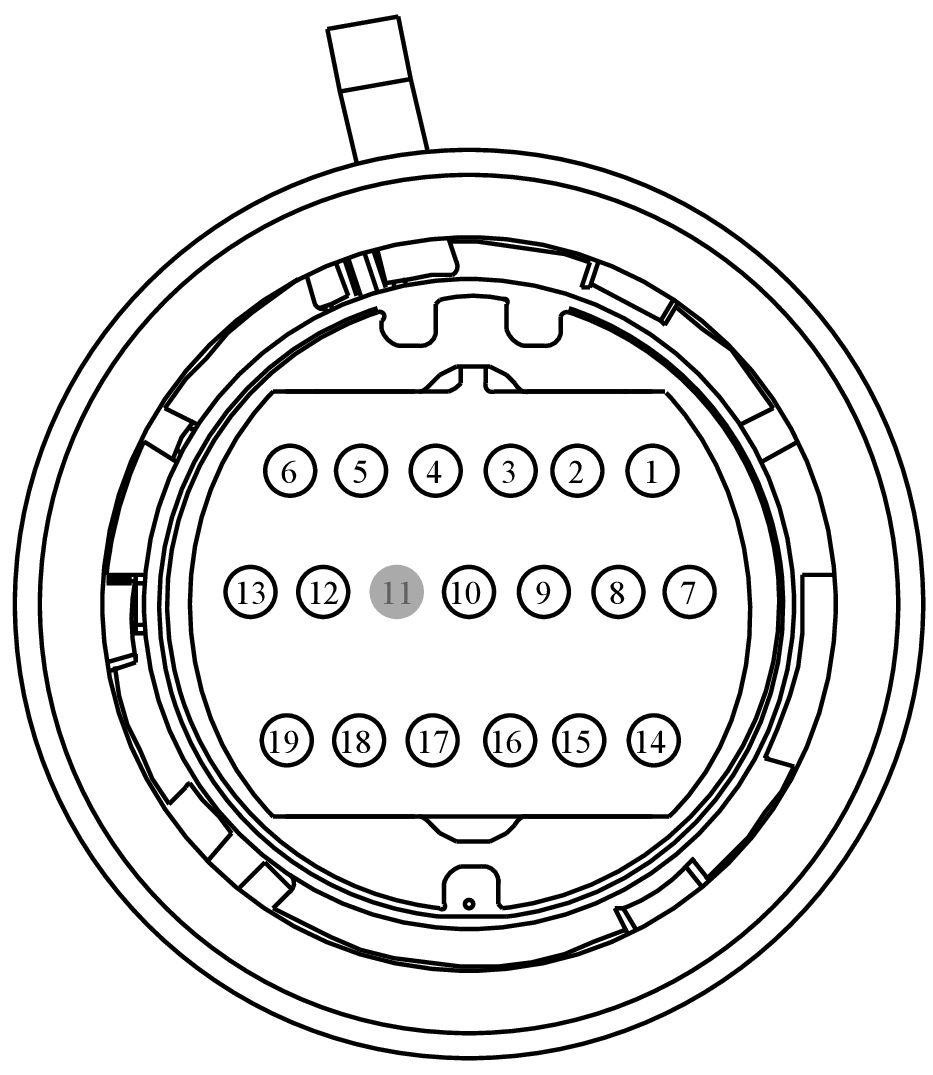

Connector End View C1575B - 7-SPEED DUAL CLUTCH TRANSMISSION

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1575B	7-SPEED DUAL CLUTCH TRANSMISSION	BK	7C078	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VETB9 (GN-RD)	18	SENSOR - CLUTCH COOLING TEMPERATURE	N/A
2	RET05 (VT-GY)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SIGNAL RETURN (SIGRTN)	N/A
3	VET99 (GY-BN)	18	SENSOR - CLUTCH PRESSURE ODD	N/A
4	LET05 (WH-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION VOLTAGE REFERENCE (VREF)	N/A
5	VETA9 (BN-YE)	18	SENSOR - CLUTCH PRESSURE EVEN	N/A
6	LET06 (BN-BU)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION VOLTAGE REFERENCE 2 (VREF2)	N/A
7	CET25 (BU-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC1)	N/A
8	VETB5 (BU-GN)	18	CTRL MOD. - POWERTRAIN # ODD CLUTCH PRESSURE CONTROL VALVE	N/A
9	VETB3 (VT-GN)	18	CTRL MOD. - POWERTRAIN # ODD REDUNDANT SHUT-OFF	N/A
10	VETB7 (GY-BN)	18	TRANSMISSION CONTROL (OCFV-)	N/A
11	- ()	*	Not Used	N/A
12	RET06 (GY-BU)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SIGNAL RETURN 2 (SIGRTN2)	N/A
13	VETB6 (YE-BU)	18	SENSOR - SYSTEM PRESSURE	N/A
14	LET08 (VT-GN)	18	CTRL MOD. - TRANSMISSION (SELPV)	N/A
15	VETC1 (BU)	18	TRANSMISSION CONTROL (SPV-)	N/A
16	VETB4 (GY-YE)	18	CTRL MOD. - POWERTRAIN # EVEN CLUTCH PRESSURE CONTROL VALVE	N/A
17	VETB2 (BN-BU)	18	CTRL MOD. - POWERTRAIN # ODD REDUNDANT SHUT-OFF	N/A
18	VETB8 (BU-GY)	18	TRANSMISSION CONTROL (ECFV-)	N/A
19	LET07 (VT-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE (TSPC2)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1398

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-CA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

19

Vehicle Uses:

• Transmission - Bulkhead
