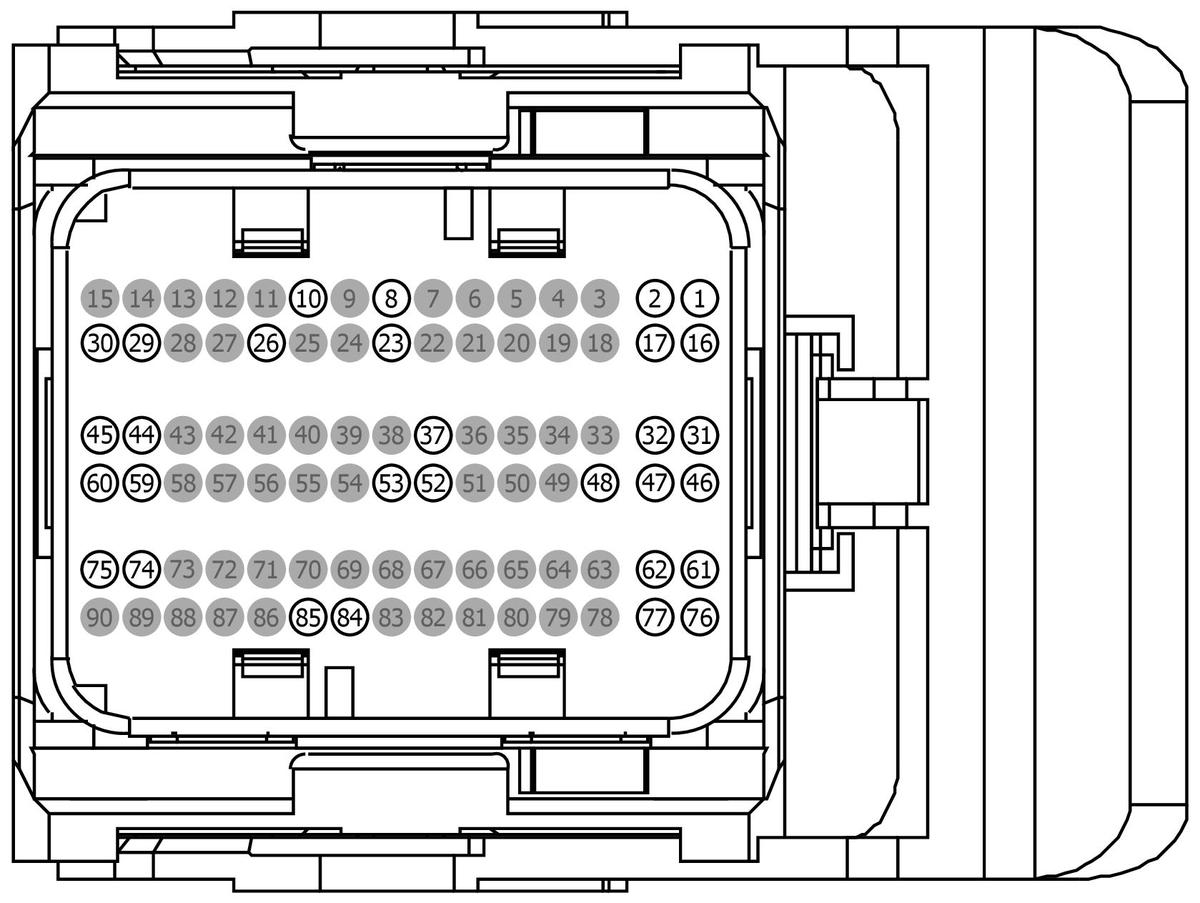

Connector End View C1232T - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1232T	POWERTRAIN CONTROL MODULE (PCM)	BK	14290	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-DA	Not Available
BU5T-14474-AB	DU2Z-14474-CA	0.64
BU5T-14474-BB	DU2Z-14474-CA	0.64
GU5T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
2	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VDB35 (BU-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 HIGH	BU5T-14474-AB
9	*	*	Not Used	N/A
10	VE731 (YE-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	BU5T-14474-BB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	CE234 (BU-WH)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22)	GU5T-14474-CA
17	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	VDB36 (BN-YE)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2	BU5T-14474-AB
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	VE733 (WH)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)	BU5T-14474-BB
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	LE450 (WH)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21)	BU5T-14474-BB
30	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11)	BU5T-14474-BB
31	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
32	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	VE521 (WH-GN)	22	MONITOR - FUEL PUMP # 2 (FPM2)	BU5T-14474-AB
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11)	BU5T-14474-BB
45	LE449 (VT-GN)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21)	BU5T-14474-BB
46	CE236 (GY-VT)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21)	GU5T-14474-CA
47	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
48	CE196 (WH)	22	CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE RIGHT	BU5T-14474-AB
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	VE915 (BN-GN)	22	VALVE - ACTIVE EXHAUST SOLENOID SINGLE OR LEFT	BU5T-14474-AB
53	VE939 (WH-BU)	22	VALVE - ACTIVE EXHAUST SOLENOID RIGHT	BU5T-14474-AB
54	*	*	Not Used	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A
59	VE826 (YE-GN)	18	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11)	BU5T-14474-BB
60	VE827 (WH-GN)	18	SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21)	BU5T-14474-BB
61	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
62	DUMMY (BK)	16	DUMMY WIRE	GU5T-14474-DA
63	*	*	Not Used	N/A
64	*	*	Not Used	N/A
65	*	*	Not Used	N/A
66	*	*	Not Used	N/A
67	*	*	Not Used	N/A
68	*	*	Not Used	N/A
69	*	*	Not Used	N/A
70	*	*	Not Used	N/A
71	*	*	Not Used	N/A
72	*	*	Not Used	N/A
73	*	*	Not Used	N/A
74	CE162 (BU-GN)	22	CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE SINGLE OR LEFT	BU5T-14474-AB
75	DUMMY (BK)	20	DUMMY WIRE	BU5T-14474-AB
76	CE235 (GN-BN)	16	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11)	GU5T-14474-DA
77	CE233 (WH-OG)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	GU5T-14474-CA
78	*	*	Not Used	N/A
79	*	*	Not Used	N/A
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	RE731 (WH-OG)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND)	BU5T-14474-BB
85	RE733 (GN)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)	BU5T-14474-BB
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	*	*	Not Used	N/A
89	*	*	Not Used	N/A
90	*	*	Not Used	N/A
