Connector End View C175T - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175T POWERTRAIN CONTROL MODULE (PCM) BK 14B060/7C078 part# N/A Not Available

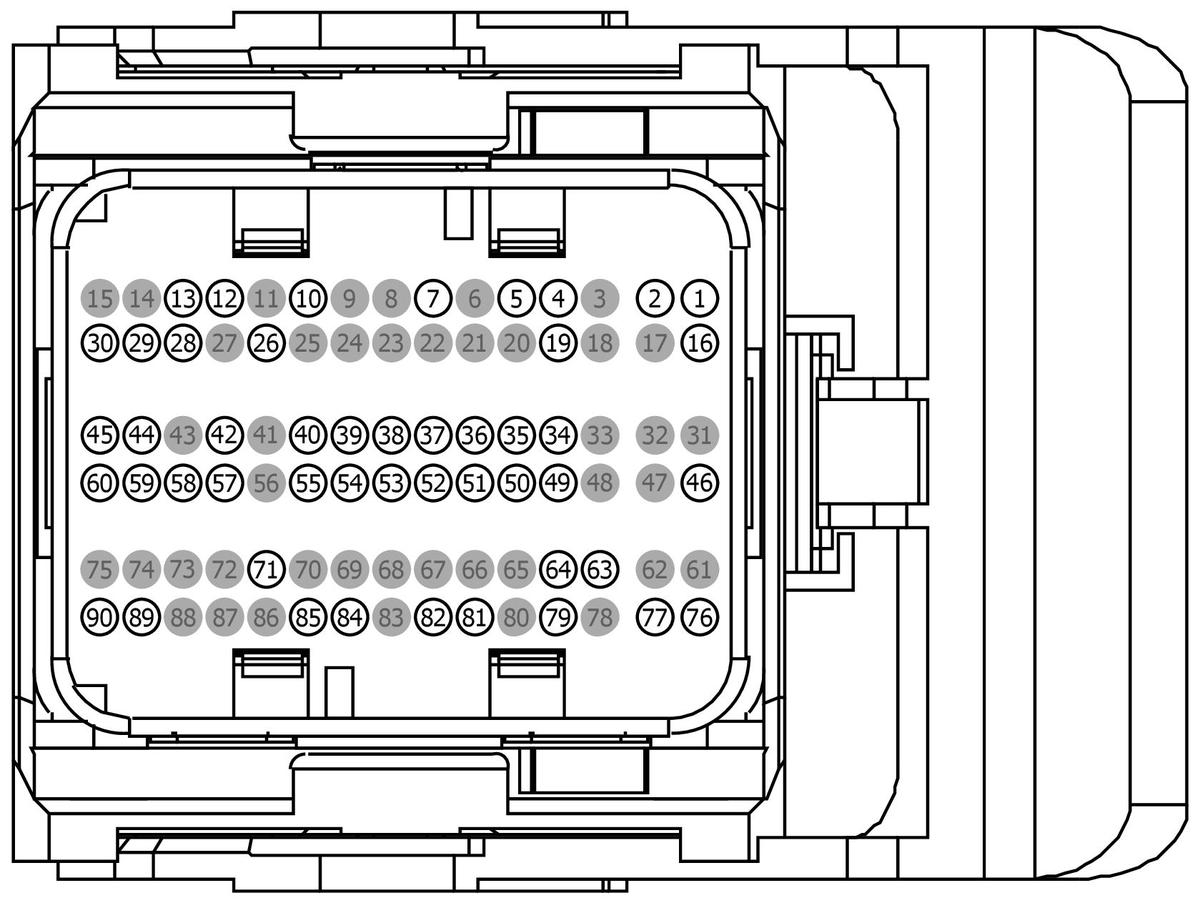

GFDWR186868Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
GU5T-14474-CA DU2Z-14474-BA 0.64
BU5T-14474-AC DU2Z-14474-CA 0.64
BU5T-14474-AB DU2Z-14474-CA 0.64
BU5T-14474-BB DU2Z-14474-CA 0.64
BU5T-14474-BC DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CET49 (BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) GU5T-14474-CA
2 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) GU5T-14474-CA
3 * * Not Used N/A
4 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] BU5T-14474-AC
5 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] BU5T-14474-AC
6 * * Not Used N/A
7 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AC
7 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AB
8 * * Not Used N/A
9 * * Not Used N/A
10 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BB
10 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BC
11 * * Not Used N/A
12 VE722 (BN) 22 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) BU5T-14474-AC
12 VE722 (BN) 22 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) BU5T-14474-AB
13 VE788 (BU-WH) 18 SENSOR - PARTICULATE FILTER PRESSURE OUTLET LEFT OR SINGLE (PFP_O) BU5T-14474-BB
13 VE788 (BU-WH) 22 SENSOR - PARTICULATE FILTER PRESSURE OUTLET LEFT OR SINGLE (PFP_O) BU5T-14474-AC
14 * * Not Used N/A
15 * * Not Used N/A
16 CE234 (BU-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) GU5T-14474-CA
17 * * Not Used N/A
18 * * Not Used N/A
19 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] BU5T-14474-AC
20 * * Not Used N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 VE733 (WH) 20 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BC
26 VE733 (WH) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
27 * * Not Used N/A
28 VE723 (GN-VT) 22 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + BU5T-14474-AB
28 VE723 (GN) 22 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + BU5T-14474-AC
29 LE450 (WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) BU5T-14474-BC
29 LE450 (WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) BU5T-14474-BB
30 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-BB
30 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-BC
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] BU5T-14474-AC
35 LE461 (GY-YE) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2) BU5T-14474-AC
36 VET84 (BN-GN) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1) BU5T-14474-AC
36 LETB2 (BN-GN) 20 SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 1 BU5T-14474-AB
37 VETB0 (YE-VT) 20 SENSOR - INTERMEDIATE SHAFT SPEED A + BU5T-14474-AC
38 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + BU5T-14474-AC
38 LETB3 (GY-BN) 20 SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 2 BU5T-14474-AB
39 LETB4 (GN-WH) 20 SENSOR - SELECTED GEAR (SGS) SELECT POSITION 3 BU5T-14474-AB
39 VYT12 (YE-GN) 22 PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) BU5T-14474-AB
40 VE772 (YE-BU) 22 SENSOR - CLUTCH MASTER CYLINDER 1 (CPP1) BU5T-14474-AB
41 * * Not Used N/A
42 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AC
43 * * Not Used N/A
44 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-BC
44 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-BB
45 LE449 (VT-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) BU5T-14474-BB
45 LE449 (VT-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) BU5T-14474-BC
46 CE236 (GY-VT) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) GU5T-14474-CA
47 * * Not Used N/A
48 * * Not Used N/A
49 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] BU5T-14474-AC
50 LE425 (BU-BN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF) BU5T-14474-AC
51 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED - BU5T-14474-AC
52 VE915 (BN-GN) 22 VALVE - ACTIVE EXHAUST SOLENOID SINGLE OR LEFT BU5T-14474-AC
52 VE915 (BN-GN) 22 VALVE - ACTIVE EXHAUST SOLENOID SINGLE OR LEFT BU5T-14474-AB
53 VE939 (WH-BU) 22 VALVE - ACTIVE EXHAUST SOLENOID RIGHT BU5T-14474-AB
53 VE939 (WH-BU) 22 VALVE - ACTIVE EXHAUST SOLENOID RIGHT BU5T-14474-AC
54 VETB1 (BN-WH) 20 SENSOR - INTERMEDIATE SHAFT SPEED B + BU5T-14474-AC
55 VET81 (YE-GY) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2) BU5T-14474-AC
55 VE757 (WH) 22 SENSOR - CLUTCH MASTER CYLINDER 2 (CPP2) BU5T-14474-AB
56 * * Not Used N/A
57 RE722 (BU-OG) 18 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)- BU5T-14474-BB
57 RE722 (BU-OG) 18 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)- BU5T-14474-BC
58 VE787 (WH-OG) 22 SENSOR - PARTICULATE FILTER PRESSURE OUTLET RIGHT (PFP_O) BU5T-14474-AC
58 VE787 (WH-OG) 18 SENSOR - PARTICULATE FILTER PRESSURE OUTLET RIGHT (PFP_O) BU5T-14474-BB
59 VE826 (YE-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) BU5T-14474-BB
59 VE826 (YE-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) BU5T-14474-BC
60 VE827 (WH-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) BU5T-14474-BC
60 VE827 (WH-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) BU5T-14474-BB
61 * * Not Used N/A
62 * * Not Used N/A
63 CET50 (WH-OG) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC) BU5T-14474-AC
64 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] BU5T-14474-AC
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 RE723 (WH-BU) 18 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) - BU5T-14474-BC
71 RE723 (WH-BU) 18 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) - BU5T-14474-BB
72 * * Not Used N/A
73 * * Not Used N/A
74 * * Not Used N/A
75 * * Not Used N/A
76 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) GU5T-14474-CA
77 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) GU5T-14474-CA
78 * * Not Used N/A
79 CET51 (WH) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC) BU5T-14474-AC
80 * * Not Used N/A
81 LE424 (YE-GN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) BU5T-14474-AC
81 LE424 (YE-GN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) BU5T-14474-AB
81 LE424 (YE-GN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) BU5T-14474-AB
82 LE456 (VT-WH) 22 CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER + BU5T-14474-AB
83 * * Not Used N/A
84 RE731 (WH-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) BU5T-14474-BC
84 RE731 (BK) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) BU5T-14474-BB
85 RE733 (GN) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
85 RE733 (GN) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BC
86 * * Not Used N/A
87 * * Not Used N/A
88 * * Not Used N/A
89 CE162 (BU-GN) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE SINGLE OR LEFT BU5T-14474-AC
89 CE162 (BU-GN) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE SINGLE OR LEFT BU5T-14474-AB
90 CE196 (WH-BU) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE RIGHT BU5T-14474-AB
90 CE196 (GY) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE RIGHT BU5T-14474-AB
90 CE196 (WH-BU) 22 CTRL MOD. - POWERTRAIN # ACTIVE EXHAUST SOLENOID VALVE RIGHT BU5T-14474-AC
