Instrument Cluster

Fig 1: Instrument Cluster Wiring Diagram (1 Of 11)
GFDWR161647Courtesy of FORD MOTOR COMPANY

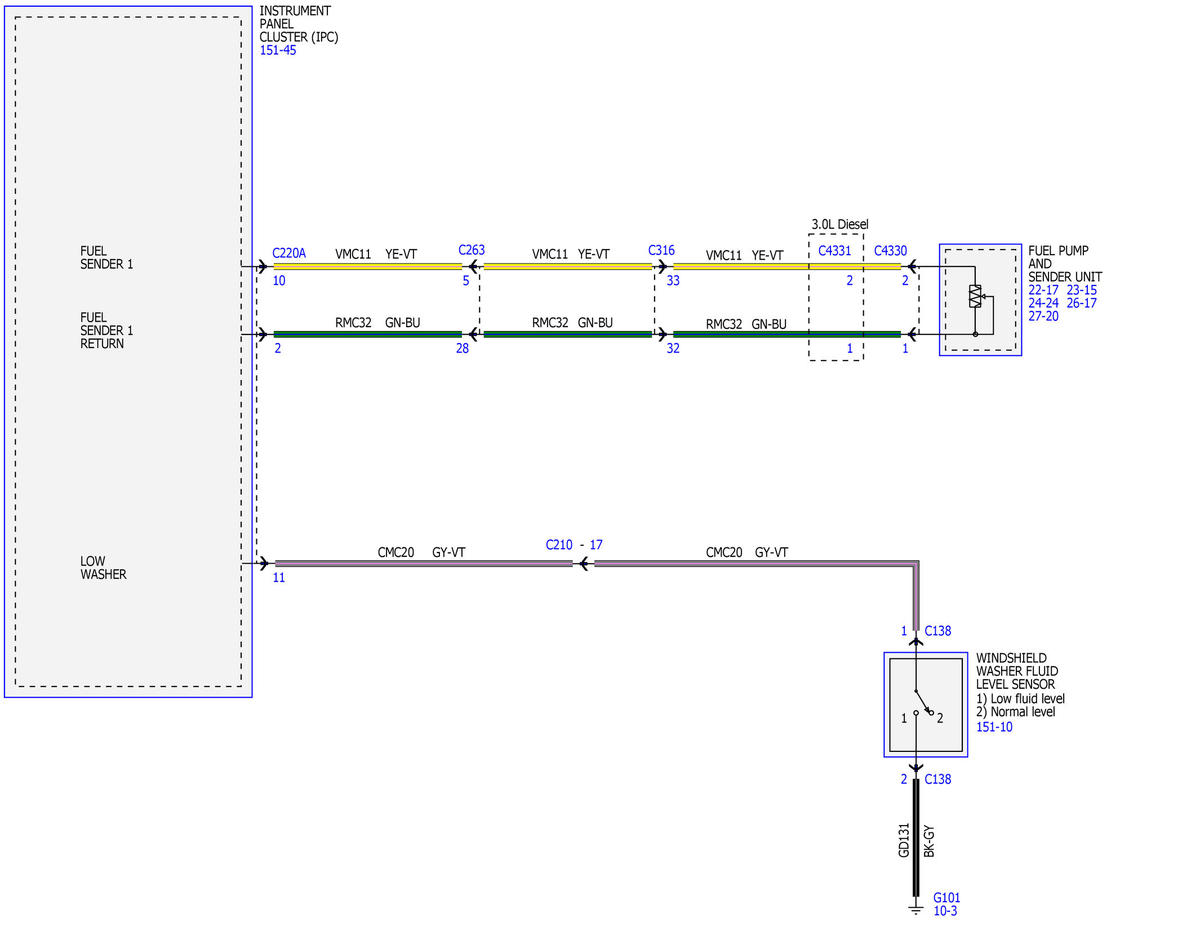

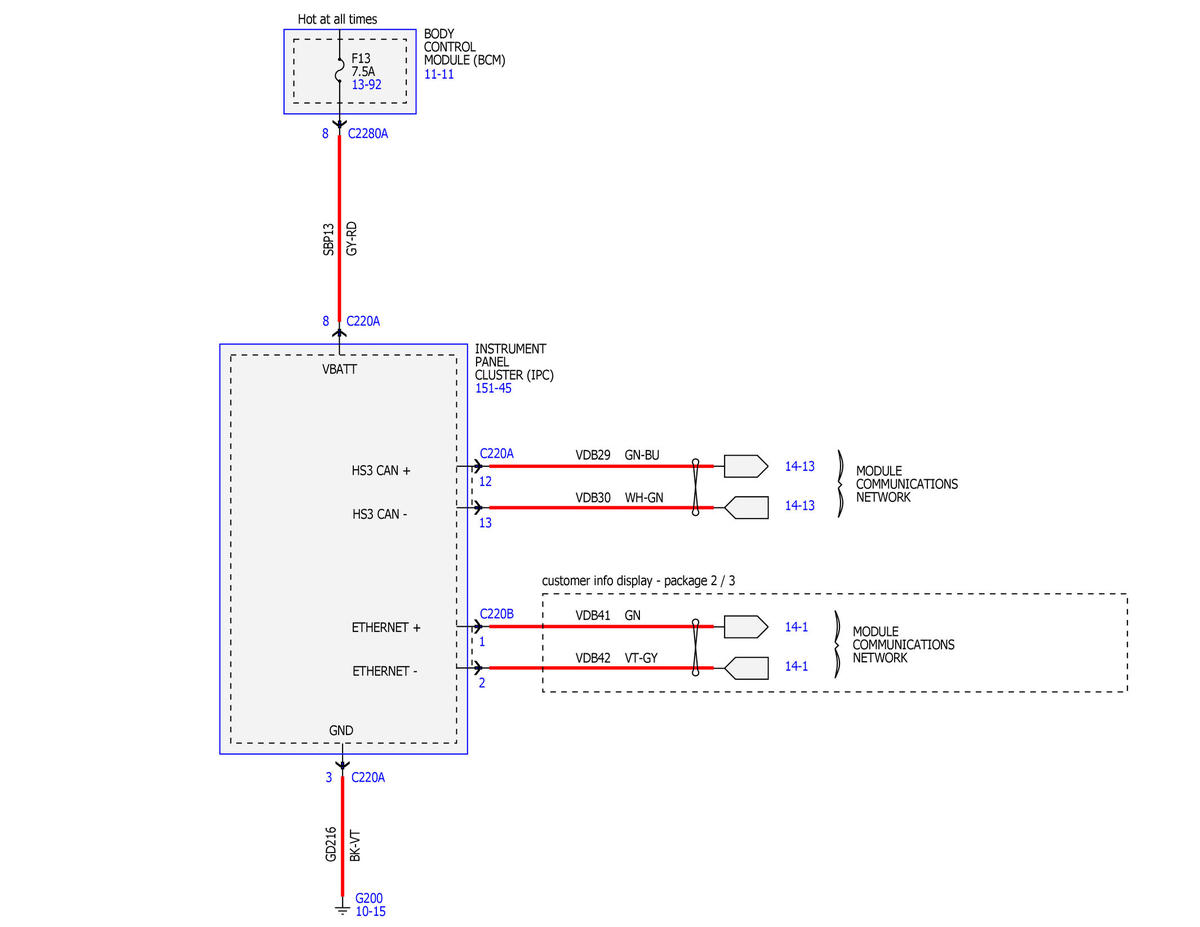

Fig 2: Instrument Cluster Wiring Diagram (2 Of 11)
GFDWR161650Courtesy of FORD MOTOR COMPANY

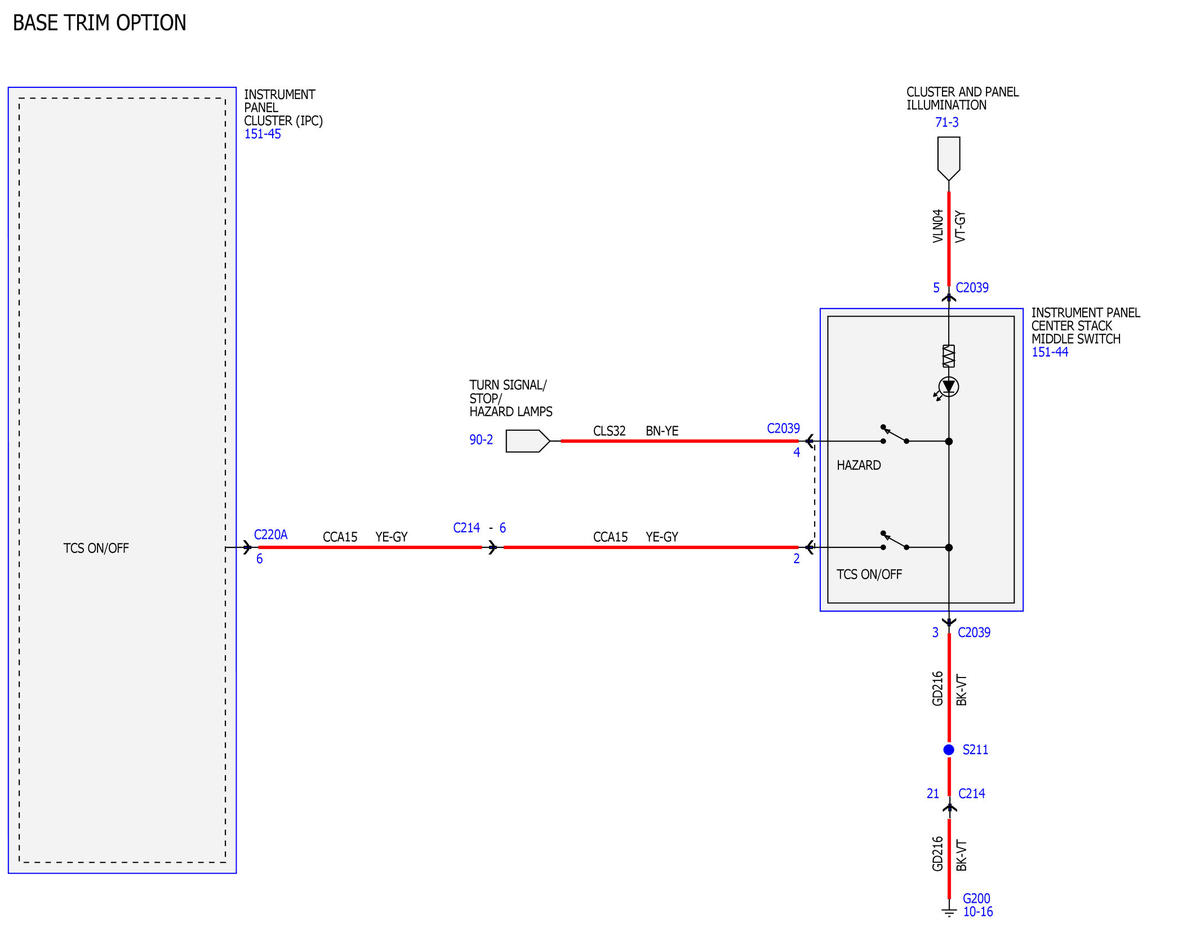

Fig 3: Instrument Cluster Wiring Diagram (3 Of 11)
GFDWR161651Courtesy of FORD MOTOR COMPANY

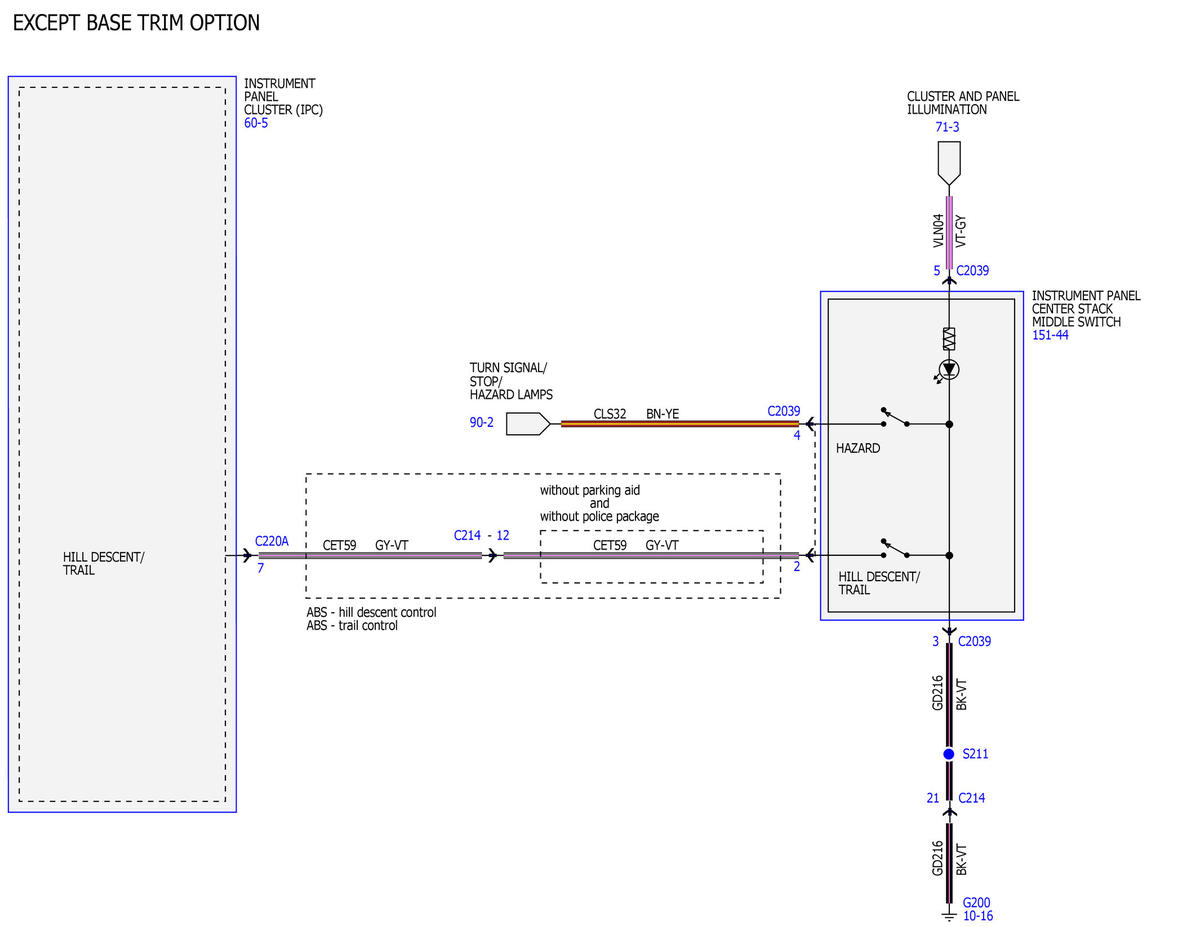

Fig 4: Instrument Cluster Wiring Diagram (4 Of 11)
GFDWR161652Courtesy of FORD MOTOR COMPANY

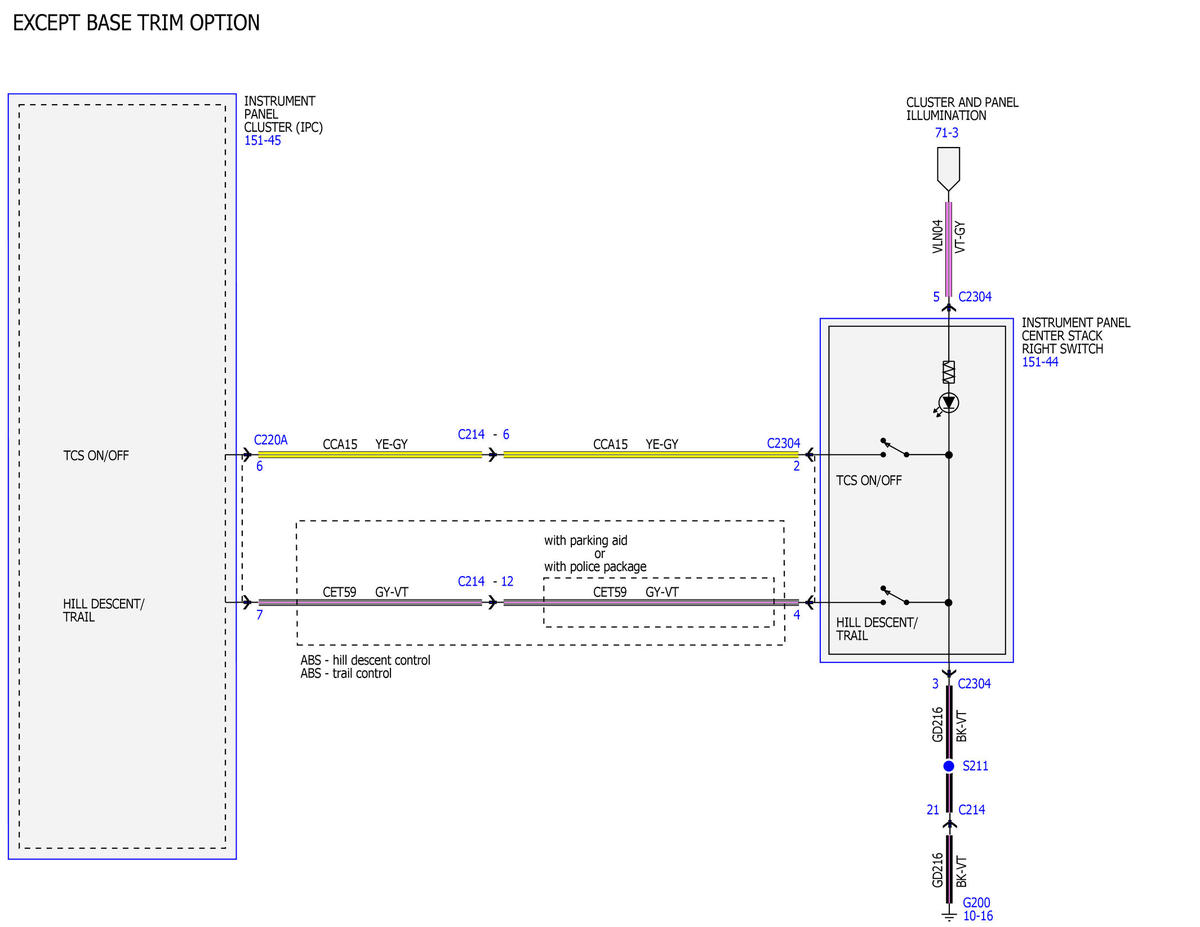

Fig 5: Instrument Cluster Wiring Diagram (5 Of 11)
GFDWR161653Courtesy of FORD MOTOR COMPANY
Fig 6: Instrument Cluster Wiring Diagram (6 Of 11)
GFDWR161654Courtesy of FORD MOTOR COMPANY

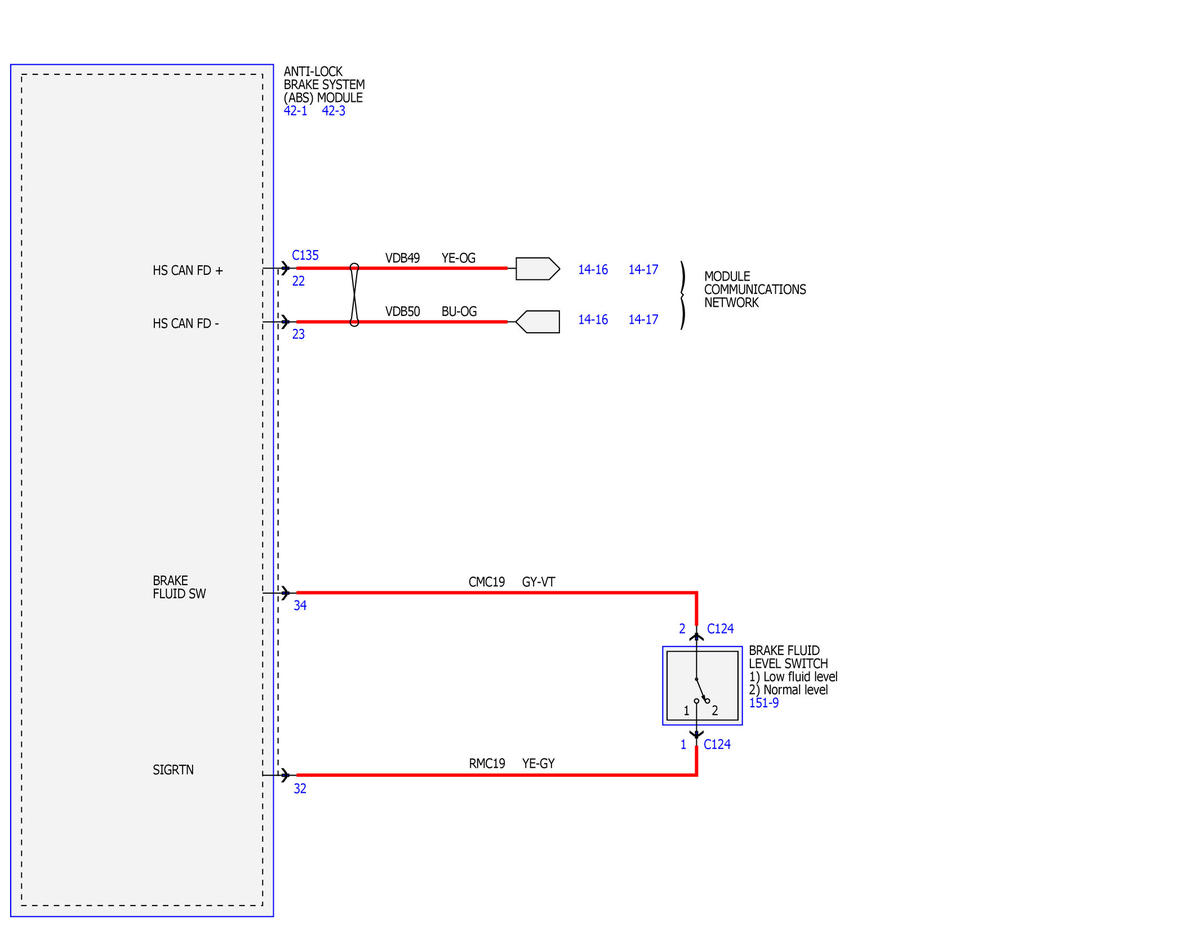

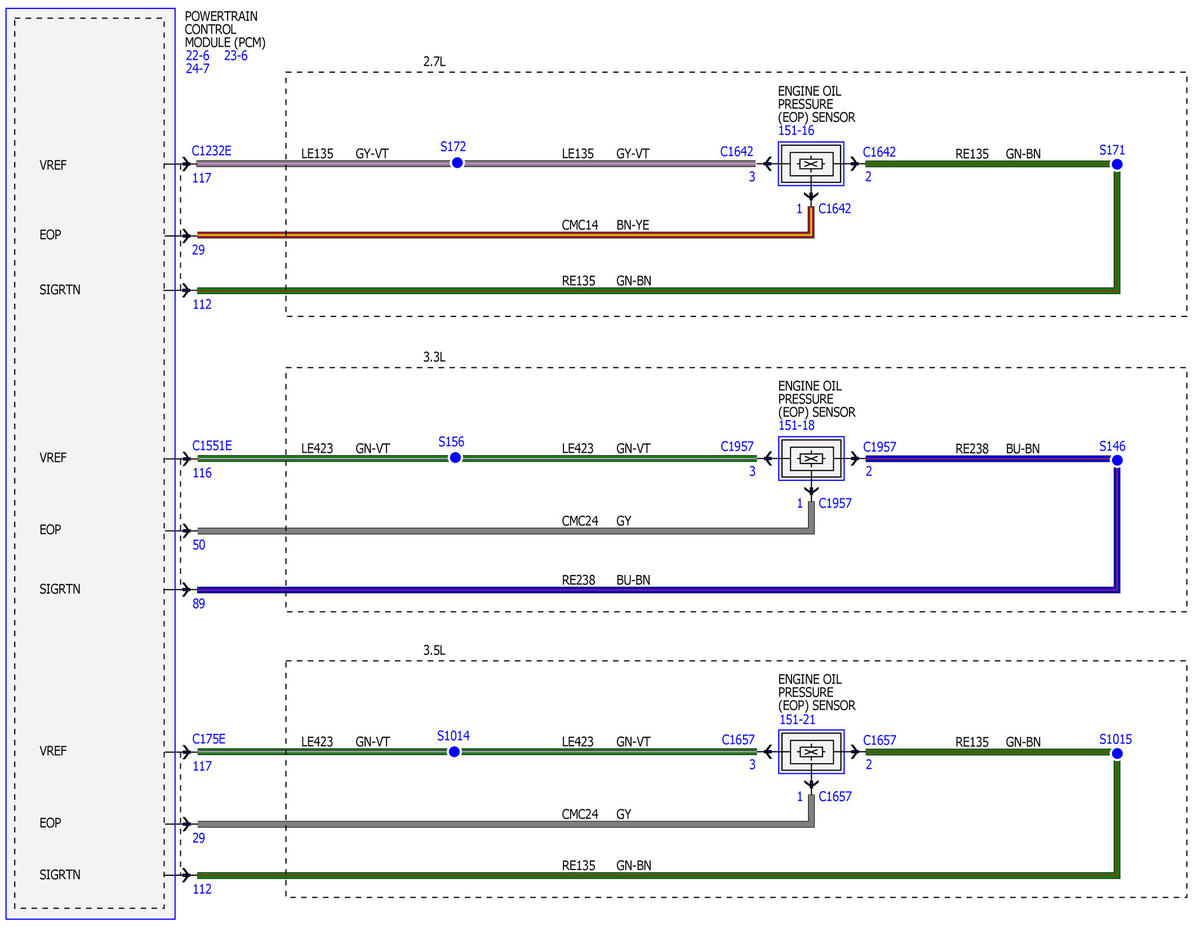

Fig 7: Instrument Cluster Wiring Diagram (7 Of 11)
GFDWR161655Courtesy of FORD MOTOR COMPANY

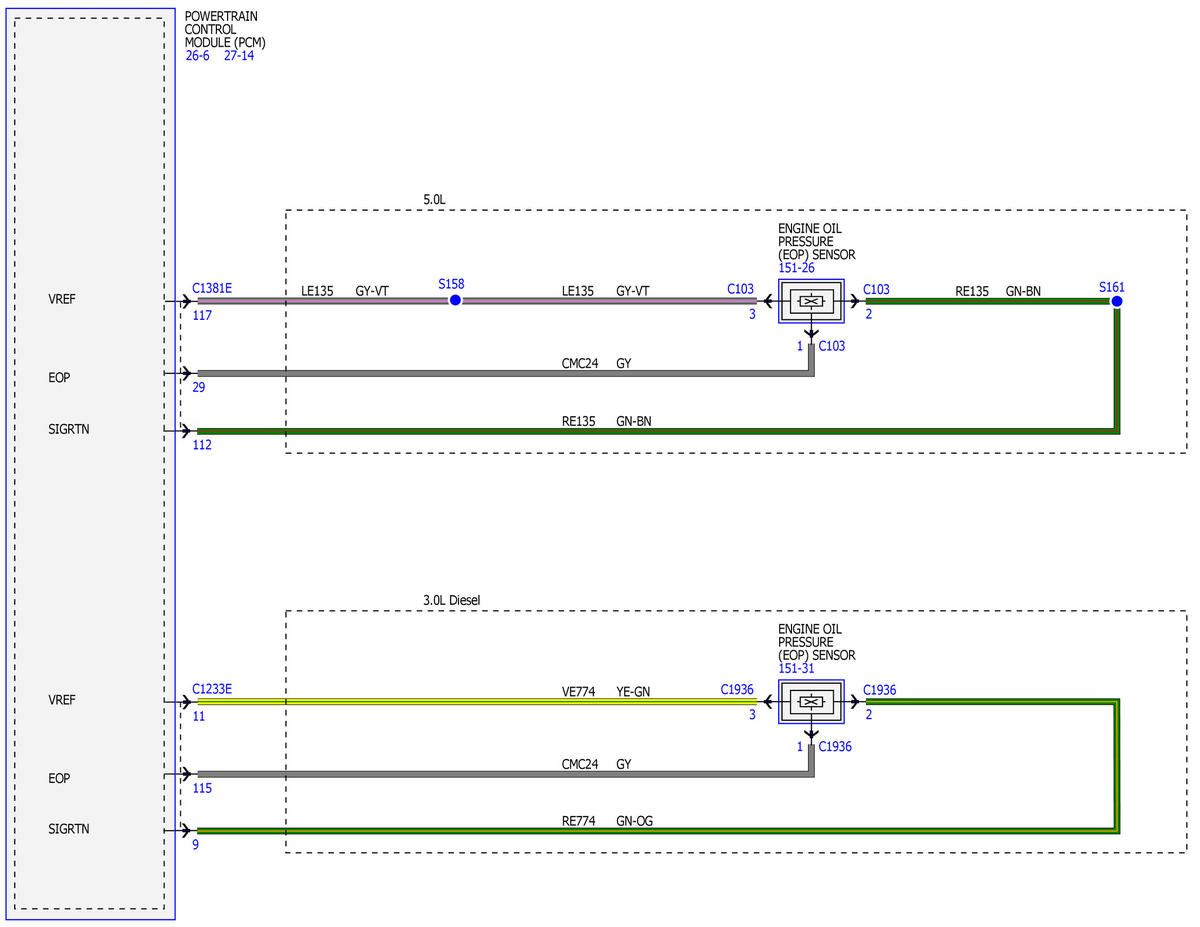

Fig 8: Instrument Cluster Wiring Diagram (8 Of 11)
GFDWR161656Courtesy of FORD MOTOR COMPANY

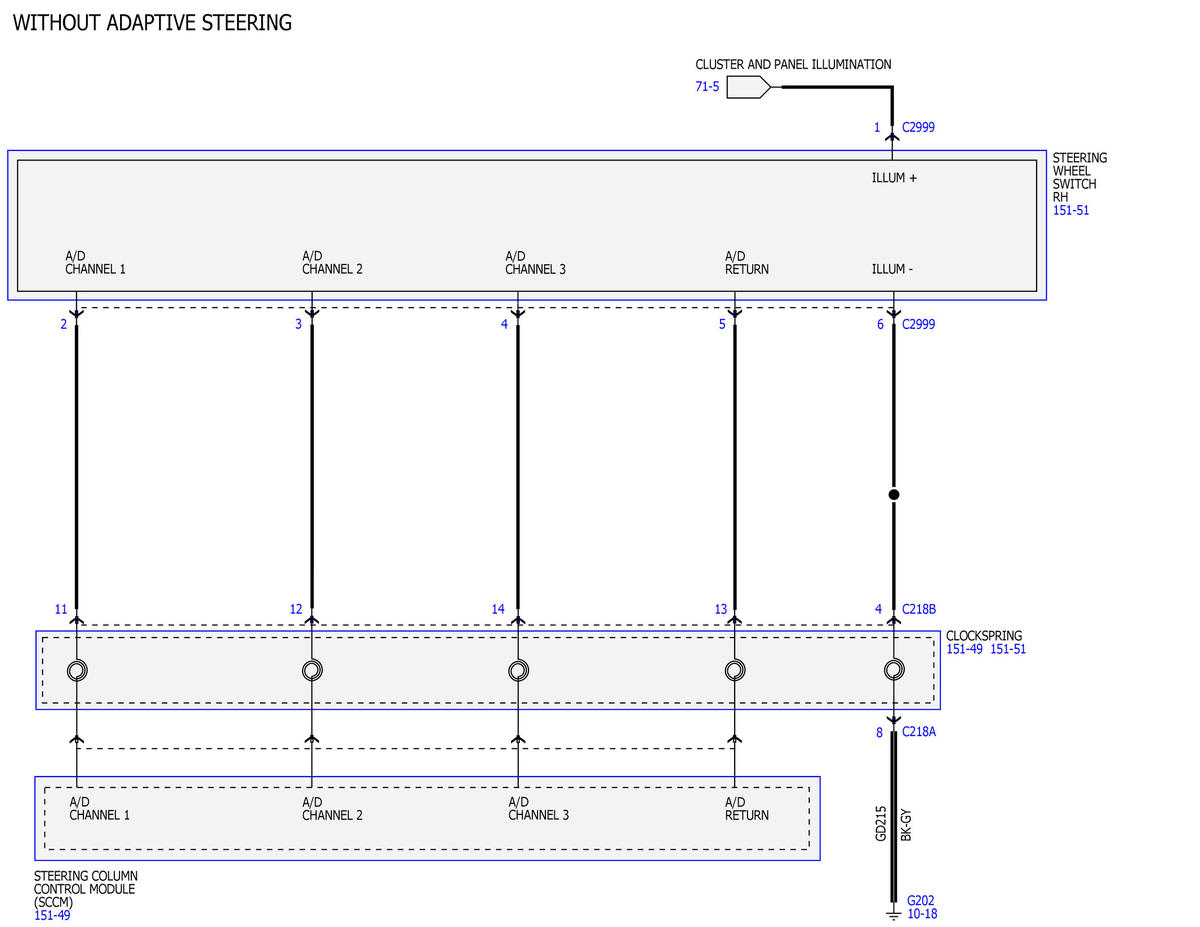

Fig 9: Instrument Cluster Wiring Diagram (9 Of 11)
GFDWR161657Courtesy of FORD MOTOR COMPANY

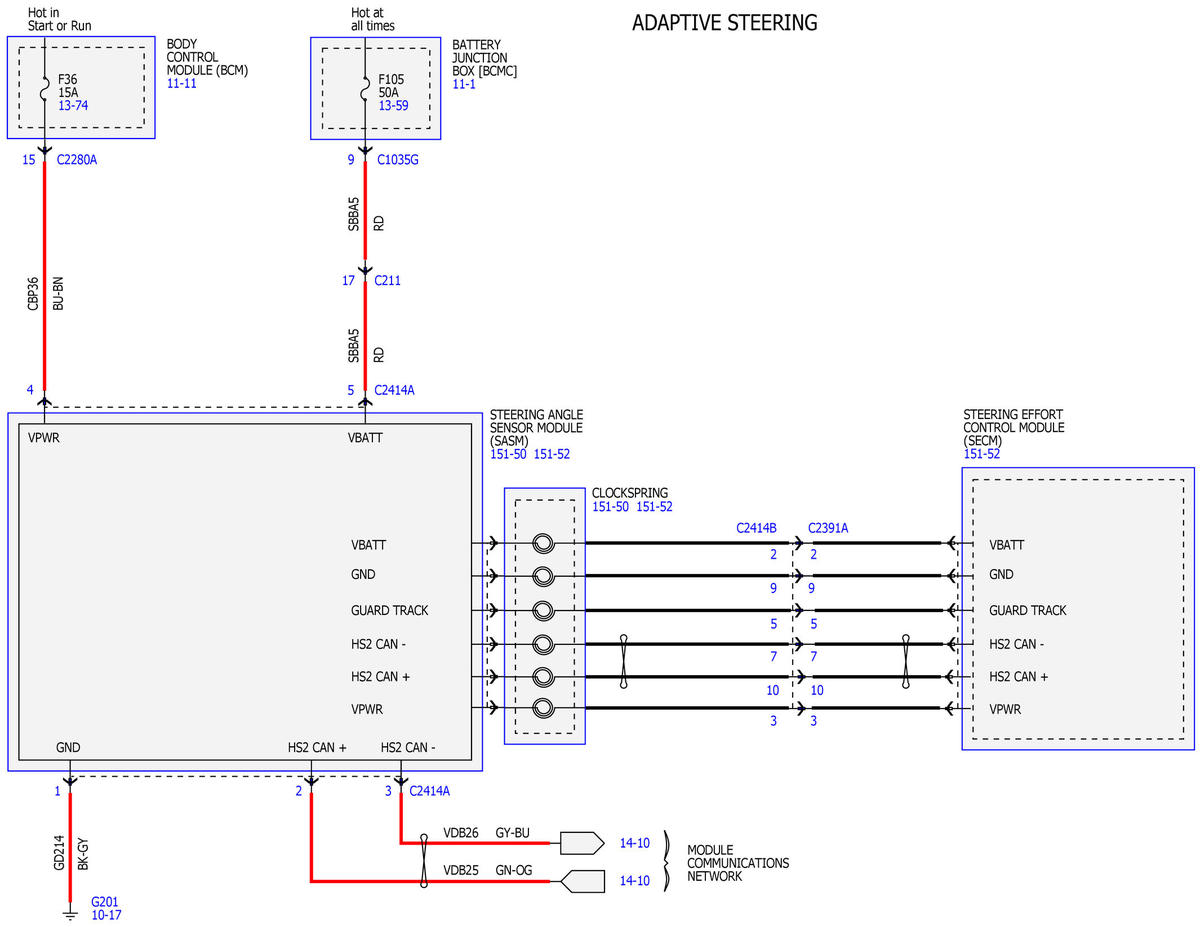

Fig 10: Instrument Cluster Wiring Diagram (10 Of 11)
GFDWR161648Courtesy of FORD MOTOR COMPANY

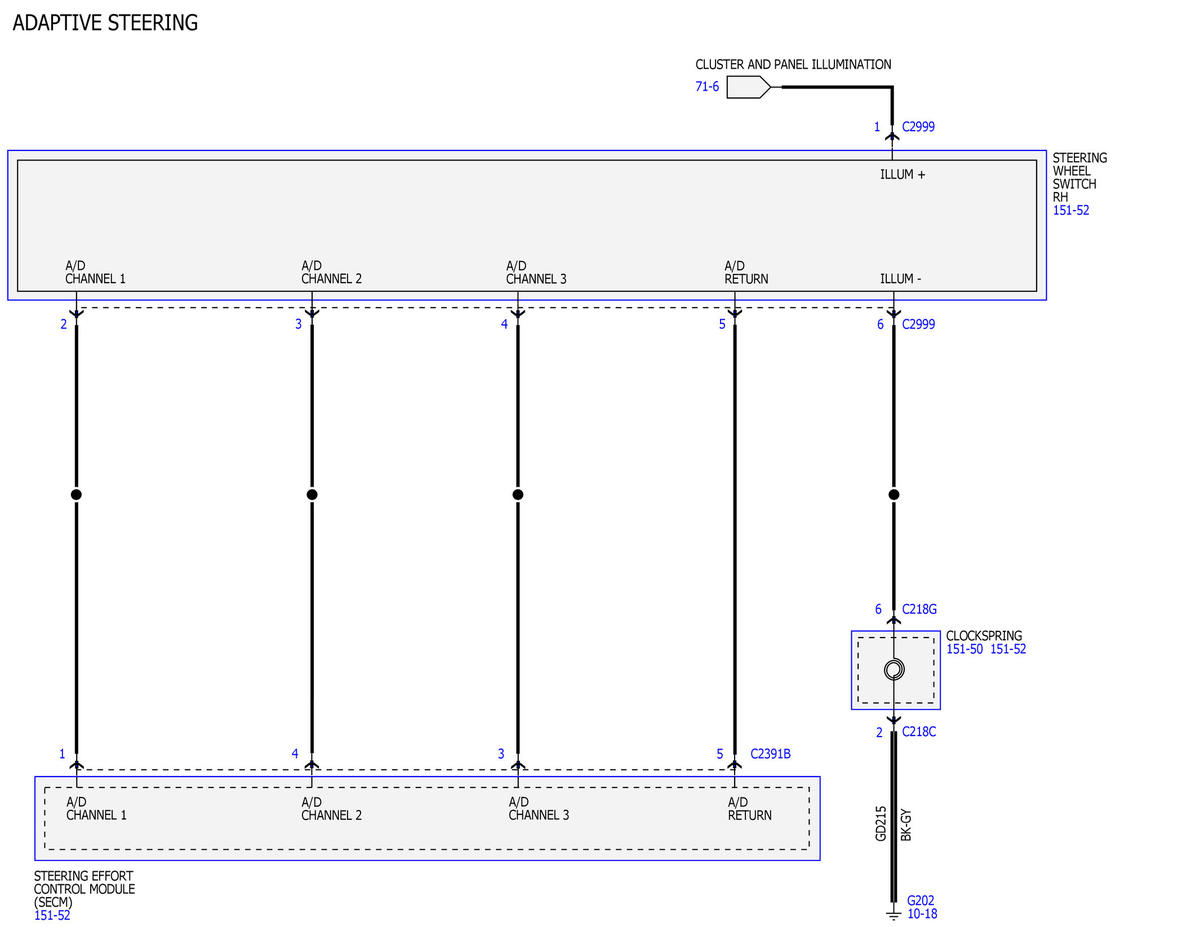

Fig 11: Instrument Cluster Wiring Diagram (11 Of 11)
GFDWR161649Courtesy of FORD MOTOR COMPANY
