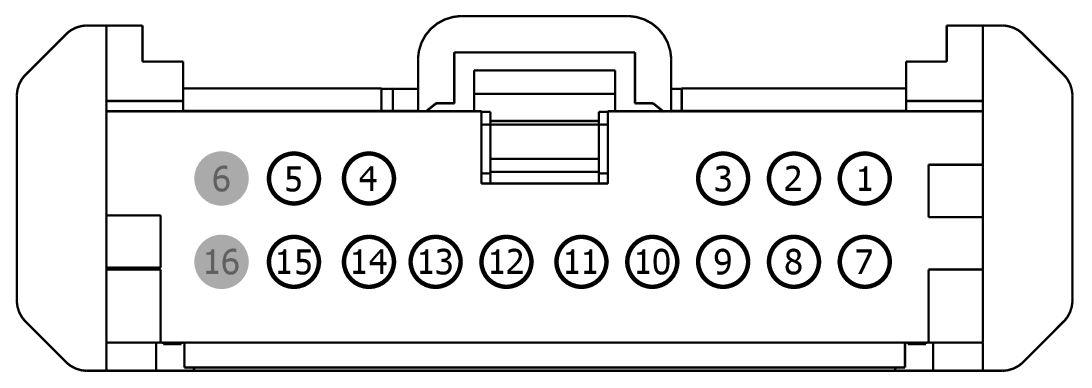

Connector End View C218B - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218B	CLOCKSPRING	BK	PIA	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CET43 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	N/A
2	CET42 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	N/A
3	RE472 (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SST-SIGRTN)	N/A
4	GD215 (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
5	CRH02 (*)	*	SWITCH - HORN	N/A
6	*	*	Not Used	N/A
7	LX103 (*)	*	A/D CHANNEL 1	N/A
8	LX104 (*)	*	A/D CHANNEL 2	N/A
9	RX101 (*)	*	RETURN LEFT	N/A
10	LX105 (*)	*	A/D CHANNEL 3	N/A
11	LX103 (*)	*	A/D CHANNEL 1	N/A
12	LX104 (*)	*	A/D CHANNEL 2	N/A
13	RX102 (*)	*	RETURN RIGHT	N/A
14	LX105 (*)	*	A/D CHANNEL 3	N/A
15	VLN04 (*)	*	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
16	*	*	Not Used	N/A
