Instrument Panel Cluster (IPC) Lens: Removal

  1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC)

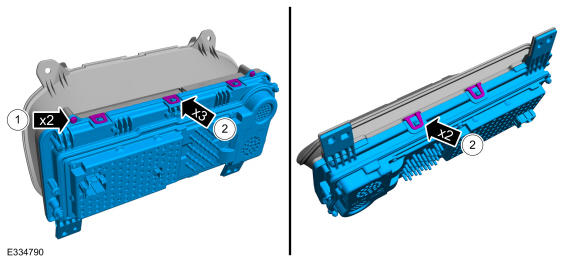

    1. Remove the screws.
    2. Release the tabs and remove the IPC.
GFD685460Courtesy of FORD MOTOR COMPANY
