Instrument Panel Cluster (IPC) Lens: Installation

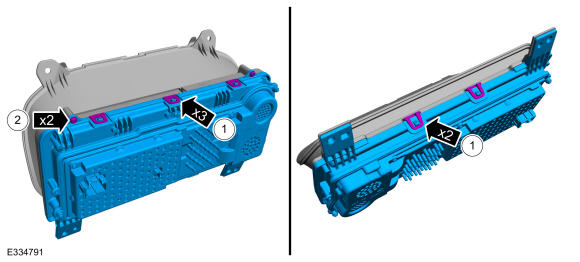

    1. Position the IPC lens and engage the locking tabs.
    2. Install the screws.

      Torque: 10 lb.in (1.1 Nm)

    GFD685461Courtesy of FORD MOTOR COMPANY
  2. Install the IPC. Refer to: Instrument Panel Cluster (IPC)
