Instrument Panel Cluster (IPC) - Overview: Overview
The IPC uses gauges, warning and informational indicators, RTT indicators, warning messages and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
The IPC provides a single display screen that contains the message center, RTT indication and virtual gauge displays.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, dedicated RTT displays and fixed locations for other RTT indicators and displays.

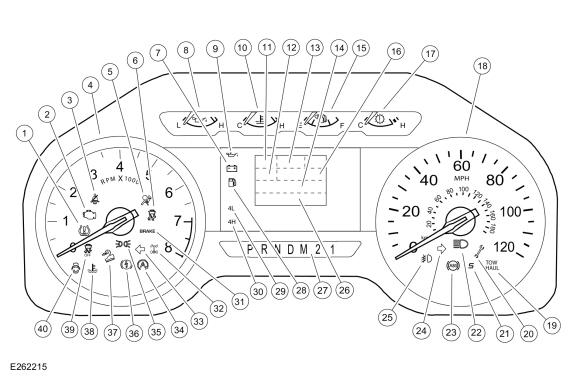

Base IPC, 4-Inch Display
Base IPC
NOTE:
The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | TPMS indicator |
| 2 | MIL |
| 3 | Seatbelt warning indicator |
| 4 | Tachometer |
| 5 | Airbag warning indicator |
| 6 | Stability-traction control indicator (sliding car icon) |
| 7 | Charging system warning indicator |
| 8 | Engine oil pressure gauge |
| 9 | Low oil pressure warning indicator |
| 10 | Engine temperature gauge |
| 11 | SelectShift® display |
| 12 | Cruise control RTT |
| 13 | Compass |
| 14 | Trip computer display area (may also use the cruise control display area as needed) |
| 15 | Fuel gauge |
| 16 | Cruise control and set speed display area (may also use the trip computer and odometer display areas as needed) |
| 17 | Transmission temperature gauge |
| 18 | Speedometer |
| 19 | Tow haul indicator |
| 20 | Powertrain malfunction (wrench) indicator |
| 21 | Sport mode indicator |
| 22 | High beam indicator |
| 23 | ABS indicator |
| 24 | RH turn indicator |
| 25 | Front fog lamp indicator |
| 26 | Odometer display area |
| 27 | PRNDL display |
| 28 | Low fuel indicator |
| 29 | 4x4 low indicator |
| 30 | 4x4 high indicator |
| 31 | Brake warning indicator (text, North America [shown], symbol, non-North America) |
| 32 | ELD indicator |
| 33 | LH turn indicator |
| 34 | Auto stop/start indicator |
| 35 | Lights on indicator |
| 36 | Electronic park brake indicator |
| 37 | Hill descent control indicator |
| 38 | Engine over-temperature warning indicator |
| 39 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 40 | Door ajar warning indicator |

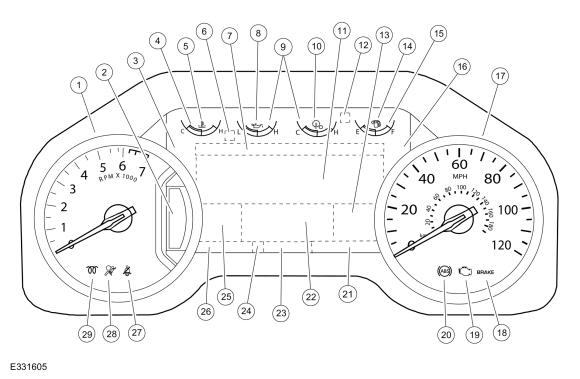

Mid-Level IPC, 8-Inch Display
Mid-Level IPC
NOTE:
The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Gear selection display |
| 3 | Compass display Rotating Reconfigurable Telltales (RTTs): LH turn RTT indicator Auto regeneration off (diesel) BLIS off Charging system Door ajar Engineering test (ET) mode Hazard - stop safely now (HEV) Hood ajar Hill descent ready Low engine oil pressure (when engine oil pressure gauge is not selected to display) Low washer fluid Powertrain malfunction (wrench) Power tailgate ajar Seatbelt (front and rear) Service interval (wrench) TPMS Water in fuel (diesel) |
| 4 | Engine temperature gauge (gas or diesel) Motor temperature gauge (HEV) |
| 5 | Engine over-temperature warning RTT indicator (gas or diesel) Motor over-temperature RTT indicator (HEV) |
| 6 | Forward collision warning RTT indicator |
| 7 | Message center menu/information display |
| 8 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 9 | Reconfigurable virtual gauges Engine oil pressure Transmission temperature Turbo boost Diesel Exhaust Fluid (DEF) level (diesel) |
| 10 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 11 | Information-on-demand display |
| 12 | Stability-traction control (sliding car icon) RTT indicator |
| 13 | Cruise control/adaptive cruise control set speed display Electric park brake RTT indicator One-pedal trail control RTT indicator Overspeed warning (Gulf Cooperative Countries [GCC]) RTT indicator Speed sign display |
| 14 | Low fuel RTT indicator |
| 15 | Fuel gauge |
| 16 | Outside air temperature display RH turn RTT indicator Electronic locking differential (eLocker) RTT indicator Four wheel drive RTT indicator (2H, 4H, 4L, 4A) Stability-traction control disabled (sliding car OFF icon) RTT indicator Trail turn assist RTT indicator |
| 17 | Speedometer |
| 18 | Brake warning RTT indicator |
| 19 | MIL |
| 20 | ABSRTT indicator |
| 21 | DTE display |
| 22 | Driver assistance display Adaptive cruise control display Cruise control/adaptive cruise control RTT indicator Lane centering aid display Lane keeping system display Trail control RTT indicator |
| 23 | PRNDM display |
| 24 | Drive mode RTT indicator Eco Sport Tow Haul Slippery Trail or Mud/Ruts (4WD only) Deep Snow/Sand (4WD only) Rock Crawl (4WD only) |
| 25 | Navigation display Reconfigurable Telltales (RTTs): Active front steering Auto high beam Auto hold Auto stop-start Front fog lamp High beam Lane keeping system Lane centering aid Lights on Ready to drive (HEV) Rear fog lamp (China) |
| 26 | Odometer display |
| 27 | Seatbelt warning RTT indicator |
| 28 | Airbag warning RTT indicator |
| 29 | Wait to start RTT indicator (diesel) |

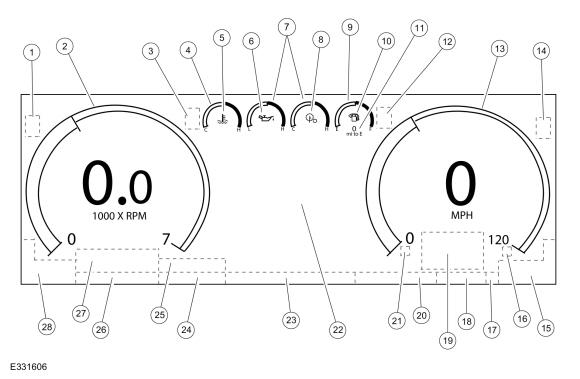

High-Level IPC, 12-Inch Display
High-Level IPC
NOTE:
The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | MIL |
| 2 | Virtual tachometer |
| 3 | LH turn RTT indicator Engine over-temperature warning RTT indicator (when temperature gauge is not selected to display) |
| 4 | Engine temperature gauge (gas or diesel) Motor temperature gauge (HEV) |
| 5 | Engine over-temperature warning RTT indicator (gas or diesel, when temperature gauge is selected to display) Motor over-temperature warning RTT indicator (HEV, when temperature gauge is selected to display) |
| 6 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 7 | Reconfigurable virtual gauges Diesel Exhaust Fluid (DEF) level (diesel) Engine oil pressure Transmission temperature Turbo boost |
| 8 | Rotating Reconfigurable Telltales (RTTs) (coincide with selected gauge) |
| 9 | Virtual fuel gauge |
| 10 | Low fuel level warning RTT indicator (when fuel gauge is selected) |
| 11 | DTE display |
| 12 | RH turn RTT indicator Low engine oil pressure warning RTT indicator (when engine oil pressure gauge is not selected to display) Low fuel level warning RTT indicator (when fuel gauge is not selected to display) |
| 13 | Virtual speedometer |
| 14 | Diesel Exhaust Fluid (DEF) level RTT indicator (diesel) Wait to start RTT indicator (diesel) |
| 15 | Rotating Reconfigurable Telltales (RTTs) Airbag Auto regeneration control (diesel) BLIS off Charging system Door ajar Engineering test (ET) mode Hazard - stop safely now (HEV) Hill descent ready Hood ajar Low washer fluid Powertrain malfunction (wrench) Power tailgate ajar Ready to drive (HEV) Service interval (wrench) TPMS Water in fuel (diesel) |
| 16 | Overspeed warning (Gulf Cooperative Countries [GCC]) RTT indicator |
| 17 | Seatbelt warning RTT indicator |
| 18 | Odometer display |
| 19 | Driver assistance display (displays when driver assist is turned on) Adaptive cruise control display Highway assist display Lane keeping system display Lane centering aid display |
| 20 | Compass display Auto stop-start RTT indicator Lane centering aid RTT indicator Lane keeping system RTT indicator One-pedal trail control RTT indicator |
| 21 | Cruise control/adaptive cruise control RTT indicator Trail control RTT indicator |
| 22 | Main menu display Information-on-demand display Driver assistance display (when information-on-demand is selected): Adaptive cruise control display Highway assist display Lane centering aid display Lane keeping system display |
| 23 | Audio selection display Drive mode selection display |
| 24 | Outside air temperature display Forward collision warning RTT indicator |
| 25 | ABSRTT indicator Auto hold RTT indicator |
| 26 | Progressive range select display |
| 27 | PRNDM display Active front steering RTT indicator Brake warning RTT indicator Electric park brake RTT indicator |
| 28 | Rotating Reconfigurable Telltales (RTTs): Auto/adaptive high beam Drive mode (Eco, Sport, Tow Haul, Slippery, Trail or Mud/Ruts (4WD), Deep Snow/Sand (4WD), Rock Crawl (4WD) Four wheel drive (2H, 4H, 4L, 4A) Front fog lamps High beam Lights on Rear fog lamp (China) ELD (eLocker) Stability-traction control (sliding car icon) Stability-traction control disabled (sliding car OFF icon) Trail turn assist |
