Parking Aid - Component Location

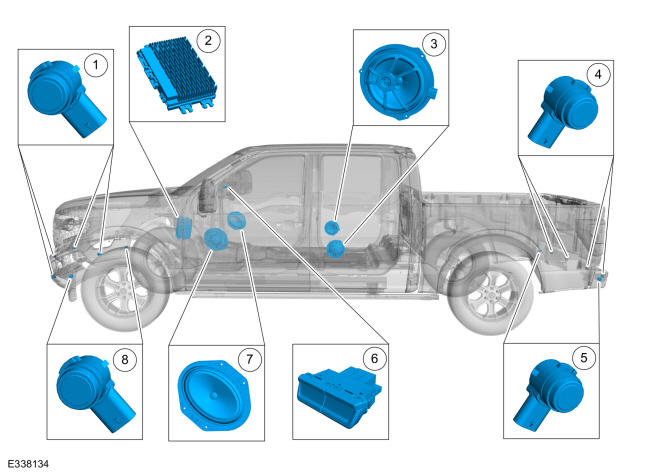

GFD685472Courtesy of FORD MOTOR COMPANY
Item Description
1 Front parking aid sensors
2 IPMA
3 Rear speakers
4 Rear parking aid sensors
5 Rear side sensors
6 Parking aid switch/active park assist switch
7 Front speakers
8 Front active park assist sensors
