Remote Brake Fluid Reservoir: Installation

  1. To install, reverse the removal procedure.

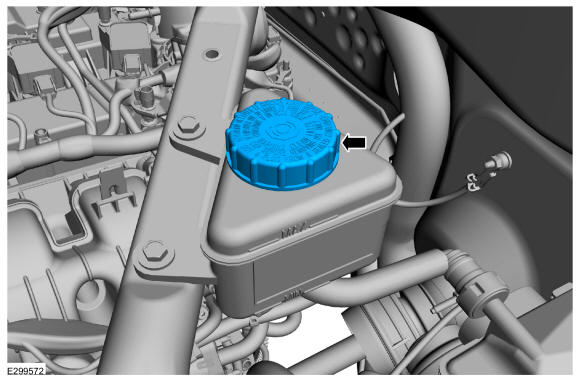

  2. Remove the remote brake fluid reservoir cap.
    GFD655431Courtesy of FORD MOTOR COMPANY

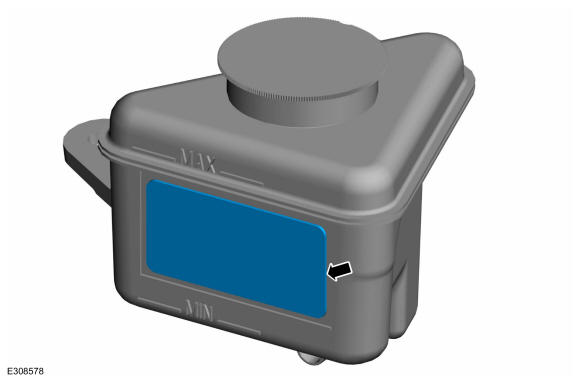

  3. If provided with the service kit. Replace the translation label.
    GFD655437Courtesy of FORD MOTOR COMPANY

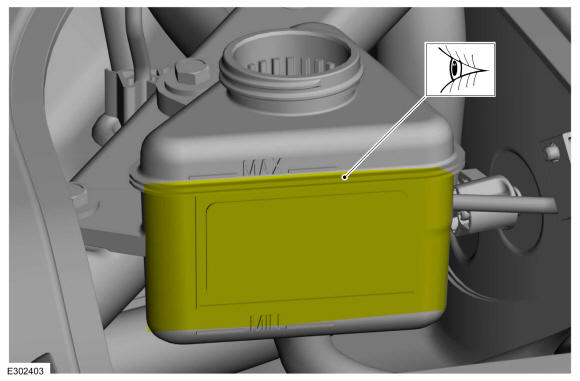

  4. Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .
GFD655432Courtesy of FORD MOTOR COMPANY
